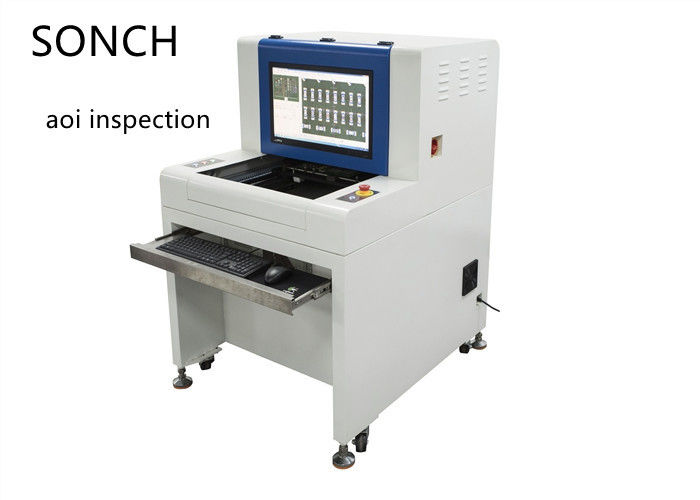

TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment

Large Image : TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	WANBO
Model Number:	X1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	discuss price
Packaging Details:	wooden box package
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Product Name:

Inspect PCB:

After Reflow Oven

Camera:

5 Megapixel High Definition Intelligent Industrial Camera

Power:

AC220V 50/60HZ

Highlight:

TCP IP auto optical inspection machine

megapixel lens auto optical inspection machine

servo motion system AOI inspection equipment

aoi tsukasa aoi yu

TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment 0

Test PCBA specification

PCBA Size range 50*50mm~430*330mm

Thickness range 0.5~5.0mm

Maximum PCBA Weight 3kg

PCBA cur vature ＜5mm Or 2% of diagonal length

PCBA Height Top:30mm； Bot:60mm

Check result output 22 Inch LCD,suppor t output OK/ng buff shunt

Extended Function

Bar code System:Automatic barcode recognition(1D&2D)

Remote Control:Remote operstion through TCP/IP

Ser ver Mode:With the central ser ver,multiple Aol data can be centralized and managed

SPC and Program Control:Recoed and analyze the test data in the whole process,and view the production status and quality analysis through remote control

Special funct:Multi connected board multi program detection,a/B side automatic switching program detection function

Teansmission mechanism

ConveyorFlow direction/ speed: The PCB is located on the Y-axis track .With the entr y and exit of the y-axis track .the entr yand exit speed is 2 seconds /PCs

Conveyor Height above ground: 900mm±30mm

Track width ad justment:Manual adjustment

Splint system:The automatic opening and clamping double-sided splint system can automatically correct the deformation sf PCB board

TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment 3

Imageacquisition and motion control system
1.Use a top-down shot structure
2.High definition 10 megapixel industrial lens
3.High precision ser vo motion system

TCP / IP Auto Optical Inspection Machine Megapixel Lens AOI Inspection Equipment 4
