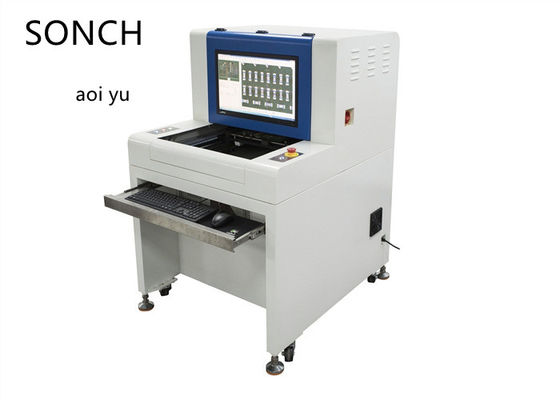

AC220V 50 / 60HZ 3D AOI Machine 22 Inch LCD Full Color CCD Camera

AC220V 50 / 60HZ 3D AOI Machine 22 Inch LCD Full Color CCD Camera
AC220V 50 / 60HZ 3D AOI Machine 22 Inch LCD Full Color CCD Camera

Large Image :  AC220V 50 / 60HZ 3D AOI Machine 22 Inch LCD Full Color CCD Camera Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WANBO
Model Number: X1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Product Name: AOI Inspect PCB: After Reflow Oven
Camera: Full Color CCD Power: AC220V 50/60HZ
Highlight:

AC220V 3D AOI machine

,

CCD Camera 3d aoi machine

3d aoi machine

AC220V 50 / 60HZ 3D AOI Machine 22 Inch LCD Full Color CCD Camera 0



3d aoi machine

SZ-X1 Product Specification

Imaging System Camera 5 megapixel high definition intelligent industrial camera
Camera resolution Standard configuration:15um/PixelFOV:38.0mm*30.0mm;Optional:20um,10um
Light source RRGB high gray LED light source


Test items Programming mode CAD data impor t automatically for component librar y

After reflux fuenace
Component: Wrong par ts,missing par ts,polarity,deviation,monument,reversal,damage,lc bending,doreign matter, etc
Solder joints:less tin,more tin,tin hole,bridging,tin coating,false tin,tin bead,etc
Minimum paet test Theoigh the resolution the minimum measuradle is 03015(01005)chip&0.3 pitch IC

After Wave Soldering Less tin,more tin,tin hole,false tin,bridge, tin psckage,tin beda,etc

AC220V 50 / 60HZ 3D AOI Machine 22 Inch LCD Full Color CCD Camera 1

Test PCBA specification PCBA Size range 50*50mm~430*330mm
Thickness range 0.5~5.0mm
Maximum PCBA Weight 3kg
PCBA cur vature ＜5mm Or 2% of diagonal length
PCBA Height Top:30mm； Bot:60mm
Check result output 22 Inch LCD,suppor t output OK/ng buff shunt


AC220V 50 / 60HZ 3D AOI Machine 22 Inch LCD Full Color CCD Camera 2
Extended Function Bar code System Automatic barcode recognition(1D&2D)
Remote Control
Remote operstion through TCP/IP
