5 Megapixel Camera Automatic Optical Inspection System AC220V 50 / 60HZ

All Products

SMT Assembly Machine (80)

SMT Pick And Place Machine (33)

Solder Paste Printer (12)

SMT Reflow Oven (13)

AOI Inspection Machine (76)

SMT Spare Parts (36)

Wave Soldering Machine (29)

SMT PCB Conveyor (27)

PCB Depaneling Machine (6)

Conformal Coating Machine (16)

Shoe Sole Cleaner Machine (8)

LED Aging Test Machine (1)

COF Bonding Machine (10)

I'm Online Chat Now

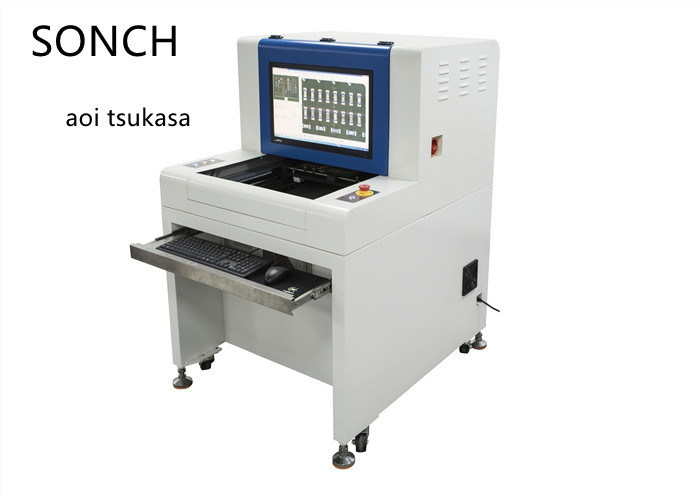

5 Megapixel Camera Automatic Optical Inspection System AC220V 50 / 60HZ

Large Image : 5 Megapixel Camera Automatic Optical Inspection System AC220V 50 / 60HZ Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	WANBO
Certification:	CE
Model Number:	X1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	discuss price
Packaging Details:	wooden box package
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Product Name:

Inspect PCB:

After Reflow Oven

Camera:

Full Color CCD

Power:

AC220V 50/60HZ

Highlight:

5 Megapixel automatic optical inspection system

Automatic Optical Inspection System AC220V

automatic optical inspection equipment

5 Megapixel Camera Automatic Optical Inspection System AC220V 50 / 60HZ 0

SZ-X1 Product Specification

Imaging System

Camera 5 megapixel high definition intelligent industrial camera

Camera resolution Standard configuration:15um/PixelFOV:38.0mm*30.0mm;Optional:20um,10um

Light source :RRGB high gray LED light source

Test items

Programming mode :CAD data impor t automatically for component library

After reflux fuenace :

Component: Wrong par ts,missing par ts,polarity,deviation,monument,reversal,damage,lc bending,doreign matter, etc

Solder joints:less tin,more tin,tin hole,bridging,tin coating,false tin,tin bead,etc

Minimum paet test: Theoigh the resolution the minimum measuradle is 03015(01005)chip&0.3 pitch IC

After Wave Soldering :Less tin,more tin,tin hole,false tin,bridge, tin psckage,tin beda,etc

Test PCBA specification

PCBA Size range :50*50mm~430*330mm

Thickness range :0.5~5.0mm

Maximum PCBA Weight :3kg

PCBA cur vature :＜5mm Or 2% of diagonal length

PCBA Height :Top:30mm； Bot:60mm

Check result output :22 Inch LCD,suppor t output OK/ng buff shunt

Extended Function

Bar code System :Automatic barcode recognition(1D&2D)

Remote Control :Remote operstion through TCP/IP

Ser ver Mode :With the central ser ver,multiple Aol data can be centralized and managed

SPC and Program Control :Recoed and analyze the test data in the whole process,and view the production status and quality analysis through remote control

Special funct :Multi connected board multi program detection,a/B side automatic switching program detection function

Imageacquisition and motion control system
Use a top-down shot structure
High definition 10 megapixel industrial lens
High precision ser vo motion system

It is suitable for testing in various production industries
5 Megapixel Camera Automatic Optical Inspection System AC220V 50 / 60HZ 1
Sonch is equipped with self-developed high brightness LED light source and powerful software algorithm,which can be used for various PCBA process detection requirements

5 Megapixel Camera Automatic Optical Inspection System AC220V 50 / 60HZ 2

Statistical process control(SPC)
Provide detailed repor ts of various production requirements

When the same error occurs more than onceitwill alarm automati- cally

Automatic calculation of weeklymonthly,quar terly cur ves,PPM char t, etc
