| Product Name: | AOI Testing Equipment | Model: | SZ-X1 |
|---|---|---|---|
| Camera: | Full Color Smart Digital Camera | Operating System: | Windows7 Professional |
| PCB Thickness Range: | 0.3 To 5 Mm | PCB Size Range: | 50×50mm(Min)～430×330mm(Max) |
| Highlight: | AOI Testing Surface Mount Equipment,Windows7 AOI testing equipment,digital camera AOI Testing Equipment |
||

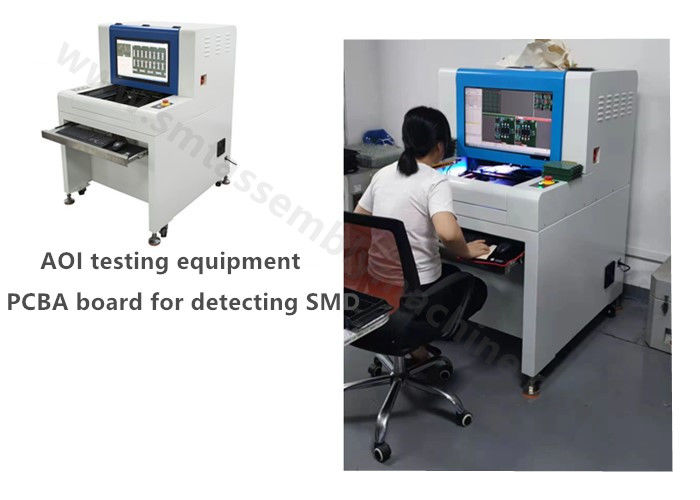

22 inch LCD monitor surface mount equipment AOI testing equipment Yamaha YSM20 Offline machine
1. Product introduction
1. AOI principle: Use modern optical principles and digital camera technology to take real-time shots of the detected objects, analyze and process the shot images through computers and special software, and automatically generate detection results.
2. AOI function: AOI effective detection rate: over 99% (manual detection rate: about 70%);
Reduce labor: 2-4 people/production line, high detection efficiency;
The SPC function can accurately count the process defects, which can be effectively controlled;
The stability is much higher than that of labor, long-term use, the comprehensive cost can be significantly reduced;
It can enhance the company's overall strength and effectively improve the company's overall competitiveness.
3. AOI advantages:
1) Checkable items:Panasonic placement machine
After DIP plug-in wave soldering: too much tin, little tin, tin hole, short circuit, pin not coming out, etc.
SMT: Missing parts, dislocation, wrong parts, reverse polarity, damage, pollution, less tin, more tin, short circuit, virtual welding, etc.
Function parameter
| Inspection board | Check the circuit board after SMT reflow oven. |
| Detection method | TOC algorithm, Histogram algorithm, Match algorithm, Short algorithm, OTHER algorithm, CREST algorithm, PIN algorithm and many other international leading algorithms, the system automatically sets its parameters according to different detection points. |
| camera | Full color smart digital camera. |
| Resolution / visual range / speed | Standard: 20μm/Pixel detection speed < 260ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manually write, automatic frame, CAD data import automatically corresponding component library. |
| remote control | Remote operation through the TCP 1 IP network, viewing, starting or stopping the machine, modifying the program, etc., anytime, anywhere. |
| Detectio |
