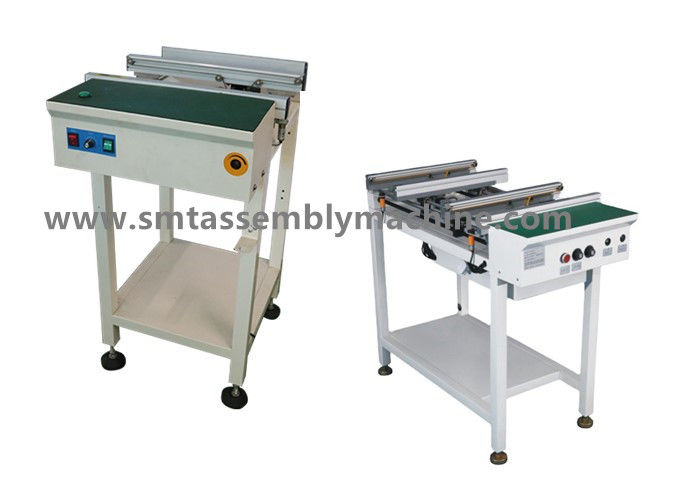

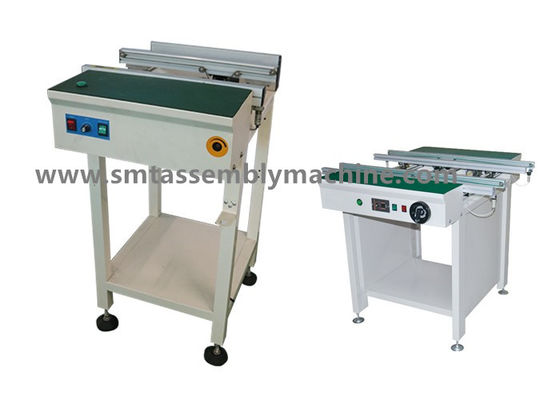

SMT Buffer Conveyor Green Belt Silver Aluminum Profile SMT Conveyor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMT 0.5M PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Usage: | SMT |
| Type: | SMT Machine Related Products, | Power(w): | 25W |
| High Light: | SMT Buffer Conveyor,25W SMT Conveyor,Aluminum Profile SMT Conveyor |
||
Buffer conveyor Green belt silver aluminum profile Key control SMT dock
SMT splice table transfer equipment for connection between SMT and AI lines YSM20
Product features
1. Filament rod adjusting width mechanism to ensure that the transport rails are parallel to each other.
2. Professional wear-resistant anti-static flat belt and special aluminum profile guide rail ensure smooth connection and smooth transportation.
3. Standard equipped with signal communication interface, can be connected with other equipment online.
4. Automatic manual two working modes, standard with anti-static working board.
5. Standard light stand and process cardboard are optional.
6. Speed regulation with electronic governor, transport speed 0-3M/Min steplessly adjustable.
Product features
It adopts professional wear-resistant and anti-static flat belt, standard equipped with signal communication interface,
and can be connected online with other equipment screw widening mechanism.
Special aluminum profile guide rail, there are two working modes of automatic manual, standard anti-static workbench plate,
speed regulation with electronic governor,
The transportation speed is infinitely adjustable from 0-3M/min to ensure smooth connection, smooth transportation,
and parallel transportation rails.
Technical parameters
| Machine model |
Substrate size (L*W*H; mm) |
Machine dimensions (L*W*H; mm) |
Fuselage weight (kg) |
|
| Monorail | Y-050BC | 50*50～400*350(mm) | 500*680*900(mm) | 55 |
| Y-080BC | 50*50～600*350(mm) | 800*680*900(mm) | 75 | |
| Y-100BC | 50*50～800*350(mm) | 1000*680*900(mm) | 90 | |
| Y-150BC | 50*50～1300*350(mm) | 1500*680*900(mm) | 120 | |
| Dual | Y-050DC | 50*50～400*350(mm)*2 | 500*1170*900(mm) | 80 |
| Y-080DC | 50*50～600*350(mm)*2 | 800*1170*900(mm) | 110 | |
| Y-100DC | 50*50～800*350(mm)*2 | 1000*1170*900(mm) | 130 | |
| Y-150DC | 50*50～1300*350(mm)*2 | 1500*1170*900(mm) | 170 |
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
The company distributes and retails SMT equipment and accessories, supplying Samsung placement machines, JUKI placement machines,
FUJI placement machines, YAMAHA placement machines, Panasonic placement machines,
SANYO, SONY, PHILIPS, HITACHI, GSM, MIRAI, IPULSE, CASIO, EVEST, UZUKI, CHINA PLACEMENT MACHINE,
SPECIAL CUSTOMIZATION AND OTHER MECHANICAL EQUIPMENT AND ACCESSORIES.
