| Product Name: | Smt PCB Conveyor | Power Supply: | AC100-230V, 50Hz |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Width: | 0-350mm |
| Conveyor Type: | Round Belt Or Flat Belt | Conveyor Speed: | 0.5-10 M/min |
| Highlight: | Splicing Table SMT Conveyor,Rubber Dock SMT Conveyor |
||

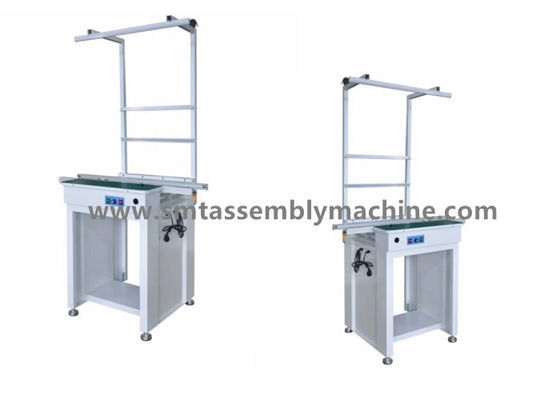

Use anti-static rubber SMT dock 0.5m 0.6m 1.2m Splicing table with light stand
Smd mounting machine 0.5m 0.6m 1m 1.2m 1.5m SMT dock Length optional dock
PCB conveyor, smt pcb conveyor belt with lamp, adjustable width conveyor
Product name: smt pcb conveyor, Adjustable inline conveyor for smt line

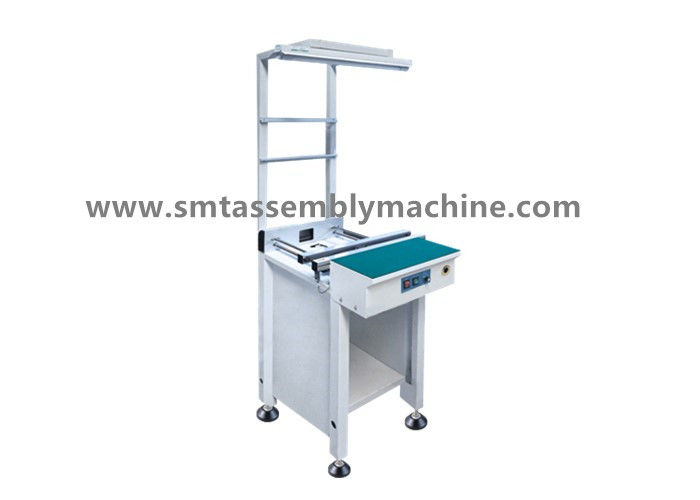

Splicing table with light stand
Features
1.Modular design
2. Sturdy design improves stability
3. Ergonomic design makes the arm less fatigued
4. Smooth and parallel width adjustment (filament rod)
5. Optional circuit board detection mode
6. Customized machine length according to customer requirements
7. Variable speed control
8. Use anti-static rubber
9. Compatible with SMEMA interface
Technical parameters
Translated with www.DeepL.com/Translator (free version)
| Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
| Conveyor Type | Round belt or flat belt |
| Conveyor speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electrical load | Max. 100 volts A |
| Conveyor height | 900±20 (or user specified) |
| Conveyor direction | Left→right or right→left |
Specification parameters
| Model Number |
A-50A/FCA-60A A-80A/FCA-100A |
A-50B/FCA-60B A-80B/FCA-100B |
A-50AL/FCA-60AL A-80AL/FCA-100AL |
| Circuit board size | 50*50-460*350 | 50*50-460*350 | 50*50-460*350 |
| Dimension | 1000*695*910 | 1000*695*1850 | 500*695*1850 |
| Weight | 60kg | 110kg | 60kg |
How it works:
Machine into the board and rear machine board signal, three photoelectric press the front and rear board and the middle stop, detection function, after the detection has PASS control button to decide to release (manual), but also equipped with automatic release function button, you can choose automatic / manual operation, according to the actual production needs to select the operation, the flow of the plate can be freely adjusted. The humanized design of this machine improves efficiency and reduces manpower waste for enterprises, saving unnecessary investment.
Product features
1. Screw widening mechanism to ensure that the transport rails are parallel to each other.
2. Professional wear-resistant and anti-static flat belt and special aluminum profile guide rail are adopted to ensure smooth connection and smooth transportation.
3. Standard equipped with signal communication interface, can be connected with other devices online.
4. There are two working modes of automatic manual, and the standard anti-static workbench plate is equipped.
5. Optional standard light stand and process cardboard.
6. Use electronic governor to adjust the speed, the transportation speed is 0-3M/min steplessly adjustable.
Control Panel Description
The FINISH button does not have self-locking, and each press indicates that the inspection is complete,
The PCB board passes and continues to run.
The PASS/CHECK button is not pressed
PASS PCB board does not need to be checked, automatically passed; Press
CHECK means that the PCB board needs manual inspection and needs to be used with FINISH.
POWER is the power switch, pressed to power on.
LIGHT is a lighting switch.
