Product Details:
Payment & Shipping Terms:
|
| Product Name: | Smt PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Board Width: | 350mm |
| Shipping Speed: | 0-3M/Min (arbitrary Adjustment) | Working Mode: | Manual / Automatic Two Ways |
| Highlight: | Flat Belt SMT PCB Conveyor,Wear Resistant SMT PCB Conveyor |
||

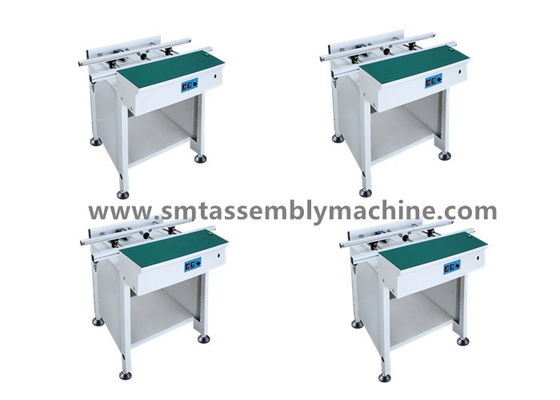

Monorail Splicing Table 0.5m0.6m1m1.2m1.5m Wear-resistant anti-static flat belt
White SMT splicing table automatic control method, press LIGHT switch lighting
Transfer the PCB board 0.5m 0.6m 1m1.2m1.5 Splice table with light stand
Docking station 0.5m0.6m1m1.2m1.5mSplicing table with light stand screw width
Use anti-static rubber SMT dock 0.5m 0.6m 1.2m Splicing table with light stand
Smd mounting machine 0.5m 0.6m 1m 1.2m 1.5m SMT dock Length optional dock
PCB conveyor, smt pcb conveyor belt with lamp, adjustable width conveyor

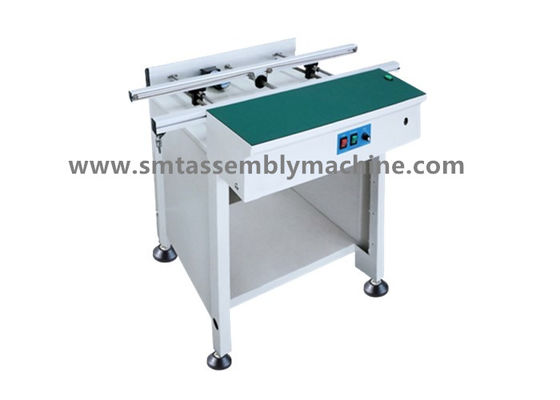

Product name: smt pcb conveyor, Adjustable inline conveyor for smt line
Features
1.Modular design
2. Sturdy design improves stability
3. Ergonomic design makes the arm less fatigued
4. Smooth and parallel width adjustment (screw bar)
5. Optional circuit board detection mode
6. Customized machine length according to customer requirements
7. Variable speed control
8. Anti-static rubber is used
9. Compatible with SMEMA interface
Technical parameters
| Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
| Conveyor Type | Round belt or flat belt |
| Conveyor speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electrical load | Max. 100 volts A |
| Conveyor height | 900±20 (or user specified) |
| Conveyor direction | Left→right or right→left |
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
Translated with www.DeepL.com/Translator (free version)
The width of all splicing tables is 650MM and the height is 900MM adjustable.
The total height with light stand is 1850MM adjustable.
SMT chip attaching table (various lengths can be customized)
The company distributes and retails SMT equipment and accessories, supplying Samsung placement machines, JUKI placement machines,
FUJI placement machines, YAMAHA placement machines, Panasonic placement machines,
SANYO, SONY, PHILIPS, HITACHI, GSM, MIRAI, IPULSE, CASIO, EVEST, UZUKI, CHINA PLACEMENT MACHINE,
SPECIAL CUSTOMIZATION AND OTHER MECHANICAL EQUIPMENT AND ACCESSORIES.
