Product Details:
Payment & Shipping Terms:
|
| Product Name: | Smt PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Board Width: | 55--350mm |
| Shipping Speed: | 0-2.7M/Min (arbitrary Adjustment) | Working Mode: | Manual OR Automatic |
| Highlight: | Aluminum Rail SMT PCB Conveyor,Splicing Table SMT PCB Conveyor |
||

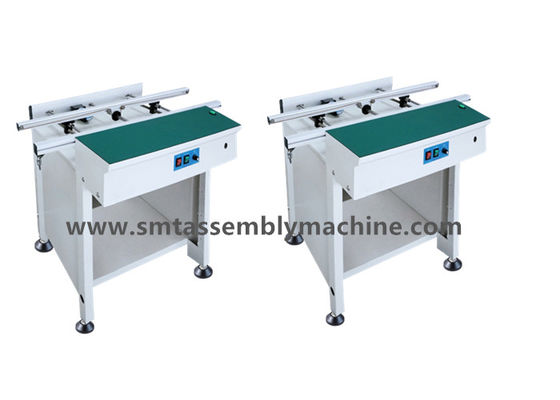

White SMT splicing table 0.5m 0.6m 1m with aluminum profile rail Panasonic CM602
SMT printed circuit board conveyor can transport left→right or right→left YSM10
Monorail Splicing Table 0.5m0.6m1m1.2m1.5m Wear-resistant anti-static flat belt
White SMT splicing table automatic control method, press LIGHT switch lighting
Features
1.Modular design
2. Sturdy design improves stability
3. Ergonomic design makes the arm less fatigued
4. Smooth and parallel width adjustment (screw bar)
5. Optional circuit board detection mode
6. Customized machine length according to customer requirements
7. Variable speed control
8. Anti-static rubber is used
9. Compatible with SMEMA interface
Technical parameters
| Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
| Conveyor Type | Round belt or flat belt |
| Conveyor speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electrical load | Max. 100 volts A |
| Conveyor height | 900±20 (or user specified) |
| Conveyor direction | Left→right or right→left |
SMT splicing table operation step by step instructions
Adjust the speed of belt operation according to the speed of front and back splicing.
1,SMT splicing table automatic control mode
a Press the POWER button.
b Press the LIGHT button.
c Press the PASS/CHECK button.
2,SMT splicing table manual control mode
a. Press POWER button; b. Press LIGHT button; c. Press PASS/CHECK button.
b. Press the LIGHT button.
c. When the inspection is finished, press the FINISH button.
Round and flat belts are available as standard flat belts
The corresponding track length
0.5 m track dock
0.8 m track dock
1 meter track dock
1.2 m rail dock
1.5 m track dock
New function: direct change of transport direction by pressing the button, standard left-to-right, button pressed: right-to-left.
All signals change with the direction of transportation, eliminating the need to change complex routes.
SMT dock operation step process
The role of SMT docking station is to connect between SMT production lines.
PCB buffering, inspection, testing or manual insertion of electronic components can also be used.
The width of all splicing tables is 650MM and the height is 900MM adjustable.
The total height with light stand is 1850MM adjustable.

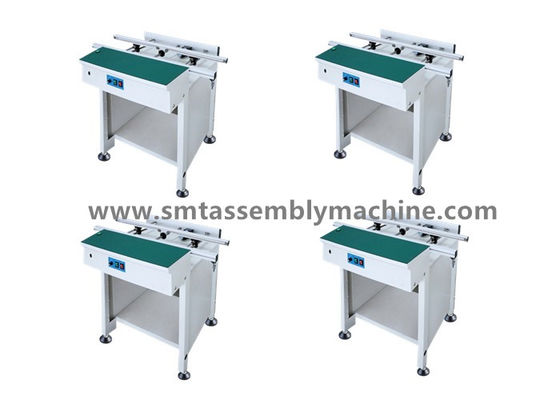

SMT chip attaching table (various lengths can be customized)
