Product Name: | Smt PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
---|---|---|---|
Conveyor Height: | 900±20 (or User Specified) | Board Width: | 55--350mm Interval |
Shipping Speed: | 0-2.7M/Min | Working Mode: | Manual |
High Light: | transfer table SMT Conveyor,Docking presses SMT Conveyor |

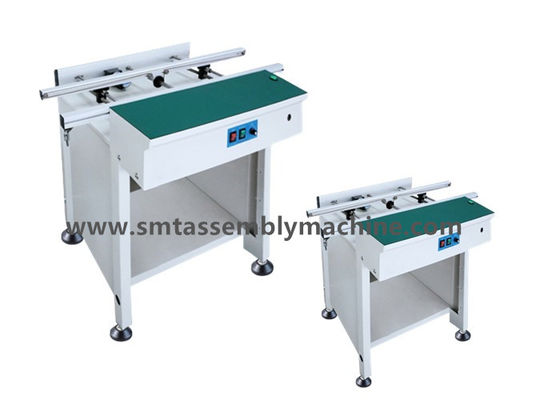

SMT transfer table 0.6m 1.5m with signal communication interface Docking presses
White SMT splicing table 0.5m 0.6m 1m with aluminum profile rail Panasonic CM602
Features
1.Modular design
2. Sturdy design improves stability
3. Ergonomic design makes the arm less fatigued
4. Smooth and parallel width adjustment (screw bar)
5. Optional circuit board detection mode
6. Customized machine length according to customer requirements
7. Variable speed control
8. Anti-static rubber is used
9. Compatible with SMEMA interface
Technical parameters
Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
Conveyor Type | Round belt or flat belt |
Conveyor speed | 0.5-20 m/min or user specified |
Power supply | 100-230V AC (user specified), single phase |
Electrical load | Max. 100 volts A |
Conveyor height | 900±20 (or user specified) |
Conveyor direction | Left→right or right→left |
SMT splicing table operation step by step instructions
Adjust the speed of belt operation according to the speed of front and back splicing.
1,SMT splicing table automatic control mode
a Press the POWER button.
b Press the LIGHT button.
c Press the PASS/CHECK button.
2,SMT splicing table manual control mode
a. Press POWER button; b. Press LIGHT button; c. Press PASS/CHECK button.
b. Press the LIGHT button.
c. When the inspection is finished, press the FINISH button.
New function: direct change of transport direction by pressing the button, standard left-to-right, button pressed: right-to-left.
All signals change with the direction of transportation, eliminating the need to change complex routes.
SMT dock operation step process
SMT splicing table operation precautions
1,Ensure that the transport part, belt, pulley and transport guide are free of foreign matter to ensure smooth and smooth transport.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
The role of SMT docking station is to connect between SMT production lines.
PCB buffering, inspection, testing or manual insertion of electronic components can also be used.
The width of all splicing tables is 650MM and the height is 900MM adjustable.
The total height with light stand is 1850MM adjustable.

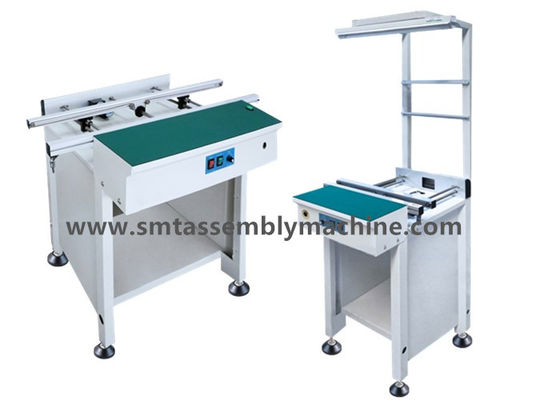

SMT chip attaching table (various lengths can be customized)
