| Product Name: | Smt PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Guide Rail: | Aluminum Alloy |
| SSpeed Control: | Use Electronic Governor | Communication Interface: | There Are |
| Highlight: | Electronic governor SMT Conveyor,3M/Min SMT Conveyor |
||

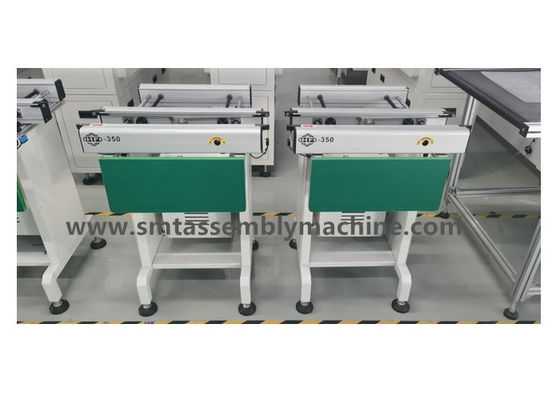

SMT transfer table transfer PCB transport speed 0-3M/Min steplessly adjustable
Power 25W SMT transfer board transfer table material aluminum profile green belt
SMT transfer table 0.6m 1.5m with signal communication interface Docking presses

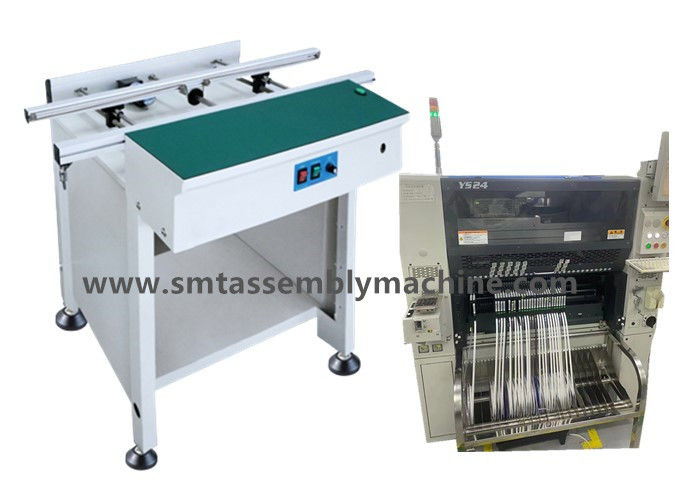

White SMT splicing table 0.5m 0.6m 1m with aluminum profile rail Panasonic CM602
Features
1.Modular design
2. Sturdy design improves stability
3. Ergonomic design makes the arm less fatigued
4. Smooth and parallel width adjustment (screw bar)
5. Optional circuit board detection mode
6. Customized machine length according to customer requirements
7. Variable speed control
8. Anti-static rubber is used
9. Compatible with SMEMA interface
The width of all splicing tables is 650MM and the height is 900MM adjustable.
The total height with light stand is 1850MM adjustable.
SMT chip attaching table (various lengths can be customized)
Technical parameters
| Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
| Conveyor Type | Round belt or flat belt |
| Conveyor speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electrical load | Max. 100 volts A |
| Conveyor height | 900±20 (or user specified) |
| Conveyor direction | Left→right or right→left |
Specification parameters
| Model Number |
A-50A/FCA-60A A-80A/FCA-100A |
A-50B/FCA-60B A-80B/FCA-100B |
A-50AL/FCA-60AL A-80AL/FCA-100AL |
| Circuit board size | 50*50-460*350 | 50*50-460*350 | 50*50-460*350 |
| Dimension | 1000*695*910 | 1000*695*1850 | 500*695*1850 |
| Weight | 60kg | 110kg | 60kg |
SMT splicing table operation process
Check before powering on the smt splicing table
1,Check whether the supply power line is broken or not.
2,Check if the equipment has good grounding.
3,Check whether the control button is reset.
4,Check whether the width of the guide rail is suitable.
5,Check whether the belt is loose.
6,No abnormality above can start the machine to prepare for operation.
SMT splicing table operation steps
Adjust the speed of belt operation according to the speed of front and back splicing.
1,SMT splicing table automatic control mode
a Press the POWER button.
b Press the LIGHT button.
c Press the PASS/CHECK button.
2,SMT splicing table manual control mode
a. Press POWER button; b. Press LIGHT button; c. Press PASS/CHECK button.
b. Press the LIGHT button.
c. When the inspection is finished, press the FINISH button.
3,Press POWER button to turn off the machine
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
