| Product Name: | Smt PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Guide Rail: | Profile Aluminum Alloy |
| SSpeed Control: | Electronic Speed Control | Working Mode: | Manual, Automatic |
| Highlight: | Automatic SMT PCB Conveyor,Plate Adapter SMT PCB Conveyor |
||

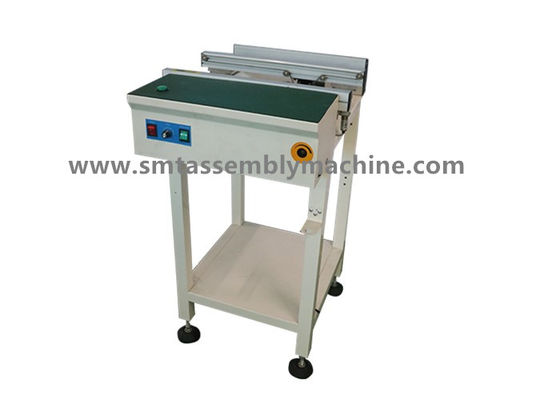

Plate adapter with anti-static work surface as standard SMT board loading machine SMT PCB Conveyor
SMT transfer table transfer PCB transport speed 0-3M/Min steplessly adjustable
Power 25W SMT transfer board transfer table material aluminum profile green belt
SMT transfer table 0.6m 1.5m with signal communication interface Docking presses
White SMT splicing table 0.5m 0.6m 1m with aluminum profile rail Panasonic CM602
Plate adapter
Peculiarity:
This equipment is suitable for transmission and detection in SMT production lines
1. Self-developed control system, stable and reliable
2. The transmission adopts stepper motor, which has stable performance and is easy to use.
3. Internal counterweight design to improve machine stability.
4. Adopt special customized SEMSOR, accurate and stable.
5. Adopt imported ball screw to widen, smooth and durable.
6.Variable transmission adjustment, easy and fast to use.
7. Compatible SMEWA interface.

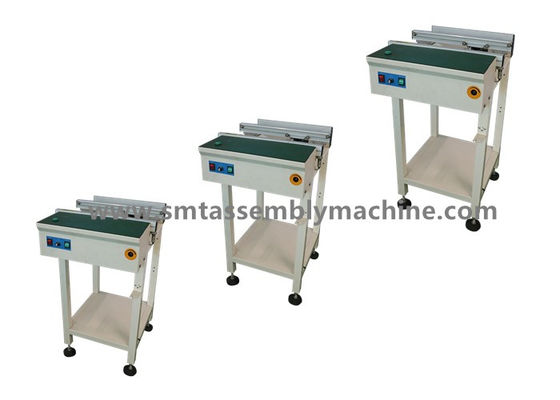

Technical parameters
| Machine model |
Substrate size (L*W*H; mm) |
Machine dimensions (L*W*H; mm) |
Fuselage weight (kg) |
|
| Monorail | Y-050BC | 50*50～400*350(mm) | 500*680*900(mm) | 55 |
| Y-080BC | 50*50～600*350(mm) | 800*680*900(mm) | 75 | |
| Y-100BC | 50*50～800*350(mm) | 1000*680*900(mm) | 90 | |
| Y-150BC | 50*50～1300*350(mm) | 1500*680*900(mm) | 120 | |
| Dual | Y-050DC | 50*50～400*350(mm)*2 | 500*1170*900(mm) | 80 |
| Y-080DC | 50*50～600*350(mm)*2 | 800*1170*900(mm) | 110 | |
| Y-100DC | 50*50～800*350(mm)*2 | 1000*1170*900(mm) | 130 | |
| Y-150DC | 50*50～1300*350(mm)*2 | 1500*1170*900(mm) | 170 |
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
