| Product Name: | Smt PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Name: | SMT Buffer Conveyor |
| Condition: | Original | Warranty: | One Year |
| Highlight: | Robust SMT Conveyor,AI Lines SMT Conveyor |
||

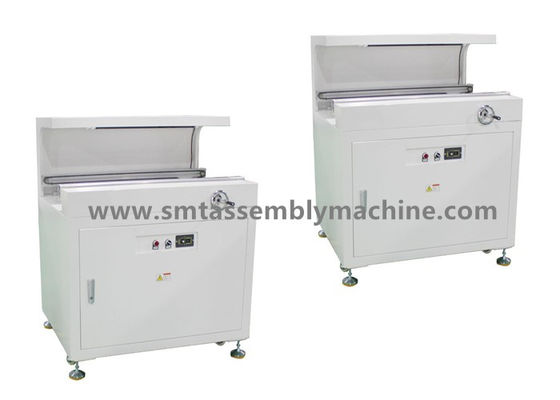

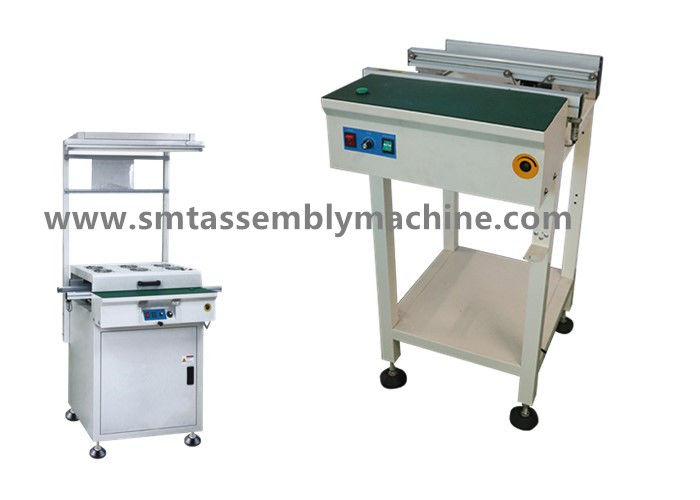

SMT splice table transfer equipment for connection between SMT and AI lines YSM20
peculiarity
1.Modular design
2.Robust design improves stability
3.Ergonomic design, so that the arm is not easy to fatigue
4.Smooth parallel width adjustment (lead screw)
5.Optional circuit board detection mode
6.Customize machine length according to customer requirements
7.Variable speed control
8.Anti-static rubber skin is adopted
9.Compatible with SMEMA interface
Round and flat belts are available as standard with flat belts
Corresponding track length
0.5m track connection table
0.8 m track connection table
1m rail connection table
1.2 m track connection
1.5m rail connection table
The 0.5m rail splicing table changes the transport direction directly by pressing the button, the standard is left to right,
press the button for: right to left.
All signals are changed with the transport direction, no longer need to change the complex lines;
SMT splicing table is used for the connection between SMT production lines.
It can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.
Technical parameters
| Machine model |
Substrate size (L*W*H; mm) |
Machine dimensions (L*W*H; mm) |
Fuselage weight (kg) |
|
| Monorail | Y-050BC | 50*50～400*350(mm) | 500*680*900(mm) | 55 |
| Y-080BC | 50*50～600*350(mm) | 800*680*900(mm) | 75 | |
| Y-100BC | 50*50～800*350(mm) | 1000*680*900(mm) | 90 | |
| Y-150BC | 50*50～1300*350(mm) | 1500*680*900(mm) | 120 | |
| Dual | Y-050DC | 50*50～400*350(mm)*2 | 500*1170*900(mm) | 80 |
| Y-080DC | 50*50～600*350(mm)*2 | 800*1170*900(mm) | 110 | |
| Y-100DC | 50*50～800*350(mm)*2 | 1000*1170*900(mm) | 130 | |
| Y-150DC | 50*50～1300*350(mm)*2 | 1500*1170*900(mm) | 170 |
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
The company distributes and retails SMT equipment and accessories, supplying Samsung placement machines, JUKI placement machines,
FUJI placement machines, YAMAHA placement machines, Panasonic placement machines,
SANYO, SONY, PHILIPS, HITACHI, GSM, MIRAI, IPULSE, CASIO, EVEST, UZUKI, CHINA PLACEMENT MACHINE,
SPECIAL CUSTOMIZATION AND OTHER MECHANICAL EQUIPMENT AND ACCESSORIES.
