Product Details:
Payment & Shipping Terms:
|

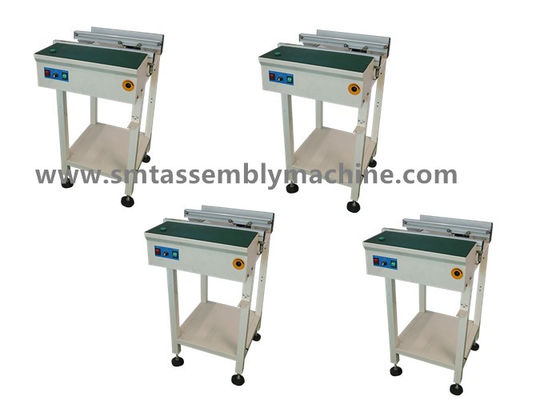

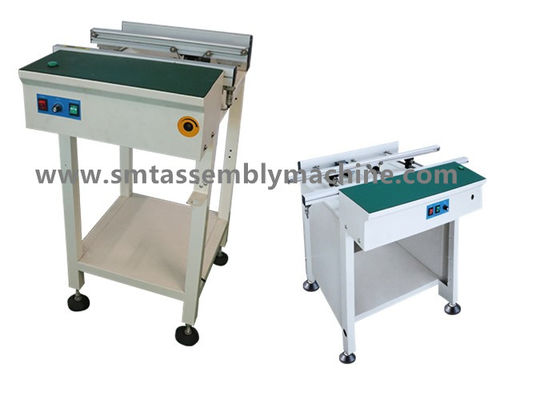

| Product Name: | Smt PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Name: | PCB Conveyor With Cooling Fan |
| Condition: | Brand-new | Warranty: | 365 Days |
| Highlight: | 900mm Height SMT PCB Conveyor,QC Certified SMT PCB Conveyor |
||
Customized SMT patching table length according to customer requirements JUKI2080
Special connection table is required between printing machine and Yamaha bonder
0.8m rail SMT anti-static splice table FINISH button without self-locking
Pick and place machine SMT anti-static splice table 0.5m1.2m1.5m Splicing table
SMT splice table transfer equipment for connection between SMT and AI lines YSM20
peculiarity
1.Modular design
2.Robust design improves stability
3.Ergonomic design, so that the arm is not easy to fatigue
4.Smooth parallel width adjustment (lead screw)
5.Optional circuit board detection mode
6.Customize machine length according to customer requirements
7.Variable speed control
8.Anti-static rubber skin is adopted
9.Compatible with SMEMA interface
0.5m, 0.8m, 1m rail splicing table directly change the direction of transport through the button, the standard is left to right,
the button is pressed: right to left.
All signals change with the direction of transport, no longer need to change the complex lines;
SMT splicing table is used for the connection between SMT production lines.
It can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.
Before powering on the smt splicing table, check whether the supply power line is damaged, whether there is good grounding,
whether the control button is reset, whether the width of the guide is appropriate, whether the belt is loose,
whether there is no damage to the above.
If there is no abnormality above, the machine can be turned on and ready for operation.
Technical parameters
| Machine model |
Substrate size (L*W*H; mm) |
Machine dimensions (L*W*H; mm) |
Fuselage weight (kg) |
|
| Monorail | Y-050BC | 50*50～400*350(mm) | 500*680*900(mm) | 55 |
| Y-080BC | 50*50～600*350(mm) | 800*680*900(mm) | 75 | |
| Y-100BC | 50*50～800*350(mm) | 1000*680*900(mm) | 90 | |
| Y-150BC | 50*50～1300*350(mm) | 1500*680*900(mm) | 120 | |
| Dual | Y-050DC | 50*50～400*350(mm)*2 | 500*1170*900(mm) | 80 |
| Y-080DC | 50*50～600*350(mm)*2 | 800*1170*900(mm) | 110 | |
| Y-100DC | 50*50～800*350(mm)*2 | 1000*1170*900(mm) | 130 | |
| Y-150DC | 50*50～1300*350(mm)*2 | 1500*1170*900(mm) | 170 |
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
