SZ-X3 AOI Inspection Machine Rice Cooker PCBA Board Yamaha YS20
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Lead-free Wave Soldering After |
| Detection Method: | Multi-panel Inspection | Detection Coverage: | Broken And Floating Components |
| High Light: | Rice Cooker AOI Inspection Machine,PCBA Board AOI Inspection Machine,Offline automated optical inspection equipment |
||

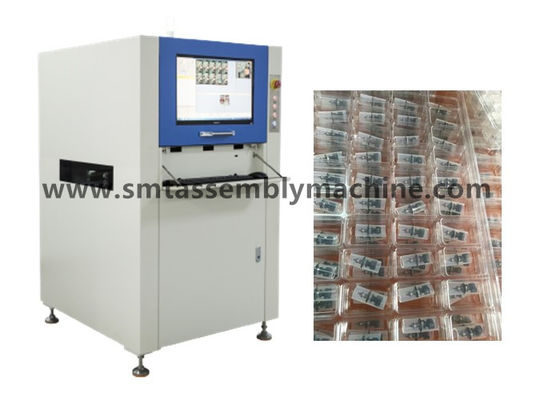

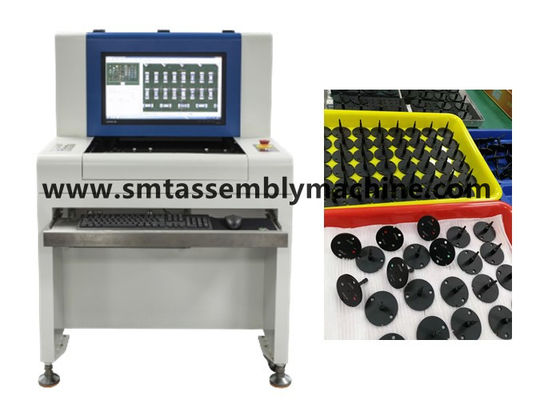

AOI Inspection Machine SZ-X3 Inspection Rice Cooker PCBA Board Yamaha YS20
Yamaha YS10 SMT machine after AOI SZ-X3 detects mobile phone charger power strip
Yamaha YS24 led pick and place machine AOI SZ-X3 vision Detect keyboard board
Yamaha YS12 SMT machine Offline AOI SZ-X3 detection bluetooth earphone board
SMT Automatic Pick And Place Machine AOI SZ-X3 detection mouse component board
JUKI pick and place smd machine Detector AOI SZ-X3 material on silver rail
AOI Inspection Machine SZ-X3 detects positive and negative polarity Welding

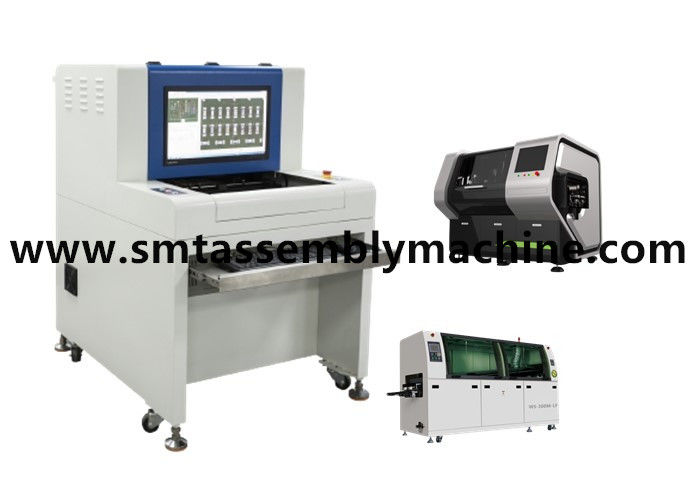

DIP line consists of plug-in machines wave soldering AOI main equipment etc
Plug-in machine production DIP offline AOI SZ-X3 check PCB size Max430×330mm
The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.
Equipment separation line machine and online machine.
Offline models: X1 detection patch products, X3 detection plug-in products;
Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.
AOI function: AOI effective detection rate: over 99% (manual detection rate: about 70%);
Reduce labor: 2-4 people per production line, high detection efficiency;
Through the SPC function, process defects can be accurately counted and effectively controlled;
The stability is much higher than manual labor, and long-term use can significantly reduce the overall cost;
It can enhance the comprehensive strength of the company and effectively enhance its overall competitiveness.
The approximate classic models of JUKI SMT machines are as follows:
FX-1 FX-3 FX-3R KE-750 KE-760 KE-2010 KE-2020 KE-2030 KE-2050 KE-2060
KE-2070 KE-2080 RX-6 RX-
7 FX-3RL FX-2 KE-3010 KE-3020 JX-100 JX-200 JX-30OLED JX-35OLED RS-1 RS-1R RX-7R JM-10 JM-20 JM-100；
JUKI Full Series SMT Machine KJ Series
KE series KE-730/750/760, KE-2010/2020/2030/2050/2060/2070/2080 KE-3010/3020
The FX series FX-1/FX-2/FX-3 is a high-speed machine
RX-6 RX-7 FX-3RL
JX series LED special placement machine JX-100 JX-200 JX-300LED JX-350LED
KD-2077 high-speed intelligent SMT machine RS-1
JUKI KJ-01 KJ-02 KJ01 KJ02
SZ-X1/X3 Technical parameters of offline AOI optical inspection equipment
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Remote control | Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| PCB size range | 50×50mm(Min)～430×330mm(Max) |
| PCB thickness range | 0.3 to 5 mm |
| PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
| Maximum PCB weight | 3KG |
| PCB flex | <5mm or 2% of PCB diagonal length |
| PCB top and bottom net height | PCB Top Side: 30 mm PCB Bottom Side: 60 mm |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
