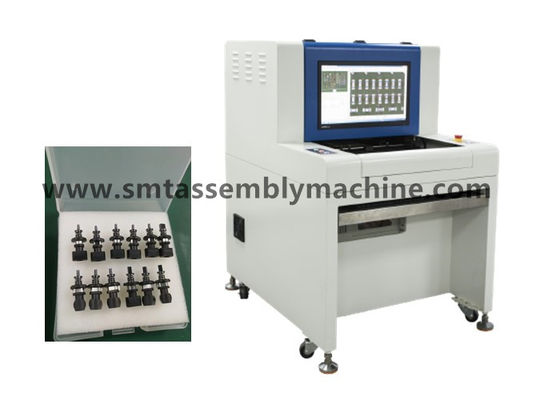

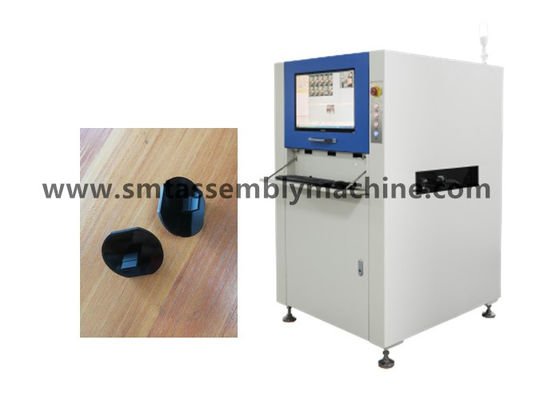

DIP Offline AOI Inspection Machine SZ-X3 Visual Detection Outdoor Floodlight Power Control Board

Large Image : DIP Offline AOI Inspection Machine SZ-X3 Visual Detection Outdoor Floodlight Power Control Board Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	WANBO
Certification:	CE
Model Number:	SZ-X3

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Price:	Negotiate
Packaging Details:	1.Wooden case and vacuum package 2.As your requirements
Payment Terms:	T/T, Western Union, Paypal, Credit card
Supply Ability:	50pcs/month

Contact Now

Detailed Product Description

Product Name:	AOI Testing Equipment	Model:	SZ-X3
Dimension:	10709001310mm	Check:	Floodlight And Floodlight Power Supply
Detection Method:	CAD Data Import Function	Detection Coverage:	Inspect The Quality Of The Metapart
Highlight:	DIP AOI Inspection Machine , Visual Detection AOI Inspection Machine , High Speed Aoi Pcb Machine

Outdoor floodlight power control board DIP offline AOI SZ-X3 visual detection Yamaha YS24

DIP AOI Inspection Machine outdoor street lamp high-power power control board

SMT AOI SZ-X3 machine control quality for outdoor 100W 200W power control board

LED lamp power control board offline AOI SZ-X3 quality detection after welding

AOI SZ-X3 optical inspection equipment inspects the car navigation control board

AOI optical testing equipment checks the control quality of the selfie rod plate

SMT Offline AOI detection device SZ-X3 checks USB fan board short circuit

SMT Offline AOI SZ-X3 inspection equipment checks fan circuit board soldering

Offline AOI SZ-X3 Vision Inspection Car Charging Pad Pick and Place Equipment Yamaha YS20

Shenzhen Wanbo High tech Co., Ltd. produces AOI test equipment, AI plug-in machine, wave soldering, reflow soldering soldering, connection platform, automatic loader, stacker, corner machine and other equipment;
Sales of second-hand mounters: Matsushita mounters, Yamaha mounters, JUKI mounters, Samsung mounters, domestic EZ pass mounters and domestic platform mounters, printing machines, reflow soldering soldering and other supporting equipment;
Accessories sales: motors, plates, laser heads, accessories FEEDER, nozzles, etc.

Powerful software features
1.Color extraction, statistical analysis
2.Character recognition (OCR)  .It can generate and export daily, weekly and monthly reports
3.Color distance analysis Multi-machine interconnection
4.IC bridging Self-built component standard library
5.Black and white specific gravity analysis
6.Luminance analysis  Automatic identification and detection of the bottom surface
7.Graphic similarity analysis  Multi-panel detection
8.CAD data import  CAD data function
9.SPC statistics function  Offline programming
10.Operation level management  Barcode scanning

Technical parameters of offline AOI optical inspection equipment

Functional Specifications

Tested circuit board SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection

Detection method Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.)

Camera Full color smart digital camera

Resolution/Visual Range/Speed Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV

Standard: 20μm/Pixel FOV: 32.56mm×24.72mm Detection speed<260ms/FOV

Optional: 15μm/Pixel FOV: 24.42mm X18.54mm Detection speed< 240ms/FOV

Optional: 10μm/Pixel FOV: 16.28mm X12.36mm Detection speed< 220ms/FOV

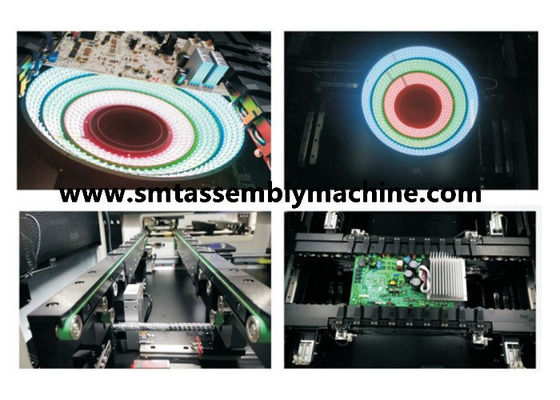

light source High brightness RRGB coaxial ring tower LED light source (color light)

Programming mode Manual writing, automatic framing, CAD data import and automatic correspondence libraries

Remote control Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network

Detect the coverage type Offset, less tin, short circuit, pollution, missing parts, skew, standing monument, side standing, flipping, wrong parts, damage, floating height, polarity, virtual soldering, empty welding, glue spillage, tin hole, pin not out, etc

Special features Multiple programs run at the same time, support automatic recall program; 0-359° rotating parts (in 1°)

Minimal part testing 10µm:01005chip & 0.3pitch IC

SPC and process regulation Record test data throughout the process and perform statistics and analysis, any area can view production status and quality analysis, and output Excel, Txt and other file formats

Barcode system Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark)

Server mode Using a central server, several AOI data sets can be centrally managed

operating system Windows7 Professional

Check the result output 22 inch LCD monitor

System Specifications

PCB size range 50×50mm(Min)～430×330mm(Max)

PCB thickness range 0.3 to 5 mm

PCB clamping system edge clearance TOP:3.5 mm Bottom:3.5 mm

Maximum PCB weight 3KG

PCB flex <5mm or 2% of PCB diagonal length

PCB top and bottom net height PCB Top Side: 30 mm PCB Bottom Side: 60 mm

Conveyor system Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation

Conveyor height above the ground 850 to 920 mm

Conveyor flow / time PCB moves in Y direction In/out time: 2.5 seconds

X/Y platform driver Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction

Power supply/air pressure AC230V 50/60 Hz less than 1KVA / not required

Device weight APPROX. 350KG

Device form factor 1070×900×1310mm (L×W×H)

Ambient temperature and humidity 10~35°C 35~80% RH (non-condensing)

Equipment safety Complies with CE safety standards

SZ-X1/X3

NO.	Name	Brand	unit	quantity
1	guide rail	Taiwan Shangyin	PCS	4
2	Lead screw	Taiwan Shangyin	PCS	2
3	Spindle mount	Taiwan Shangyin	sets	2
4	Motors and drives	Mitsubishi or Panasonic	sets	2
5	camera	Color 5 million pixel camera	sets	1
6	lens	Utron of Japan	PCS	1
7	Sports card	Raysay	sets	1
8	Colored light source	Four-color coaxial light source RGB	sets	1
9	Slot switches	Omron	PCS	2
10	Switching power supply	Taiwan Mingwei	PCS	1
11	Leakage protector	Schneider/CHNT	PCS	1
12	Empty	Schneider/CHNT	PCS	3
13	Intermediate relays	Omron	sets	2
IPC configuration	Computer	IPC chassis	PCS	1
	display	Lenovo 22"	PCS	1
	CPU	Intel i5 quad core	sets	1
	mainboard	Industrial control motherboard
	memory	Kingston 4G
	hard disk	SSD 250G
	Chassis power supply	350W
