50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver

I'm Online Chat Now

50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver

China 50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver supplier
50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver supplier 50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver supplier 50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver supplier 50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver supplier

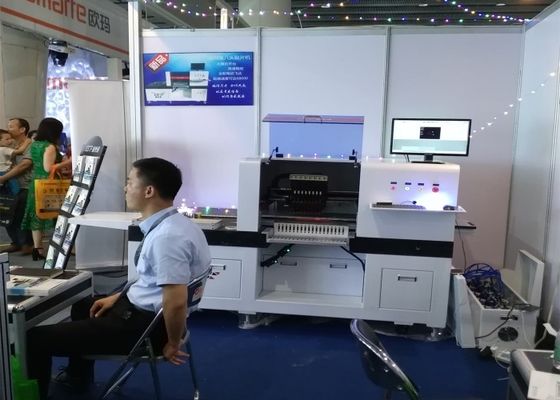

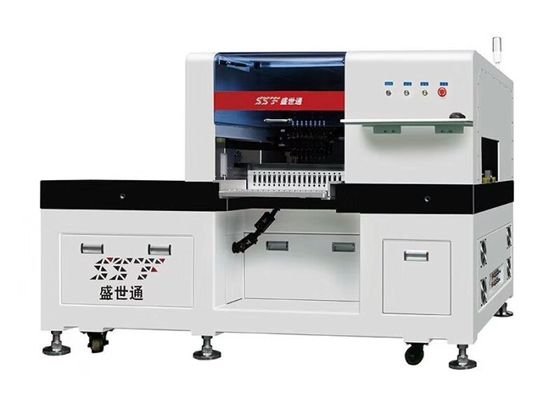

Large Image :  50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver

Product Details:

Place of Origin: China
Brand Name: WANBO SST
Model Number: S8 servo

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package, 2200*1300*1600mm, 1200kg-2500kg
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Product Name: Pick And Place Machine Heads: 8 Heads
Motor: Servo Motor Speed: 35000-50000CPH
Precision: 0.05mm Feeder: 16pcs Of 8mm Feeders
Weight: 1200kg Power Supply: AC 220V
Make Products: Bulb Light, Tube Light, Panel Light, Flood Light, Driver Customize: Yes

50000CPH granite servo motor 8 heads pick and place machine for LED light and driver





Machine description



Use the most convenient positioning block, base plate origin positioning method to fix position. The Positioning is highly accurate (Precision less than 0.05 mm). Mounting angle range 0-360° and the precision is 0.1°. Every picking nozzle is an independent rotation angle, moreover added 8 cameras for components recognition. In addition to place the traditional long led tube light, also can place bulb light, down light, spot light, ceiling light, LED fence light, LED driving power supply, copper wire string light and so on. All X, Y, W axis are equipped with imported precision ball bearing screw rods and guide rails. Z axis installed 8 sets of imported motor to drive, it enhanced the smooth coordination of equipment motion, reduced abnormal noise, greatly improved the placement accuracy and speed.



Product main features:



1. Mounting type: It can meet the mounting of SMD LED components of all specifications such as 0603 to 7272. In addition to all flat LEDs, other planar electronic components (such as resistors, capacitors, etc.) and high-power LEDs and lenses can be produced.

2, accurate positioning: the most convenient positioning block, substrate origin alignment, accurate positioning (accuracy less than 0.05mm). The mounting angle range is 0-360° with an accuracy of 0.1°. Each nozzle is a separate corner, plus six component recognition cameras, in addition to the traditional LED long strips, bulbs, down lights, spotlights, ceiling lamps, guardrail tubes, LED drive power, copper wire Light strings and the like can be mounted at will.

3, high precision: X, Y, W axis are equipped with imported precision ball screw and guide rail, Z-axis 8 groups of imported motor drive, enhance the smooth coordination of equipment movement, reduce abnormal noise, greatly improve the accuracy and speed of the patch.

4, the mounting plate specifications: platform 1200X300mm, suitable for 99% of the current LED products on the market;

Can be attached to various shapes of PCB board, without the need for fixtures, can be attached to the 1.2-1.5 meters long PCB board.

5. Vision system: Visual software online programming, in which the programming camera is a high-precision digital camera, without the need to manually input component coordinates; and the positioning method automatically recognized by the visual camera ensures the placement accuracy.

6, supporting software: the interface is simple and generous, functional and practical, visual software online programming, the software displays all the coordinate points in the imposition, and can fine-tune the coordinate points therein to achieve high-precision placement, no need to manually input component coordinates, fast and convenient Simple and clear, combined with the actual needs of many LED manufacturers to independently develop and design.

7, Yamaha Feida: The machine is equipped with 8 8MM Yamaha Feida (also optional Fuji Electric Feida), long service life, high stability and fast speed.

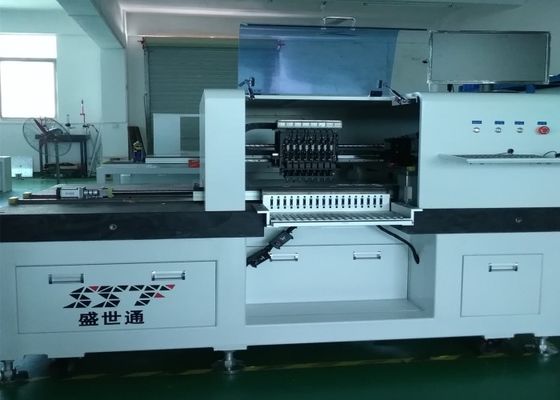

50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver





Technical parameters





Product name

SST full automatic 1.5m pick and place machine SST-S8 servo granite

Maximum PCB area

1500×380mm

Maximum moving range

X axis 2500mm,Y axis 380mm

Z axis Maximum moving range

12mm

Max placement speed

68000CPH

Typical placement speed

35000-55000CPH

Movement precision

±0.05mm

Positioning method

MARK point camera + visual camera position

Can mount components

0603 upper resistor and capacitor parts and LED chips 3528, 5050, meanwhile meet requirement of SOP SOT chip placement, and compatible with all kinds of high power chip mount.

Types of production

LED tube light,soft LED strip light,power supply driver,fence light,display module,display screen etc multi LED application products.

Programming method

Automatic Visual camera Positioning programming

Belt type feeder

8mm, 12mm, 16mm, and 24mm feeder

Number of feeders

16pcs of standard 8mm feeders can be installed

Operating system

WINDOWS 7

Compressed air

0.55MPA

Power supply

220V,50Hz,2.0KW

Weight

1500Kg

Dimension

2000MM(L)*1200MM(W)*1450MM(H)




Main Parts Supplier of machine



Cables Germany IGUS
Servo motor PANASONIC
Screw rod Japanses KURODA/THK
Guide rail Taiwan HIWIN
Vacuum system Germany vacuum pump
Head Z motor Japan Shino
Inductive switch Panasonic
Negative pressure meter Panasonic
Camera Sony







Placement product

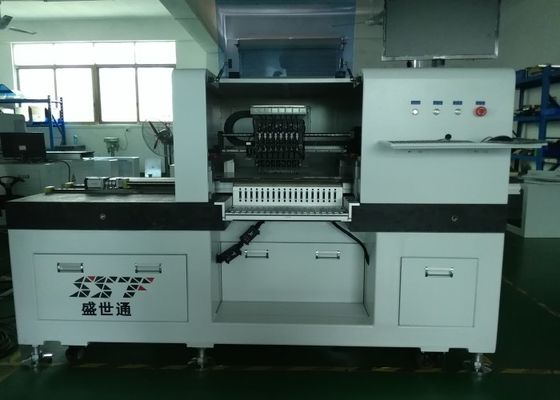

50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver





50000CPH Granite Servo Motor Pick And Place Equipment 8 Heads For LED Light / Driver
