Solder Paste Stencil Printer Machine With Fault Record Analysis Function

I'm Online Chat Now

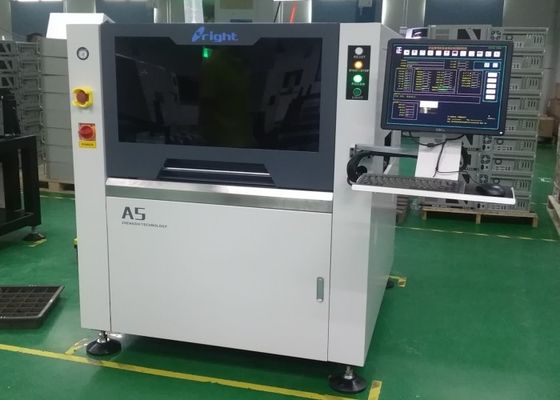

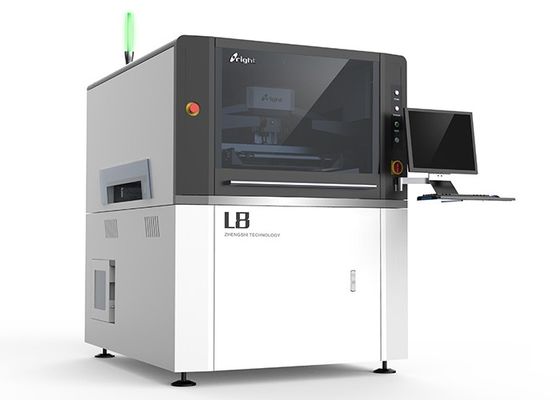

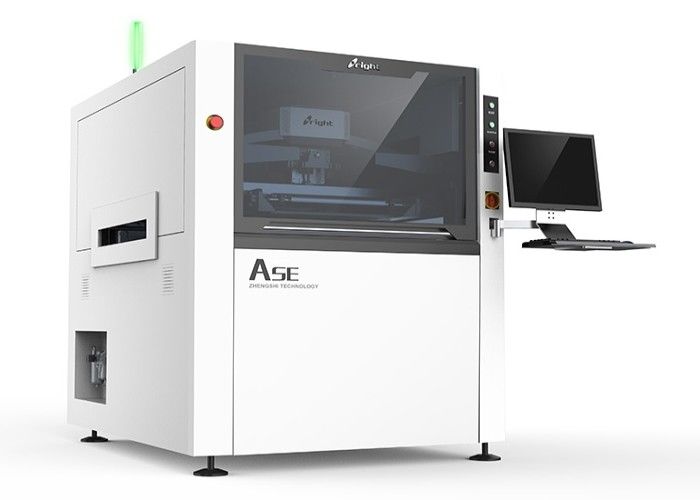

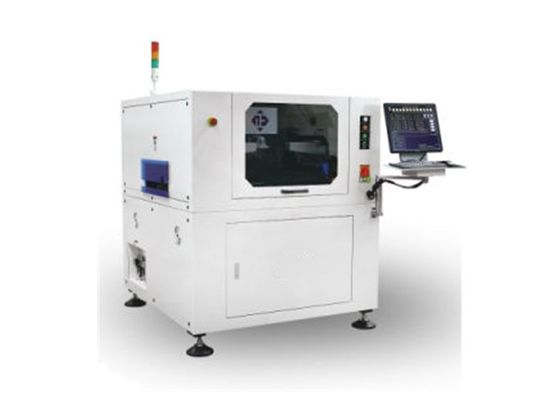

Solder Paste Stencil Printer Machine With Fault Record Analysis Function

China Solder Paste Stencil Printer Machine With Fault Record Analysis Function supplier
Solder Paste Stencil Printer Machine With Fault Record Analysis Function supplier Solder Paste Stencil Printer Machine With Fault Record Analysis Function supplier Solder Paste Stencil Printer Machine With Fault Record Analysis Function supplier Solder Paste Stencil Printer Machine With Fault Record Analysis Function supplier

Large Image :  Solder Paste Stencil Printer Machine With Fault Record Analysis Function

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: ASE

Payment & Shipping Terms:

Minimum Order Quantity: 1-4 Pieces
Price: discuss price
Packaging Details: wooden package
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Product Name: Solder Paste Screen Printer Printing Precision: 0.02mm
Weight: 360KG Power Supply: 220V
Customize: Yes Printing Area: 1600*320mm
Warranty: 1 YEAR Air Pressure: 4-7kgf/cm2
Frame Size: 1900*400 Sub Board Size: 1500*320
Selling Units: Single Item Single Package Size : 195X50X185 Cm
Single Gross Weight: 450.0 Kg Package Type: WOODEN BOX PACKAGE

Solder Paste Stencil Printer Machine With Fault Record Analysis Function

Full automatic smt solder paste printing machine, stencil printer machine

Solder Paste Stencil Printer Machine With Fault Record Analysis Function

SMT pick and place machine

Advantage


1, Arch bridge type suspending direct-connected scraper.
2, Print head with the programmable and suspending self-adjusting stepper motor drive.
3, Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth.
4, Unique belt transmission system avoids being stuck or fall-off of PCB.
5, Programmable motor controls transport speed and puts PCB in the precise position.
6, The unit to clean is separated from CCD camera, which can minimize the load of motor and impulse, improve the positioning precision and speed and extend the service life.
7, With servo motor and lead screw, the direct connection UVW platform is featured with high precision, high rigidity and compact structure.



Specifications

Screen Frames
Min Size 470×370mm
  Max Size 737×737mm
  Thickness 25~40mm
PCB Min Size 50×50mm
PCB Max Size 400×340mm
PCB Thickness 0.4~6mm
PCB Warpage <1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/s(Programmable)
Board Location PCB Support System Magnetic Pin/Up-down table adjusted
/support block
  Clamping System Side clamping,vacuum nozzle,
Automation retractable Z pressure
Printer Head Two independent motorised printhead
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15kg
Squeegee Angel 60°/55°/45°
Squeegee Type Stainless steel(standard),plastic
Stencil Separation Speed 0.1~20mm/sec (Programmable)
Cleaning System Dry ,Wet,Vacuum (Programmable)
Table Adjustment Ranges X:±10mm;Y:±10mm;θ:±2°
Solder Paste Inspection 2D Inspection(Standard)
Repeate Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time <7s(Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6kg/cm2
Power Input AC:220±10%,50/60HZ,3KW
Control Method PC Control
Machine Dimensions 1220(L)×1530(W)×1500(H)mm
Machine Weight Approx:1000kg



Second, the characteristics


Scraper system

* Arch type suspension hanging straight squeegee

* Programmable floating self-adjusting stepper motor to drive print head

* Two-wheeled sliding rail type structure with double-slider to ensure the accuracy and smoothness of the front and rear operation
* Designed for the different front and rear blade pressure requirements and the stability of the lifting, to prevent the solder paste from leaking and the blade has a certain elastic clamping design, the blade pressure, lifting speed, printing speed, printing range are software adjustable, and Providing customers with a variety of demolding methods to adapt to different PCB requirements, providing customers with a good printing control platform;
* Slide type scraper system to improve running stability and extend service life;

Full-closed blade pressure feedback device, constantly monitoring the size of the blade pressure, making the tin more full;



Solder Paste Stencil Printer Machine With Fault Record Analysis Function




2. Steel mesh positioning system

Large and small steel mesh, good and wide applicability

The imported SMC cylinder is used as the pressure steel mesh cylinder.

Embedded scale, never fall off

Segmented fixed steel mesh frame

Solder Paste Stencil Printer Machine With Fault Record Analysis Function



3. Image and optical path system

The X and Y axes are made of Japanese Kuroda high-grinding screw rods, driven by Japanese Panasonic motors at both ends.

Internally add polarizers to automatically and accurately capture MARK points of different shapes

Upper, lower and coaxial three-way uniform light source

Using Toshiba Industrial Camera

Solder Paste Stencil Printer Machine With Fault Record Analysis Function


4. PCB transportation and positioning system

Freely select the direction of the board, free to combine

Special craft internal tooth transport belt to prevent card board

Programmable transport speed control for more precise stoppage

Adoptive side clamps and vacuum suction chambers, effectively clamping the PCB to ensure complete flat contact between the PCB and the steel mesh.

Solder Paste Stencil Printer Machine With Fault Record Analysis Function




5. Cleaning system

Spray cleaning method

Dry, wet, vacuum wash any combination

Separate cleaning structure

Arc cleaning strip

Washing liquid, and steel mesh cleaning paper can be controlled

Solder Paste Stencil Printer Machine With Fault Record Analysis Function



6. Platform calibration system

UVW platform structure, high precision, high rigidity, compact structure

Three-axis linkage, small size and high precision

Solder Paste Stencil Printer Machine With Fault Record Analysis Function



7. Base and rack system

Solid shape

Panasonic motor plus Japanese original high-precision grinding screw

High rigidity, high stability left and right symmetrical frame structure

Solder Paste Stencil Printer Machine With Fault Record Analysis Function



8. Electrical circuit system

Safe and simple circuit air circuit arrangement

The circuit air path is erected to discharge both sides and the rear of the machine for easy maintenance.

Solder Paste Stencil Printer Machine With Fault Record Analysis Function



9. Operating system

Easy-to-learn and easy-to-use user-friendly interface with good human-machine dialogue

Do program files with teaching and navigation functions, prompts at each step

Chinese and English one-button switching

With operation log, fault record analysis and other functions

Solder Paste Stencil Printer Machine With Fault Record Analysis Function



10. Other function options

Automatic dispensing function

Automatic scan code function

Automatic tinning function

Closed loop control

Constant temperature and humidity function

Steel mesh plugging function

Other functions can be customized according to the actual needs of customers

Solder Paste Stencil Printer Machine With Fault Record Analysis FunctionSolder Paste Stencil Printer Machine With Fault Record Analysis Function




 Factoty picture and customer site.

Solder Paste Stencil Printer Machine With Fault Record Analysis Function



Solder Paste Stencil Printer Machine With Fault Record Analysis Function



Solder Paste Stencil Printer Machine With Fault Record Analysis Function



Solder Paste Stencil Printer Machine With Fault Record Analysis Function





Solder Paste Stencil Printer Machine With Fault Record Analysis Function



Solder Paste Stencil Printer Machine With Fault Record Analysis Function

Shenzhen Wanbo Hi-tech Co Ltd is specializing in manufacturing TAB bonding machine, ACF bonding machine, LCD screen laser repair machine, soldering station, soldering tips, digital multimeter, adjustable dc power supply, programming electronic load, LCR meter, oscilloscope, lamp mafnifier, smt machine, pick and place machine, reflow oven, solder paste, miscroscope, ultrasonic cleaner, ultrasonic welding machine, assembly line, LED chip packaging machines etc. We have R&D team based in Shenzhen. Our goal is to build perfect world.

Solder Paste Stencil Printer Machine With Fault Record Analysis Function

Solder Paste Stencil Printer Machine With Fault Record Analysis Function



Solder Paste Stencil Printer Machine With Fault Record Analysis Function



Solder Paste Stencil Printer Machine With Fault Record Analysis Function

1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.



2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.



3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug.
