LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine

LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine

LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine
LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine

Large Image :  LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: WANBO SST
Model Number: S8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package, 2200*1300*1600mm, 1200kg-2500kg
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Pick And Place Machine Heads: 8 Heads
Motor: Step Motor Speed: 25000-30000CPH
Precision: 0.05mm Feeder Slot: 12 Slots Of 8mm Feeders
Weight: 1200kg Power Supply: AC 220V
Make Products: Bulb Light, Tube Light, Panel Light, Flood Light, Driver Customize: Yes
High Light:

smt pick and place machine

,

surface mount technology machine

LED panel light downlight soft strip smt smd pick and place machine


Product name: pick and place machine S8 complete SMT line for

Led bulb, led spotlight, led ceiling light, led daring lamp, led track light, led panel light, led par light, led industrial light, led kitchen light, led desk lamp, led downlight

1.2 meter screen printer + S8  8 heads pick and place machine  +  8 zones reflow oven

LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine 0

LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine 1
LED Light SMT Assembly Machine , High Accuracy SMD Pick And Place Machine 2



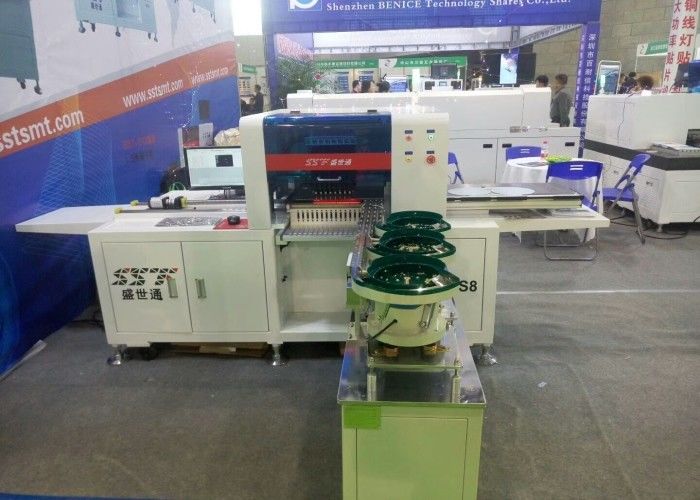

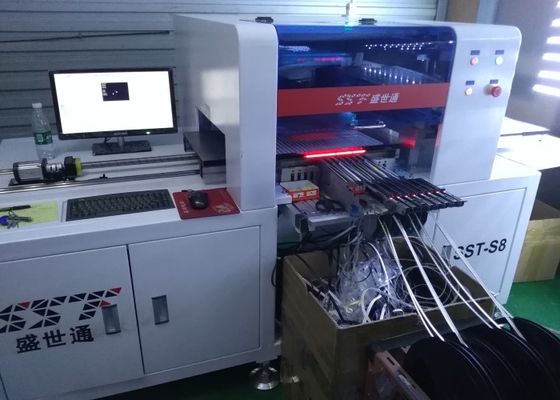

SST-S8 is a six-head high-speed placement machine developed by Sheng Shi Tong in order to meet the rapid development of the lighting industry. The X / Y / W axis is equipped with imported motors, precision ball screw rods and guide rails to ensure the smooth movement of the platform and control accuracy. The transportation adopts platform moving plate, reduces the manpower to the greatest extent. The head uses the high precision Japanese IKO spline, the precision is high, the wear-resisting time is long, will not deform in five years, simultaneously uses the Japanese Yamaha suction nozzle pole, the picking nozzle, the Feeder feeds material, Ensure the high accuracy, high stability, six groups of high speed patch heads can group pick group place, and group pick separate place, separately pick and place, any angle mount, greatly improve the production efficiency, fully meet your more stable, faster and more durable plement production requirements!
Machine adopts Industrial control computer + independent special controller to control + independently developed operating software, the system stability, and which is simple operate and easy to learn!

Product main features:


1, Mount type: Machine placement can meet all specifications SMD LED components such as 0603 to 7272 placement. In addition to all planar LEDs, other planar electronic components (such as resistors, capacitors, ic, diode etc.) as well as high-power LEDs and lenses can be produced.
2, Positioning accuracy: Use the most convenient positioning block and substrate origin to align and fix position accurately (accuracy is less than 0.05mm). The mounting angle range is 0-360° with an accuracy of 0.1°. Each nozzle is an independent rotation angle, plus six components identify camera, in addition to mount the traditional LED long lamp bar tube light, also can mount bulb lamp, downlight, spotlights, ceiling lamps, guardrail tube, LED drive power supply, copper wire Light strings and so on can be freely mounted.
3, High precision: The X, Y, and W axes are equipped with imported precision ball screws and guide rails, and the Z axis is driven by six imported motors to enhance the smooth coordination of the equipment during movement, reduce abnormal noises, and greatly increase the accuracy and speed of patch placement.
4, Mounting board specification: Platform 1200X300mm, suitable for 99% of LED products currently on the market; Can be affixed to a variety of shapes PCB board, without fixtures, can be attached to 1.2-1.5 meters long PCB board.
5Vision System:Visual software edit program, in which the programming camera is a high-precision digital camera, without manually inputting the coordinates of components. And using the positioning method automatically recognized by the visual camera, ensuring the placement accuracy.
6Supporting software:The interface is simple and generous, functions are practical. Visual software online programming, the software displays all the coordinate points in the imposition, and can fine-tune the coordinate points. It achieves high-precision placement, without manually entering the component coordinates, fast and convenient, simple and clear. Combined with actual needs of many LED manufacturers, software is independently researched and developed.
7Feeder: Machine configuration 6pcs of 8MM Fuji Electric feeder, long life, high stability and fast speed.

Ultra low use cost:
Free door-to-door of Guangdong province, our factory give free training, junior level education or a little understanding of the computer's zero-based staff 2 to 3 days can learn it.
Warranty is 1 year. Machine parts are easy to buy, which to solve the worries of your use of machine.
The power consumption is extremely low, and the average power consumption during normal work is about 1.5-2.0 KWH/hour.

Technical parameters



Product nameSheng Shi Tong 1.2m pick and place machine SST-S8
Maximum PCB1200×380mm
Maximum moving rangeX axis 1200mm,Y axis 390mm
Z axis max moving range12mm
Max mounting speed45000CPH
Typican mounting speed25000-30000cph
Moving precision±0.05mm
Position methodMARK point camare + Vision camare position
Mounting components0603 up or more resistors and capacitors, ic, diode, bridge etc and a variety of 2835, 3528, 3014, 4014, 5050, 5630, 5730, 7070 etc LED chips, while meeting the SOP SOT chip placement, and compatible with a variety of high-power chip, lens, lumins placement
Production typeLED fluorescent tube, soft light strip, power drive, guardrail tube, module, display, backlight and other LED applications
Programming methodAutomatic vision camera positioning programming
Belt type feeder8mm,12mm,16mm, and 24mm feeders
Number of feedersCan install 14pcs of 8mm or 7pcs of 12mm feeders
Operation systemWINDOWS 7
Power supply220V 50Hz, 2.0KW
Weight1200Kg
Dimension2000MM(L)*1200MM(W)*1450MM(H)





Main Parts Supplier of machine


CablesGermany IGUS
Servo motorPANASONIC
Screw rodJapanses KURODA/THK
Guide railTaiwan HIWIN
Vacuum systemGermany vacuum pump
Head Z motorJapan Shino
Inductive switchPanasonic
Negative pressure meterPanasonic
CameraSony

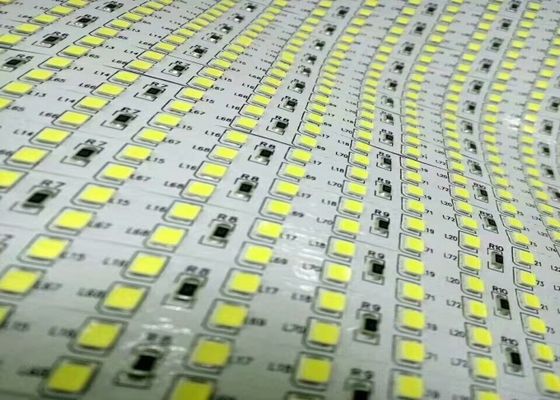

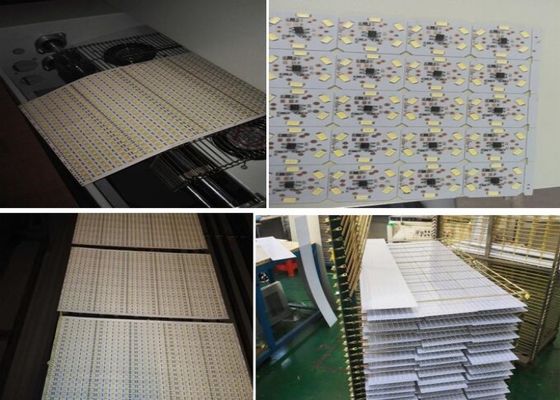

Placement product
