|Product Name:||Pick And Place Machine||Heads:||6 Heads|
|Precision:||0.05mm||Feeder Slot:||30 Slots Of 8mm Feeders|
|Weight:||1200kg||Power Supply:||AC 220V|
|Make Products:||Bulb Light, Tube Light, Panel Light, Flood Light, Driver||Customize:||Yes|
wide use smt pick and place machine 6 heads for driver PCB IC components

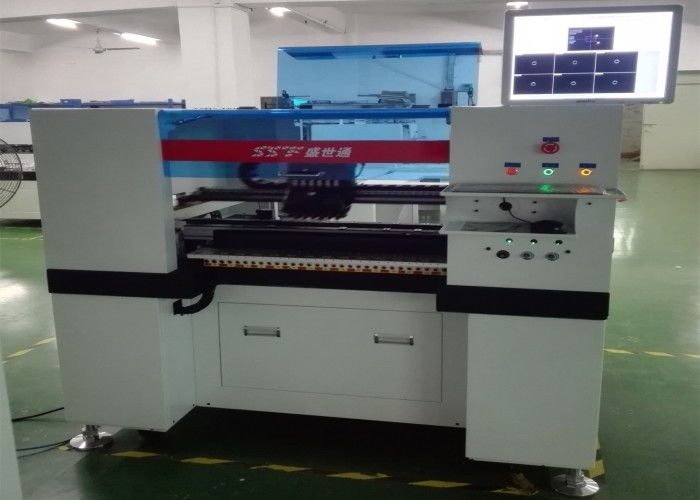

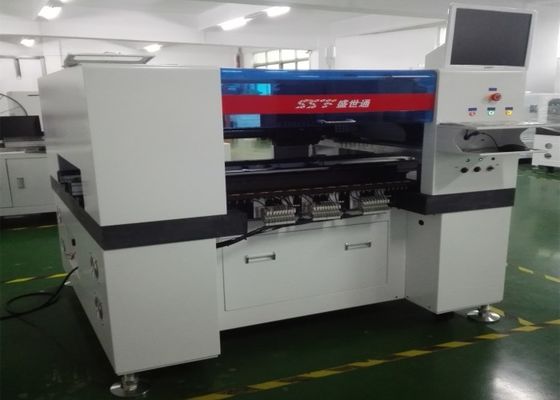

Product name: pick and place machine H560 complete SMT line

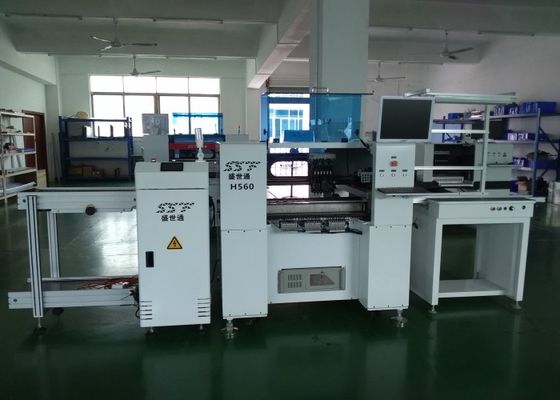

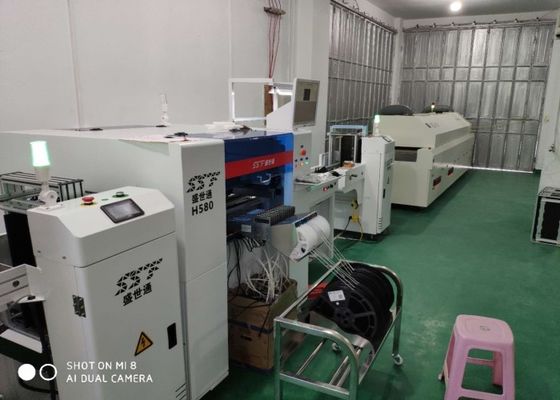

0.6/1.2m meter solder printer + H560 6 heads pick and place machine + 8 zones reflow oven
h560 is a six-head high-speed placement machine developed by Sheng Shi Tong in order to meet the rapid development of the lighting industry. The X / Y / W axis is equipped with imported motors, precision ball screw rods and guide rails to ensure the smooth movement of the platform and control accuracy. The transportation adopts platform moving plate, reduces the manpower to the greatest extent. The head uses the high precision Japanese IKO spline, the precision is high, the wear-resisting time is long, will not deform in five years, simultaneously uses the Japanese Yamaha suction nozzle pole, the picking nozzle, the Feeder feeds material, Ensure the high accuracy, high stability, six groups of high speed patch heads can group pick group place, and group pick separate place, separately pick and place, any angle mount, greatly improve the production efficiency, fully meet your more stable, faster and more durable plement production requirements!
Machine adopts Industrial control computer + independent special controller to control + independently developed operating software, the system stability, and which is simple operate and easy to learn!
Product main features:
1, Mount type: Machine placement can meet all specifications SMD LED components such as 0603 to 7272 placement. In addition to all planar LEDs, other planar electronic components (such as resistors, capacitors, ic, diode etc.) as well as high-power LEDs and lenses can be produced.
2, Positioning accuracy: Use the most convenient positioning block and substrate origin to align and fix position accurately (accuracy is less than 0.05mm). The mounting angle range is 0-360° with an accuracy of 0.1°. Each nozzle is an independent rotation angle, plus six components identify camera, in addition to mount the traditional LED long lamp bar tube light, also can mount bulb lamp, downlight, spotlights, ceiling lamps, guardrail tube, LED drive power supply, copper wire Light strings and so on can be freely mounted.
3, High precision: The X, Y, and W axes are equipped with imported precision ball screws and guide rails, and the Z axis is driven by six imported motors to enhance the smooth coordination of the equipment during movement, reduce abnormal noises, and greatly increase the accuracy and speed of patch placement.
4, Mounting board specification: Platform 1200X300mm, suitable for 99% of LED products currently on the market; Can be affixed to a variety of shapes PCB board, without fixtures, can be attached to 1.2-1.5 meters long PCB board.
5, Vision System:Visual software edit program, in which the programming camera is a high-precision digital camera, without manually inputting the coordinates of components. And using the positioning method automatically recognized by the visual camera, ensuring the placement accuracy.
6, Supporting software:The interface is simple and generous, functions are practical. Visual software online programming, the software displays all the coordinate points in the imposition, and can fine-tune the coordinate points. It achieves high-precision placement, without manually entering the component coordinates, fast and convenient, simple and clear. Combined with actual needs of many LED manufacturers, software is independently researched and developed.
7, Feeder: Machine configuration 6pcs of 8MM Fuji Electric feeder, long life, high stability and fast speed.
Ultra low use cost:
Free door-to-door of Guangdong province, our factory give free training, junior level education or a little understanding of the computer's zero-based staff 2 to 3 days can learn it.
Warranty is 1 year. Machine parts are easy to buy, which to solve the worries of your use of machine.
The power consumption is extremely low, and the average power consumption during normal work is about 1.5-2.0 KWH/hour.
|Product name||pick and place machine H560|
|Maximum moving range||X axis 600mm,Y axis 500mm|
|Z axis max moving range||12mm|
|Max mounting speed||25000CPH|
|Typican mounting speed||12000-15000cph|
|Position method||MARK point camare + Vision camare position|
|Mounting components||0603 up or more resistors and capacitors, ic, diode, bridge etc and a variety of 2835, 3528, 3014, 4014, 5050, 5630, 5730, 7070 etc LED chips, while meeting the SOP SOT chip placement, and compatible with a variety of high-power chip, lens, lumins placement|
|Production type||LED fluorescent tube, soft light strip, power drive, guardrail tube, module, display, backlight and other LED applications|
|Programming method||Automatic vision camera positioning programming|
|Belt type feeder||8mm,12mm,16mm, and 24mm feeders|
|Number of feeders||Can install 30pcs of 8mm or 15pcs of 12mm feeders|
|Operation system||WINDOWS 7|
|Power supply||220V 50Hz, 2.0KW|
Main Parts Supplier of machine
|Screw rod||Japanses KURODA/THK|
|Guide rail||Taiwan HIWIN|
|Vacuum system||Germany vacuum pump|
|Head Z motor||Japan Shino|
|Negative pressure meter||Panasonic|
