LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer

I'm Online Chat Now

LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer

China LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer supplier
LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer supplier LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer supplier LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer supplier LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer supplier

Large Image :  LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer

Product Details:

Place of Origin: CHINA
Brand Name: WANBO
Model Number: OLS1068S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: discuss price
Packaging Details: wooden box package
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Screen Printer Printing Area: 1200*320mm
Frame Size: 370 * 470 Mm, 1600 * 400 Mm Substrate Size: 600 X 250 Mm, 1200 X 300 Mm
Base Plate Thickness: 0.2 ~ 2.2 Mm Air Compressor: 4-7 KGF/Cm2
Power: 220V 50/60Hz, 100W Machine Size: 1650L X 900W X 1650H Mm
Weight: 300kg

1.2 meter solder paste printer, screen printer, smt stencil printer for LED tube light PCB





Product model: OLS-1068S 1.2 meter solder printer



Product features:



1. Use convenient accurate positioning servo system.

2. Adopt imported linear high-speed rail and speed regulating motor to drive the scraper, ensure the printing precision.

3. Fixed printing scraper can be rotated 45 degrees upward, to facilitate printing halftone and scraper cleaning and replacement.

4. The scraper holder before and after the adjustment, to select the suitable printing position.

5. Combined printing platen has a fixed groove and PIN, easy installation and adjustment, suitable for single, double panel printing.

6. Using steel net mobile school edition, and connecting with the printing (PCB) X, Y, Z Correction fine-tune convenient and quick.

7. Controlled by PLC and touch screen man-machine interface, simple, convenient and suitable for the man-machine dialogue.

8. Can be set unidirectional and bidirectional, a variety of printing way.

9. With automatic counting function, convenient production statistics.

10. Scraper blade Angle is adjustable, steel, rubber scraper are suitable.

11. Man-machine interface with screen saver function, protect the service life of the man-machine interface.

12. Adopt unique program design, printing scraper convenient adjustment.

Printing machine speed, according to the man-machine interface can be arbitrary digital control adjustment.



Technical parameters:



The number type OLS-1068S
Printing machine covers an area 1300 x 320 mm
Frame size 370 * 470 mm, 1600 * 400 mm
Substrate size 600 x 250 mm, 1200 x 300 mm
Base plate thickness 0.2 ~ 2.2 mm
Counter to fine-tune the Front/Back + 10 mm R/L + 10 mm
The printing accuracy + / - 0.02 mm
Machines repeat accuracy + / - 0.03 mm
Minimum spacing 0.35 mm
The use of air compressor 4-7 KGF/Cm2
Power 220V 50/60Hz, 100W
Machine size 1650L x 900W x 1650H mm
The machine weighs 300 kg

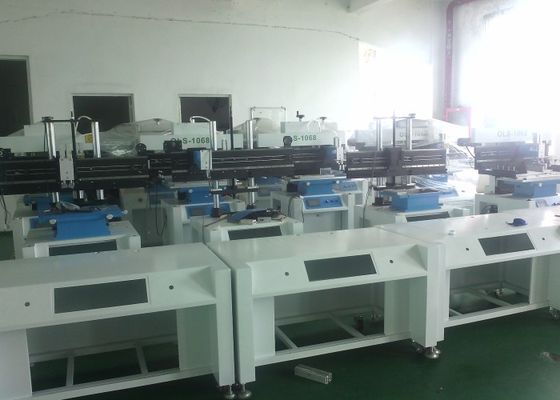

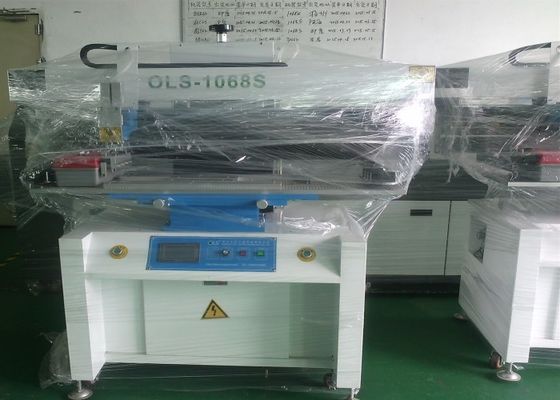

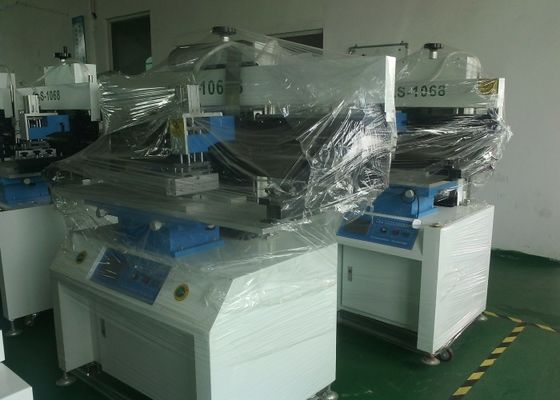

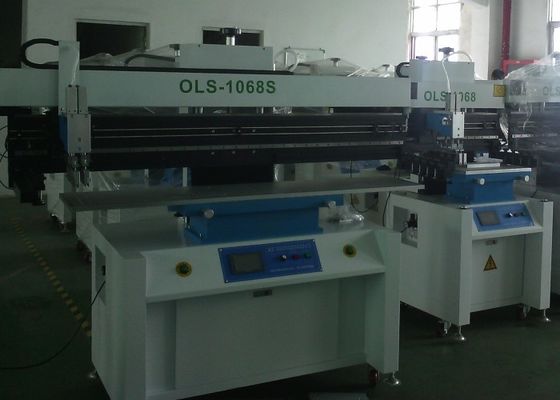

LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer

LED Tube Light PCB SMT Screen Printer , 1.2 Meter Solder Paste Stencil Printer
