Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

I'm Online Chat Now

Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

China Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light supplier
Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light supplier Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light supplier Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light supplier Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light supplier

Large Image :  Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: 1068

Payment & Shipping Terms:

Minimum Order Quantity: 1-4 Pieces
Price: discuss price
Contact Now
Detailed Product Description
Product Name: Solder Paste Screen Printer Printing Precision: 0.02mm
Weight: 360KG Power Supply: 220V
Customize: Yes Printing Area: 600*320mm
Warranty: 1 YEAR Air Pressure: 4-7kgf/cm2
Frame Size: 1000*400 Sub Board Size: 600*350
Selling Units: Single Item Single Package Size : 195X50X185 Cm
Single Gross Weight: 380.0 Kg Package Type: WOODEN BOX PACKAGE

Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

0.6m semi automatic screen stencil printer, solder paste printer machine for LED driver panel lightAccurate Solder Paste Printer Semi Automatic For LED Driver Panel Light
SMT pick and place machine
Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

0.6 meter light strip semi-automatic printing machine

1, Use the servo system for easy and accurate positioning.
2, Imported linear high-speed guide rail and imported speed control motor to drive the scraper seat to ensure printing accuracy.
3, The printing blade can be rotated up to 45 degrees to facilitate the cleaning and replacement of the printing stencil and scraper.
4, The blade holder can be adjusted back and forth to select the appropriate printing position.
5, The combined printing platen has fixed groove and PIN, easy to install and adjust, suitable for single and double panel printing.
6, The school version uses steel mesh to move, combined with printing (PCB) X, Y, Z. Correcting fine-tuning is quick and easy.
7, PLC and touch screen man-machine interface control, simple, convenient and more suitable for human-machine dialogue.
8, One-way and two-way, multiple printing methods can be set.
9, With automatic counting function, it is convenient to produce output statistics.
10, The blade angle is adjustable, steel scraper and rubber scraper are suitable.
11, The man-machine interface has a screen saver function to protect the life of the human-machine interface.
12, With a unique programming design, the printing blade holder is easy to adjust.
13, Printing machine speed man-machine interface display, can be digitally adjusted and controlled.


 Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light
Technical parameters:



The number type

WANBO OLS1068

Printing machine covers an area

600 x 320 mm

Frame size

370 * 470 mm, 1000 * 400 mm

Substrate size

600 x 250 mm, 700 x 300 mm

Base plate thickness

0.2 ~ 2.2 mm

Counter to fine-tune

the Front/Back + 10 mm R/L + 10 mm

The printing accuracy

+ / - 0.02 mm

Machines repeat accuracy

+ / - 0.03 mm

Minimum spacing

0.35 mm

The use of air compressor

4-7 KGF/Cm2

Power

220V 50/60Hz, 100W

Machine size

1950L x 900W x 1650H mm

The machine weighs

360 kg

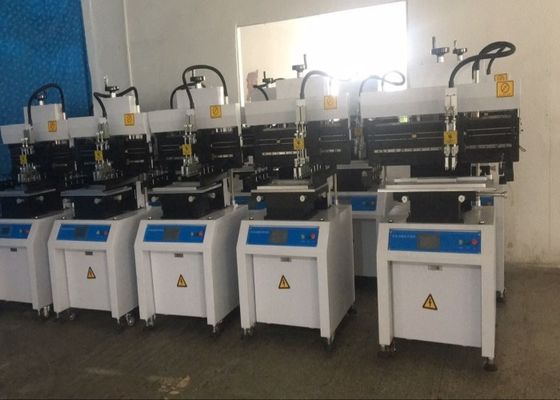

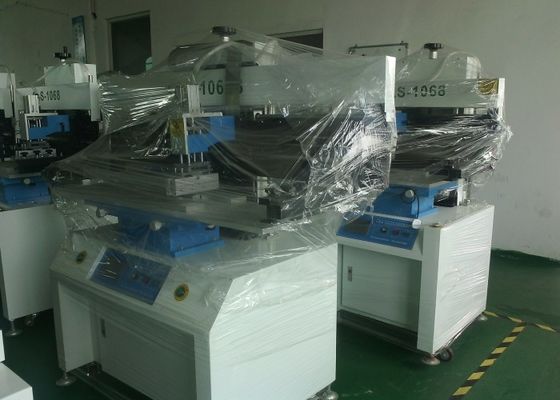

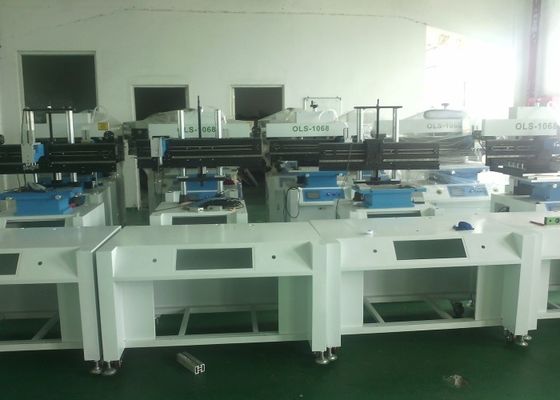

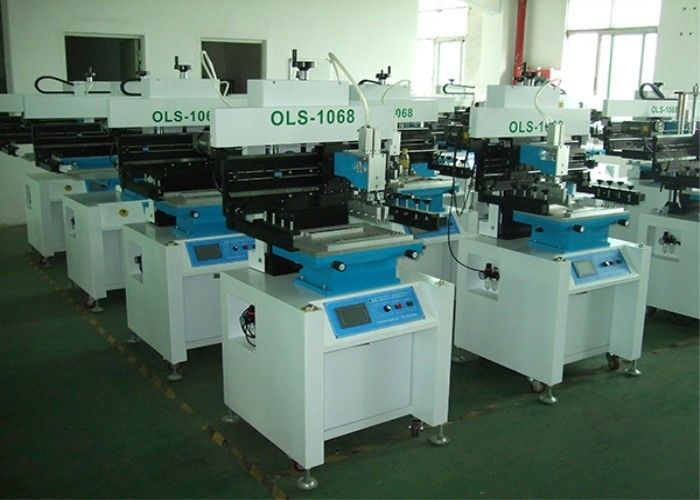

 Factoty picture and customer site.
Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light





Shenzhen Wanbo Hi-tech Co Ltd is specializing in manufacturing smt machine, pick and place machine, reflow oven, solder paste, miscroscope, ultrasonic cleaner, ultrasonic welding machine, assembly line, LED chip packaging machines, TAB COF bonding machine, ACF bonding machine, LCD screen laser repair machine, soldering station, soldering tips, digital multimeter, adjustable dc power supply, programming electronic load, LCR meter, oscilloscope, lamp mafnifier, etc. We have R&D team based in Shenzhen. Our goal is to build perfect world.
Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light
Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

Accurate Solder Paste Printer Semi Automatic For LED Driver Panel Light

1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.

2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.

3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug.
