Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pcb Belt Conveyor | Power: | AC220V, 50Hz |
|---|---|---|---|
| Speed: | 0-2000mm/min | Width: | 0-350mm |
| High Light: | pcb handling equipment,smt conveyor |
||

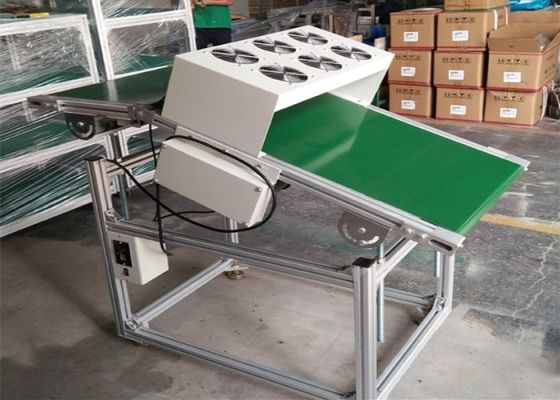

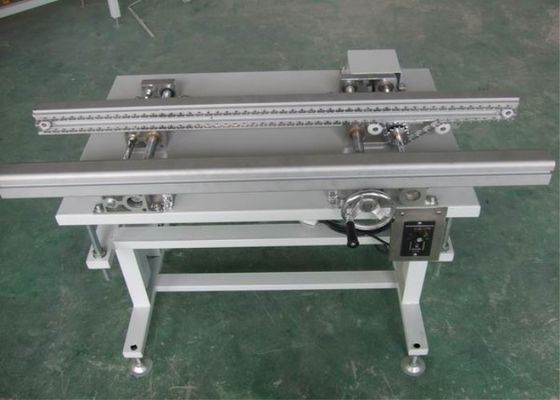

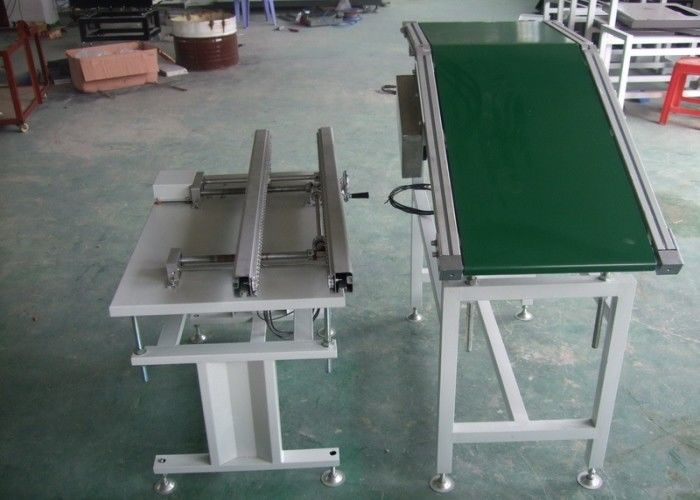

PCB conveyor, smt pcb conveyor belt, inlet conveyor for wave soldering machine
Product name: smt pcb conveyor, Adjustable inline conveyor for wave soldering systems
product description:
1. Used for connecting the front end of the wave machine to the production line;
2. Use nylon chain to transport, the product will not slip;
3. When the wave soldering angle is adjusted, it is only necessary to adjust the board connection without moving the plug-in cable.
4. The speed of the conveyor belt is adjustable and the work is stable and reliable.
5. The four-legged bracket is more stable.
First, the product introduction
★ Double screw rod widening mechanism to ensure that the transport rails are parallel to each other;
★ Adopt professional wear-resistant anti-static flat belt and special aluminum profile guide to ensure smooth connection and stable transportation;
★ Standard signal communication interface for online connection with other devices;
★ There are two automatic working modes, standard anti-static workbench;
★ Optional standard light stand and process card board; (optional)
★ It adopts electronic governor speed regulation, and the transport speed is 0-1500mm/Min steplessly adjustable.
Second, SPECIFICATIONS
| PCB max width | 400mm |
| Transfer height | 880 ± 30 mm |
| Transfer speed | 0-1500mm/Min |
| Control mode | Relay sequence control |
| Working mode | Manual and automatic working modes, can communicate with the front or the rear |
| Power | 220V,single phase,50/60Hz |
| Power rate | 40W |
| weight | Approx.50kg |
| dimension(L×W×H) | L1200×W550×H1000mm |

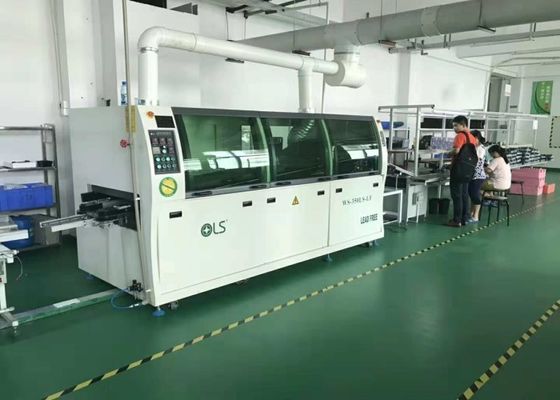

PCB conveyor for wave soldering machine
