Product Details:
Payment & Shipping Terms:
|
| Product Name: | Glue Dispenser | Equipment Structure: | Cabinet Structure |
|---|---|---|---|
| Driver Motor: | Stepper Motor + Timing Belt + Linear Guide | Mechanical Hand: | Precision Robot |
| Air Pressure: | 0.2-0.7MPA | Control Voltage: | 24v |
| Max Speed: | 500mm/s | Positioning Accuracy: | 0.01mm |
| Status: | New | Weight: | 68kg |
| High Light: | glue dispensing equipment,industrial adhesive dispenser |
||

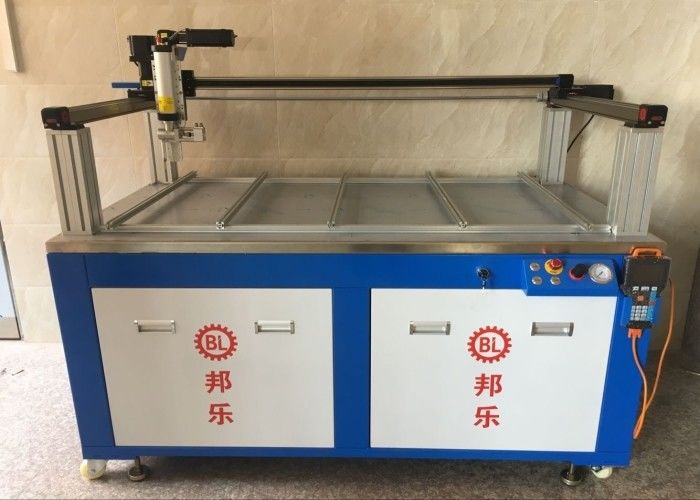

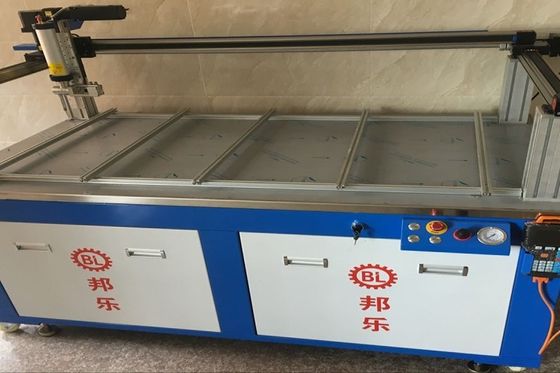

Glue dispenser, glue dispensing machine, auto glue dispensing machine for LED lens

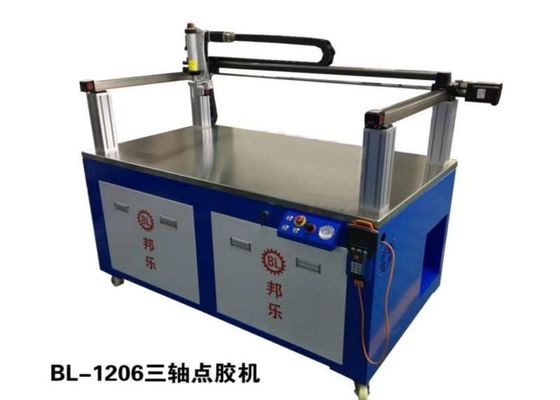

BL-1206 three-axis glue dispenser
LED lens glue dispensing machine
product description:
1. Cabinet structure, beautiful appearance and strong consistency;
2. The mechanical parts are processed by CNC. Ensure the precision and consistency of the parts;
3, the standard assembly process, 100% strict machine calibration standards to ensure the accuracy of the machine;
4, high standard core components, stable and reliable quality, durable;
5. Smooth and smooth, low noise when running at high speed;
6, using the special assembly process of the synchronous pulley and motor, completely solve the tension and loosening problem of the synchronous belt after long-term use;
7. Modular assembly process, each key component and key position can be dismantled separately, and accidentally damaged parts can be quickly replaced;
| Product model: | BL-1206 |
| Equipment structure: | cabinet structure |
| Processing size: | product outer length 1200MM, width 600MM (non-standard size can be customized) |
| Processing weight: | 18KG X 1PCS |
| Rack part: | industrial aluminum profiles |

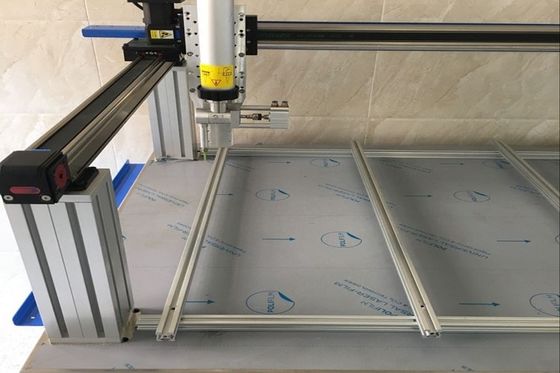

| Drive motor: | precision stepper motor + timing belt + linear guide |
| Mechanical hand: | using high quality robots, |
| Power section: | industrial power supply |
| Lead system: | precision slider |
| Motion Control: | Professional Motion Controller |
| Control mode: D | SP plus handheld box |
| Editing system: | handheld box man-machine interface |
| Alignment system: | manual alignment |
| External interface: | RS-232 |
| Working power supply: | AC220V 50HZ 200W |
| Control voltage: | 24V |
| Use air pressure: | 0.2-0.7MPA |
| Maximum speed: | 500mm |
| Positioning accuracy: | 0.01mm |
| Repeatability: | 0.01mm |
| Work beat: | depending on the product and equipment spacing, |
| Machine weight: | about 68kg |
| Working temperature: | 5-50 ° C, well ventilated |
Suitable for glue:
UV glue, AB glue, EOOXY (black glue) white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint screw fixer, etc.
Suitable:
LED flood light, LED wall washer, purification lamp, floodlight, computer case, PC board, LCD, LED, DVD, clock, toy industry medical equipment, etc.
