Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip

I'm Online Chat Now

Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip

China Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip supplier
Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip supplier Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip supplier Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip supplier Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip supplier Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip supplier Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip supplier

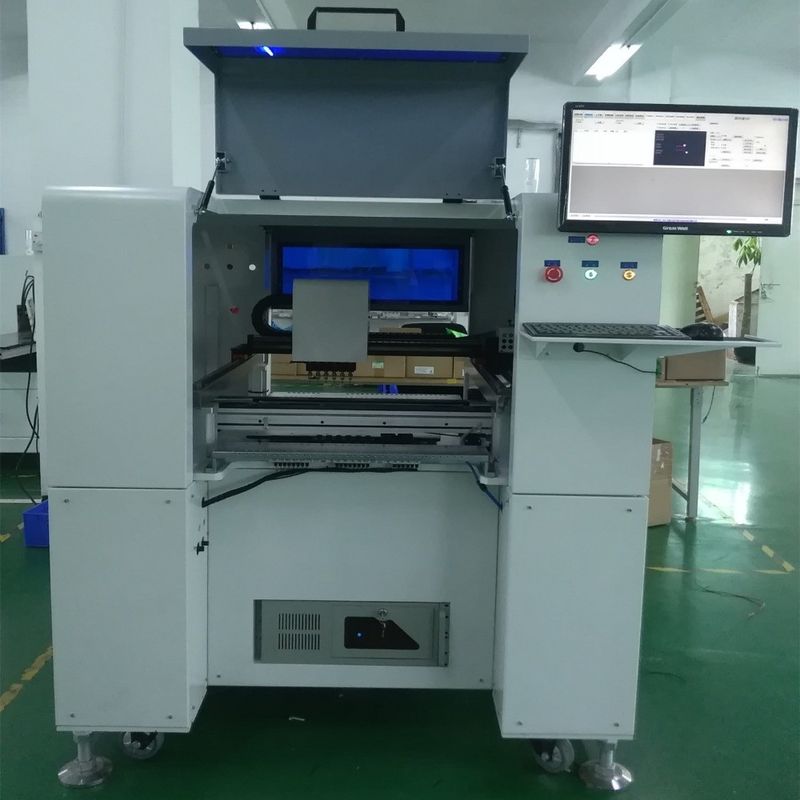

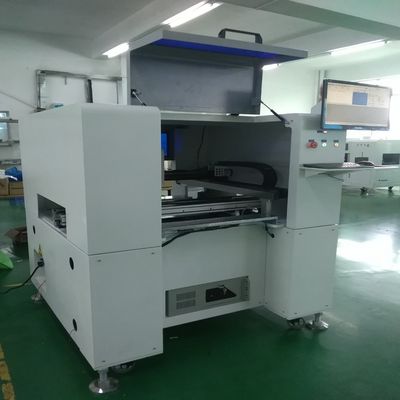

Large Image :  Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: H560

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: discuss price
Packaging Details: Standard wooden export package 2200MM(L)*1400MM(W)*1650MM(H)
Supply Ability: 100 Piece/Pieces per Month
Contact Now
Detailed Product Description
Customize: Yes Speed: 20000-30000CPH
Resolution: 0.05mm Feeder: 45pcs
Weight: 1000KG Power Supply: 220V
PCB Range: 500*400mm Applicable Components: 0603, 0805, 2020,3030,5050
PCB Board: Driver Board And LED Light Port: Shenzhen

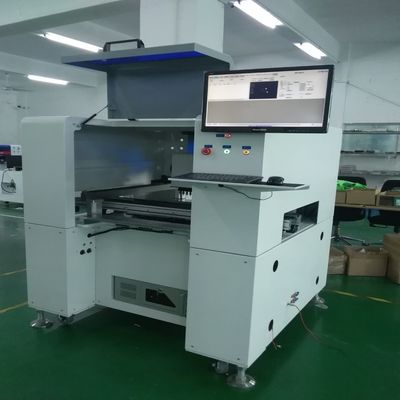

SMT pick and place machine 6 heads for LED power driver and IC chip, fully automatic multi-function mounting machine





Product name: Automatic Online type multifictional pick and place machine H560



Product main features:


1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
6. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.
7. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.
8. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.
9. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.
10. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.
11. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.
12. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle 12;

13. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor;



Technical parameters:





Machine Model WANBO H560
The biggest circuit board area 500×400mm
Maximum moving range X axis 500mm, Y axis 400mm
Z axis Maximum moving range 12mm
Typical patch speed 15000-20000cph
Typical LED lens patch speed 20000cph-35000cph
The theory of maximum patch speed 35000cph
positionaI accuracy ±0.05mm
Location way Mark point camera + 6 sets sony Visual camera positioning + 1 industrial camera
Components can be placed 0603 above to 7272 resistors and capacitors, and all kinds of 0603 and 3528, 5050, 5630, 5730, meet placement of SOP, SOT chip, LED power driver, driver board, and compatible with all kinds of high-power chip SMD componets, LED lens placement
Programm method Computer graphical programming + visual camera positioning
Feeder applicable 8mm, 12mm, 16mm and 24 belt type feeder, or vibration plate
Number of feeder Standard placed 45pcs feeders of 8mm
nozzles JUKI nozzle 504, 505 and 506

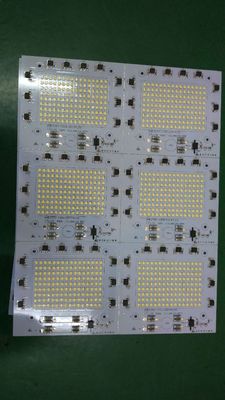

Product LED fluorescent tube, soft light belt, power drive, guardrail tube, module, display and other LED applications
operating system WINDOWS XP, WIN 7
negative pressure An external air source 0.55MPA
Power and rate 220V, 50Hz, 1.2KW
Weight 1000Kg
Dimension

1300MM(L)*1300MM(W)*1450MM(H)





Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC ChipMultifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC ChipMultifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC ChipMultifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC ChipMultifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC ChipMultifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip

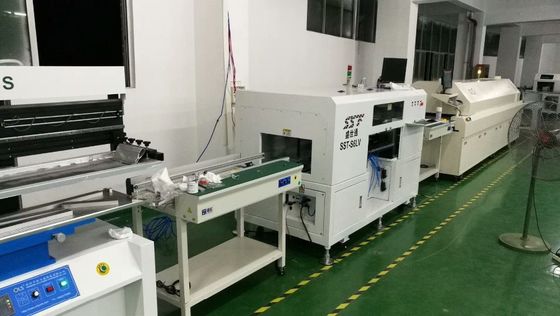

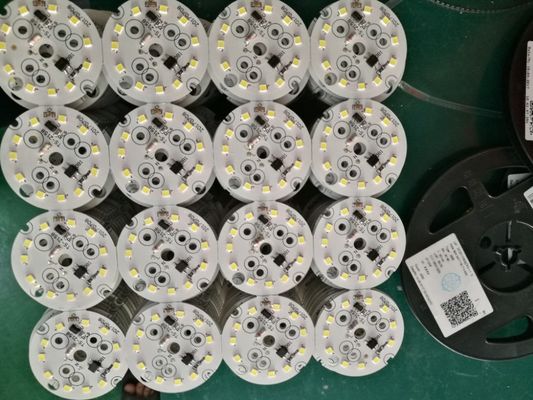

Real Working site picture from our customer factory:



Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip



Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip





Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip







Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC ChipMultifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC ChipMultifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC ChipMultifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip
