Stable Performance LED SMT Machine , Multifunctional SMT Production Line

Stable Performance LED SMT Machine , Multifunctional SMT Production Line

Stable Performance LED SMT Machine , Multifunctional SMT Production Line
Stable Performance LED SMT Machine , Multifunctional SMT Production Line Stable Performance LED SMT Machine , Multifunctional SMT Production Line Stable Performance LED SMT Machine , Multifunctional SMT Production Line Stable Performance LED SMT Machine , Multifunctional SMT Production Line Stable Performance LED SMT Machine , Multifunctional SMT Production Line Stable Performance LED SMT Machine , Multifunctional SMT Production Line

Large Image :  Stable Performance LED SMT Machine , Multifunctional SMT Production Line Get Best Price

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: S6LV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: discuss price
Packaging Details: Standard wooden export package 2200MM(L)*1400MM(W)*1650MM(H)
Supply Ability: 100 Piece/Pieces per Month
Detailed Product Description
Customize: Yes Speed: 20000-30000CPH
Resolution: 0.05mm Feeder: 45pcs
Weight: 1000KG Power Supply: 220V
PCB Range: 500*400mm Applicable Components: 0603, 0805, 2020,3030,5050
PCB Board: Driver Board And LED Light Port: Shenzhen
High Light:

smt pick place machine

,

smt production line equipment

LED bulb light tube light smt line, LED power driver smt production line





Product name: Automatic Online type multifictional pick and place machine S6LV complete SMT line



Product main features:


1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
6. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.
7. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.
8. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.
9. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.
10. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.
11. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.
12. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle 12;

13. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor;



Technical parameters:





Machine Model

WANBO H560

The biggest circuit board area

500×400mm

Maximum moving range

X axis 500mm, Y axis 400mm

Z axis Maximum moving range

12mm

Typical patch speed

15000-20000cph

Typical LED lens patch speed

20000cph-35000cph

The theory of maximum patch speed

35000cph

positionaI accuracy

±0.05mm

Location way

Mark point camera + 6 sets sony Visual camera positioning + 1 industrial camera

Components can be placed

0603 above to 7272 resistors and capacitors, and all kinds of 0603 and 3528, 5050, 5630, 5730, meet placement of SOP, SOT chip, LED power driver, driver board, and compatible with all kinds of high-power chip SMD componets, LED lens placement

Programm method

Computer graphical programming + visual camera positioning

Feeder applicable

8mm, 12mm, 16mm and 24 belt type feeder, or vibration plate

Number of feeder

Standard placed 14pcs feeders of 8mm

nozzles

JUKI nozzle 504, 505 and 506

Product

LED fluorescent tube, soft light belt, power drive, guardrail tube, module, display and other LED applications

operating system

WINDOWS XP, WIN 7

negative pressure

An external air source 0.55MPA

Power and rate

220V, 50Hz, 1.2KW

Weight

1500Kg

Dimension

1300MM(L)*1300MM(W)*1450MM(H)

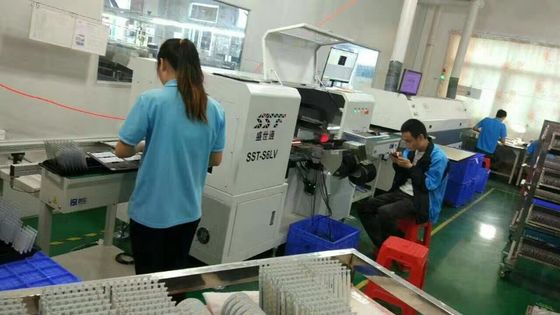

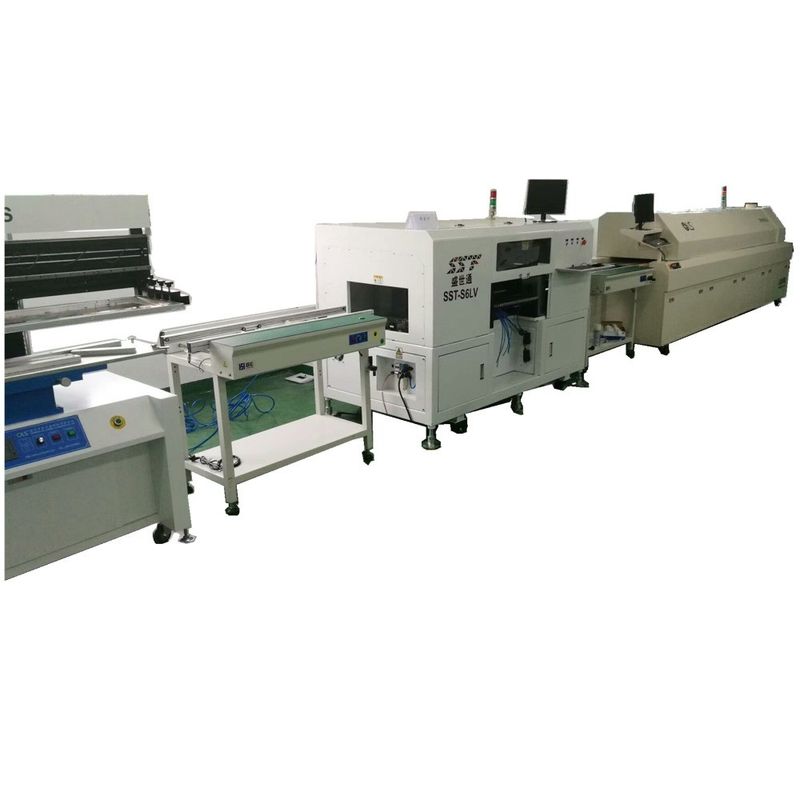

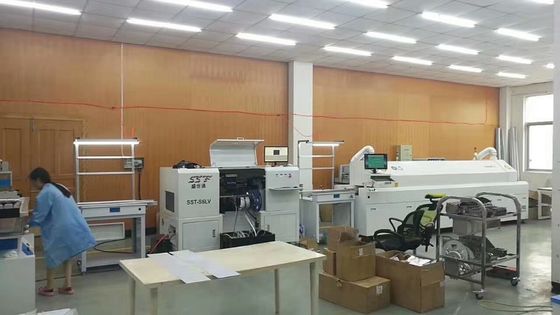

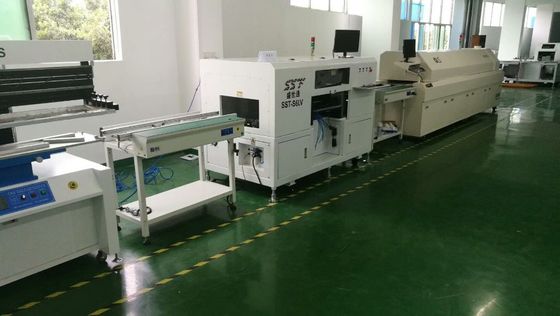

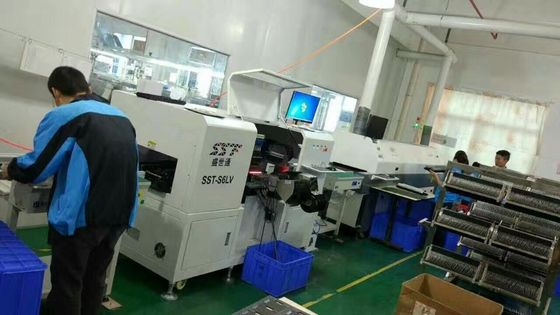

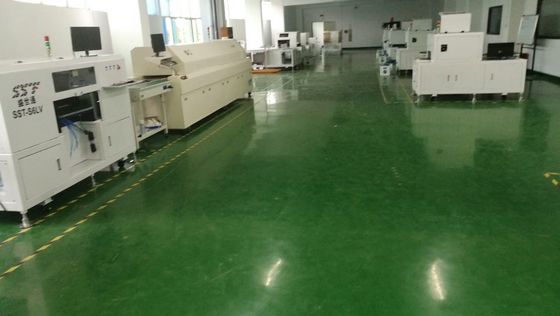

Real Working site picture from our customer factory:



Stable Performance LED SMT Machine , Multifunctional SMT Production Line 0



Stable Performance LED SMT Machine , Multifunctional SMT Production Line 1





Stable Performance LED SMT Machine , Multifunctional SMT Production Line 2







Stable Performance LED SMT Machine , Multifunctional SMT Production Line 3Stable Performance LED SMT Machine , Multifunctional SMT Production Line 4Stable Performance LED SMT Machine , Multifunctional SMT Production Line 5Stable Performance LED SMT Machine , Multifunctional SMT Production Line 6
