Economic 8 Zone SMT Reflow Oven / Hot Air Reflow Oven 8800LS 400mm mesh width

I'm Online Chat Now

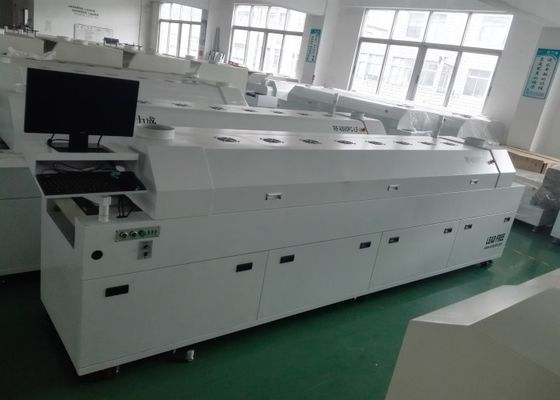

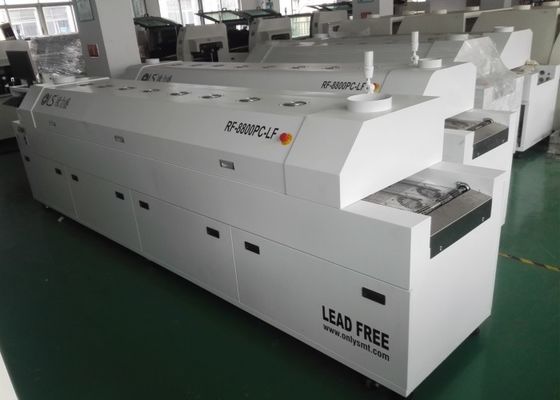

Economic 8 Zone SMT Reflow Oven / Hot Air Reflow Oven 8800LS 400mm mesh width

China Economic 8 Zone SMT Reflow Oven / Hot Air Reflow Oven 8800LS 400mm mesh width supplier
Economic 8 Zone SMT Reflow Oven / Hot Air Reflow Oven 8800LS 400mm mesh width supplier Economic 8 Zone SMT Reflow Oven / Hot Air Reflow Oven 8800LS 400mm mesh width supplier

Large Image :  Economic 8 Zone SMT Reflow Oven / Hot Air Reflow Oven 8800LS 400mm mesh width

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOHITECH
Certification: CE
Model Number: 8800PC

Payment & Shipping Terms:

Minimum Order Quantity: 1-4 Pieces
Price: discuss price
Contact Now
Detailed Product Description
Type: Reflow Solder Usage: PCB Soldering
Voltage: AC380V 50-60Hz Weight: 1200KG
Dimensions: 4200*900*1400mm Rated Duty Cycle: 90%
Rated Capacity: 7KW Current: 20-50A
Heating Method: Hot Air PCB Width: Max 400mm
Temperature Range: Room Temperature ~ 300 Application: SMT LED Packaging PCB Welding
Heating Zones: Up 8 Down 8 Zones Function: Welding Solder Paste
Heating Zone Length: 3000mm Warranty: 1 Year
Color: White SIZE: 4200* 900*1400mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Selling Units: Single Item
Single Package Size : 440X110X160 Cm Single Gross Weight: 1400.0 Kg
Package Type: Wooden Box Package

Tube light SMT line hot air economic 8 zone reflow soldering oven 8800LS


Product name: Medium 8 zone reflow soldering oven 8800LS

Model: 8800LS

Product model: RF-8800PC/6600PC-LF

Features:

1. Adopt brand LCD computer + PLC intelligent control system, the temperature control accuracy is ±1 °C (if the computer crashes unexpectedly, it can realize offline work without affecting production), and ensure the control system is stable and reliable;
2. Windows 10 operation interface, powerful, easy to operate;
3. The upper furnace is opened with a double cylinder lifting machine to ensure safety and reliability;
4. Equipped with mesh belt tensioning device, the transportation is stable, no jitter, no deformation, and ensuring smooth PCB transportation;
5. Synchronous rail transmission mechanism (can be connected to the automatic placement machine) to ensure accurate and high service life of the guide rail; (optional guide rail)
6. Automatically control the lubrication system, which can automatically lubricate the transmission chain by setting the refueling time and fueling amount;
7. All heating zones are PID controlled by computer (can be separately opened in the temperature division zone. Partition heating can be used to reduce the starting power);
8. The network/chain transmission is fully closed-loop controlled by the computer to meet the simultaneous production of different types of PCBs;
9. With fault sound and light alarm function;
10. With leakage protector to ensure the safety of operators and control systems;
11. Built-in UPS and automatic delay shutdown system to ensure that PCB and reflow soldering machine are not damaged when power is off or overheated;
12. Using the world's leading hot air circulation heating method of HELLER, high-efficiency supercharged accelerating air passage, greatly increasing the circulating hot air flow, heating up quickly (about 20 minutes), high thermal compensation efficiency, high temperature welding and curing;
13. Each temperature zone is provided with independent temperature sensing sensors to monitor and compensate the temperature balance of each temperature zone in real time;
14. The operating system with password management prevents the unrelated personnel from changing the process parameters. The operation record management can trace the process of changing the process parameters to facilitate the improvement of management. It can store the user's existing temperature and speed settings and the temperature curve under the settings. Print all data and curves;
15. Integrated control window, computer switch, test curve, print curve and transmission data can be easily operated, and the design is user-friendly. Equipped with a three-channel temperature curve online test system, the actual temperature curve of the welded object can be detected at any time (no additional temperature curve tester is required);
16. The rapid cooling system from international technology adopts magnifying glass centralized high-efficiency quenching, the cooling speed can reach 3.5~6°C/sec, and the management is very convenient; the external forced cooling device ensures the crystallization of solder joints (Option option, standard) Configured to force natural air cooling);
17. Rosin recycling system: Rosin directional flow, replacement and cleaning is very convenient. Use special pipeline to transport waste gas, life-long maintenance-free;
18. Special supercharged air transport structure and special-shaped heating wire design, no noise, no vibration, has a very high heat exchange rate, the temperature difference Δt generated between the BGA bottom and the PCB board is extremely small, which is most consistent with the lead-free process. Requirements, especially for lead-free products with high welding requirements.

Parameter:

model

8800

6600

Number of heating zones

UP 8 Down 8

UP 6 Down 6

Heating zone length

3000mm

2400mm

heating method

Full Hot air

PCB maximum width

400mm

Transportation direction

L to R

Transport belt height

Mesh belt 880±20mm

Transmission method

Net transport

Transport belt speed

0-2000mm/min

power supply

5-wire 3-phase AC 380V 50/60Hz

Starting power

30KW

28KW

Normal operating power

7KW

5KW

Heating time

Around 15 min

Temperature control range

Room temperature ~400℃

Temperature control method

PID control + SSR drive

Temperature control accuracy

±1℃

Abnormal alarm

Abnormal temperature alarm

Dimensions (length * width * height)

4200*900*1400

3600*900*1400

Machine weight

1200kg

900kg


Economic 8 Zone SMT Reflow Oven / Hot Air Reflow Oven 8800LS 400mm mesh width
