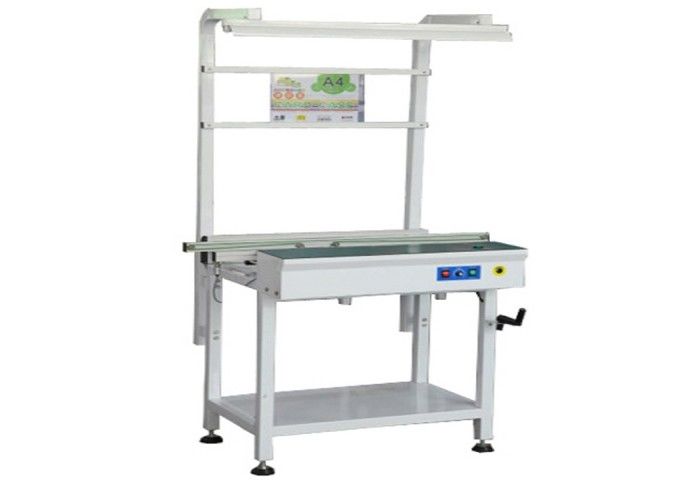

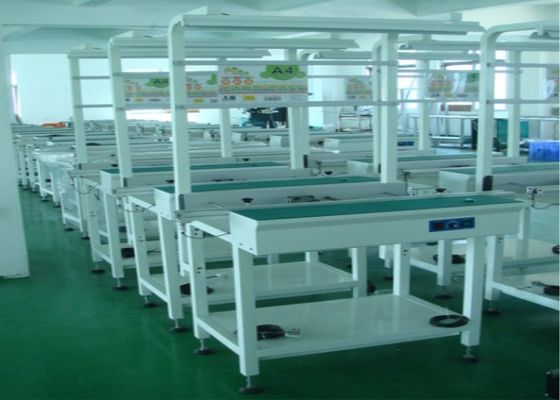

Width Adjustable SMT PCB Conveyor / Handling Equipment With Fluorescent Lamps

Width Adjustable SMT PCB Conveyor / Handling Equipment With Fluorescent Lamps

Width Adjustable SMT PCB Conveyor / Handling Equipment With Fluorescent Lamps
Width Adjustable SMT PCB Conveyor / Handling Equipment With Fluorescent Lamps Width Adjustable SMT PCB Conveyor / Handling Equipment With Fluorescent Lamps

Large Image :  Width Adjustable SMT PCB Conveyor / Handling Equipment With Fluorescent Lamps Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: WANBO
Model Number: 350J

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: discuss price
Packaging Details: Stretch film packing
Supply Ability: 1000pcs/month
Detailed Product Description
Product Name: Smt PCB Conveyor Power: AC220V, 50Hz
Speed: 0-10000mm/min Width: 0-350mm
High Light:

pcb handling equipment

,

smt conveyor

PCB conveyor, smt pcb conveyor belt with lamp, adjustable width conveyor





Product name: smt pcb conveyor, Adjustable inline conveyor for smt line





Features


1. Taiwan WTW speed motor control;
2. Connection length 1000mm 1200mm 1500mm 2500mm optional
3. Green flat belt transmission;
4. Special aluminum profile rails;
5. Front and rear workbench with special aluminum profile protection;
6. Gear and rack widening structure;
7. Double imported photoelectric switch; equipped with signal communication interface
8. Relay control
9. Surface treatment: electrostatic spray.
10. PCB width 50-300mm
11. Left to right;
12. Front rail fixing
13. The whole machine is sprayed and processed, and the color is gray.
14. With fluorescent lamps, process instructions.



Second, SPECIFICATIONS

PCB max width 350mm
Transfer height 880 ± 30 mm
Transfer speed 0-1500mm/Min
Control mode Relay sequence control
Working mode Manual and automatic working modes, can communicate with the front or the rear
Power 220V,single phase,50/60Hz
Power rate 40W
weight Approx.50kg
dimension(L×W×H) L1200×W550×H1000mm



Width Adjustable SMT PCB Conveyor / Handling Equipment With Fluorescent Lamps 0
