1 Meter SMT PCB Conveyor Relay Control For PCB Buffering And Loading

I'm Online Chat Now

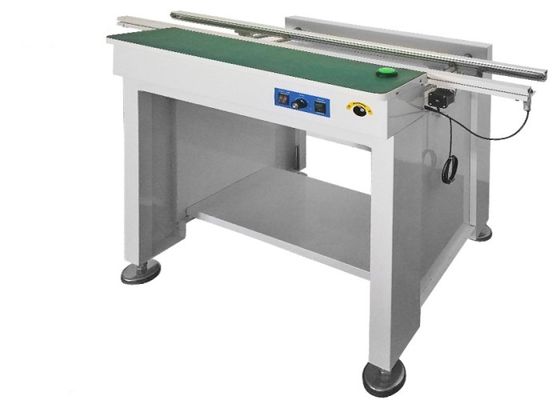

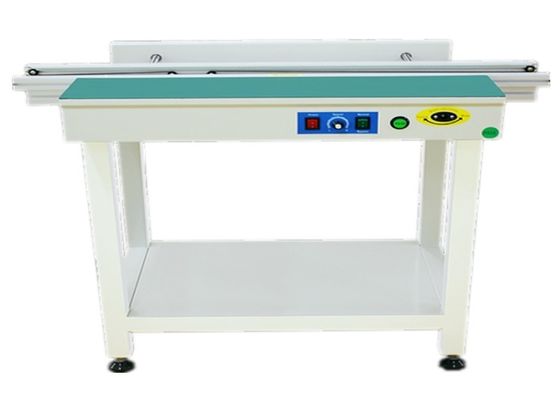

1 Meter SMT PCB Conveyor Relay Control For PCB Buffering And Loading

China 1 Meter SMT PCB Conveyor Relay Control For PCB Buffering And Loading supplier
1 Meter SMT PCB Conveyor Relay Control For PCB Buffering And Loading supplier 1 Meter SMT PCB Conveyor Relay Control For PCB Buffering And Loading supplier 1 Meter SMT PCB Conveyor Relay Control For PCB Buffering And Loading supplier

Large Image :  1 Meter SMT PCB Conveyor Relay Control For PCB Buffering And Loading

Product Details:

Place of Origin: CHINA
Brand Name: WANBO
Model Number: 350J

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: discuss price
Packaging Details: Stretch film packing
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Smt PCB Conveyor Power: AC220V, 50Hz
Speed: 0-10000mm/min Width: 0-350mm

smt PCB conveyor machine,1.0m inspection conveyors for PCB buffering and loading





Product name: smt pcb conveyor, Adjustable inline conveyor for smt line





Features


1. Taiwan WTW speed motor control;
2. Connection length 1000mm 1200mm 1500mm 2500mm optional
3. Green flat belt transmission;
4. Special aluminum profile rails;
5. Front and rear workbench with special aluminum profile protection;
6. Gear and rack widening structure;
7. Double imported photoelectric switch; equipped with signal communication interface
8. Relay control
9. Surface treatment: electrostatic spray.
10. PCB width 50-300mm
11. Left to right;
12. Front rail fixing
13. The whole machine is sprayed and processed, and the color is gray.
14. With fluorescent lamps, process instructions.



SPECIFICATIONS



PCB max width 350mm
Transfer height 880 ± 30 mm
Transfer speed 0-1500mm/Min
Control mode Relay sequence control
Working mode Manual and automatic working modes, can communicate with the front or the rear
Power 220V,single phase,50/60Hz
Power rate 40W
weight Approx.50kg
dimension(L×W×H) L1200×W550×H1000mm



1 Meter SMT PCB Conveyor Relay Control For PCB Buffering And Loading
