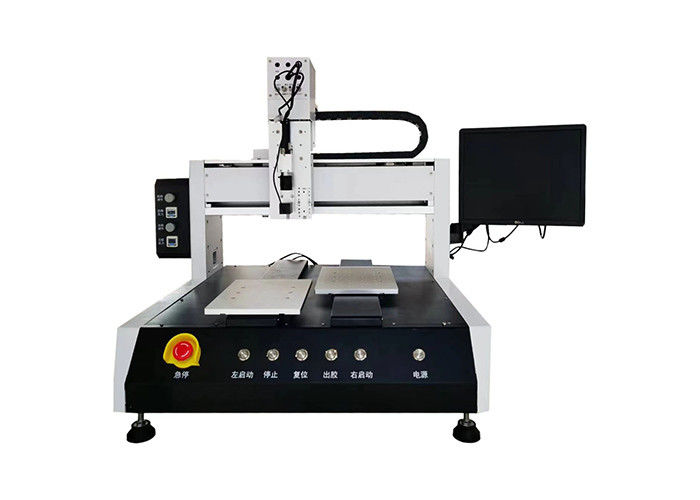

CCD Vision Positioning Glue Dispenser Machine High Speed With Injection Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | CCD Vision Positioning Desktop Dispenser | Power Supply: | AC220V 50-60HZ |
|---|---|---|---|
| Speed: | 800mm/s | Weight: | 150kg |
| Size: | L=950mm,W=850mm,H=850mm | Positioning Accuracy: | ±0.02mm |
| High Light: | CCD Vision Positioning Glue Dispenser Machine,Servo motor Glue Dispenser Machine,High Speed smt glue dispenser |
||
CCD vision positioning high-speed desktop dispenser for SMT
HSY-300 CD vision positioning high-speed desktop dispenser
SMT dispensing machine
product description:
1. CCD visual positioning,Servo motor drive；Double Platforms
2. Cabinet structure, beautiful appearance and strong consistency;
3. The mechanical parts are processed by CNC. Ensure the precision and consistency of the parts;
4, the standard assembly process, 100% strict machine calibration standards to ensure the accuracy of the machine;
| Product model: | HSY-300 |
| Equipment structure: | Steel structure |
| Processing size: | Y1:200mm*300mm Y2:200mm*300mm |
| Processing weight: | 10KG X 2PCS |
Suitable for glue:
UV glue, AB glue, EOOXY (black glue) white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint screw fixer, etc.
