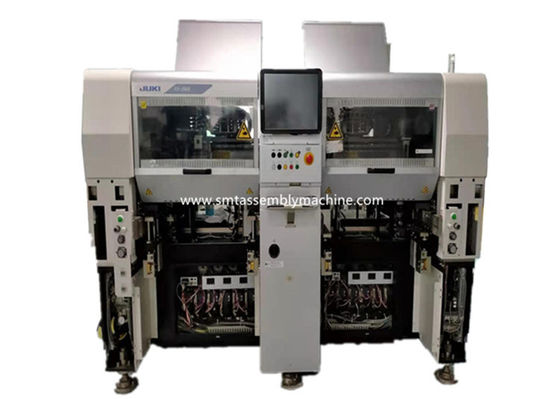

90000 chips/hour Used SMT Machine JUKI FX-3 FX-3RL FX-3L FX-3RL SMT Chip Mounter

90000 chips/hour Used SMT Machine JUKI FX-3 FX-3RL FX-3L FX-3RL SMT Chip Mounter
90000 chips/hour Used SMT Machine JUKI FX-3 FX-3RL FX-3L FX-3RL SMT Chip Mounter
video play

Large Image :  90000 chips/hour Used SMT Machine JUKI FX-3 FX-3RL FX-3L FX-3RL SMT Chip Mounter Get Best Price

Product Details:
Place of Origin: JAPAN
Brand Name: JUKI
Certification: QC
Model Number: FX-3L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB50000-150000
Packaging Details: plywood box package
Payment Terms: T/T, Western Union
Supply Ability: 50pcs/month
Contact Now
Detailed Product Description
Product Name: Used JUKI FX-3L Smt Chip Mounter Model: JUKI FX-3L
Applicable Components: IC, BGA, TSOP, 0603 Pcb Size: 410*360MM
Usage: JUKI FX-3L Universal Smt Machine Speed: 90000 Chips/hour
High Light:

JUKI Used smt machine

,

90000 chips/hour Used smt machine

,

Used JUKI SMT Chip Mounter

Equipment name: JUKI FX-3, JUKI FX-3L placement machine, second-hand JUKI FX-3 placement machine, FX-3RL used placement machine, JUKI FX-3RAL module 24-head high-speed placement machine, FX-3RA large high-speed modular placement machine



Introduction to the device

JUKI FX-3RL placement machine

peculiarity

★ Chip element 90.000CPH (0.040 sec/chip, optimal conditions) 66.000CPH chip (according to IPC9850) 0402 (01005) chip - 33.5mm square element (or diagonal length 47mm)

★ Laser identification: ±0.05mm (soil 3o)

★ Using a new linear servo motor and fully closed-loop control ★, it is possible to produce ultra-long substrates for LED lighting products, etc

★ The electric belt feeder and the mechanical belt feeder are switched ★by a unified changer, and the structure of 2 tables× 4 shaft arms× 4 placement heads, and 24 suction nozzles

★6. The nozzle multi-kinetic laser placement head is uniformly recognized ★in high-speed movement (on-the-fly), and the 15-inch large touch display is displayed

90000 chips/hour Used SMT Machine JUKI FX-3 FX-3RL FX-3L FX-3RL SMT Chip Mounter 0

JUKI FX-3 parameter

Component placement speed (chip components) Under optimal conditions: 0.040 sec/chip (90,000CPH) *4 laser mount heads× (24 nozzles)
Number of feeders: Up to 120 pcs (when using 8mm belt feeder)
*Placement speed varies depending on conditions
Model name High-speed modular placement machine FX-3RL
Substrate size

Module height L substrate (410×360mm) ○

510×360mm) * ○ for L-wide substrate

XL-type substrate (610mm×560mm) ○
Component height 6mm specifications ○
Component size Laser recognition 0402 (imperial 01005) ~ □33.5mm
Component placement speed (chip components)

Chip components Optimal conditions 0.040 sec/chip (90,000CPH)

(IPC9850) 66,000CPH
Component placement accuracy Laser Identification ±0.05mm (Cpk≧1)
Component placement type Up to 120 types (converted to 8mm belt)
power supply Three-phase AC200~415V
Rated power 8.5KVA/9.5kva
Use air pressure 0.5±0.05Mpa
Air consumption (standard state) Maximum 150L/min
Device size (W×D×H**)

L substrate 2,650×1,650×1,530mm

L-wide substrate with * 2,880×1,650×1,530mm

XL type substrate 2,880×1,1850×1,530mm
weight

L, L-wide substrate approx. 3,500kg

XL-type substrate Approx. 3,750kg



Other new and used JUKI smt machine models:

JUKI KE-710

JUKI KE-720

JUKI KE-730

JUKI KE-740

JUKI KE-750

JUKI KE-760

JUKI KE-2000

JUKI KE-2010

JUKI KE-2020

JUKI KE-2030

JUKI KE-2040

JUKI KE-2050/2050L

JUKI KE-2060/2060L

JUKI KE-2070/2070M/2070E/2070L

JUKI KE-2080/2080L/2080M

JUKI KE-3010

JUKI KE-3020/3020VAM/3020VL/3020VM

JUKI FX-1/1R/1L

JUKI FX-2/2R/2L

JUKI FX-3/3R/3L/3RAL

JUKI FX-7R

JUKI RS-1R

JUKI RX-7R

JUKI JX100/100LED

JUKI JX200/200LED

JUKI JX300/300LED



JUKI SMT machine Accessories include: all kinds of original, domestic nozzles, FEEDER, boards, lasers, solenoid valves, inductors, cylinders, tank chains, etc.), laser maintenance, board maintenance and so on



Other models of new or used JUKI SMT placement machines:

all spare parts of Juki smt machine can provide.
