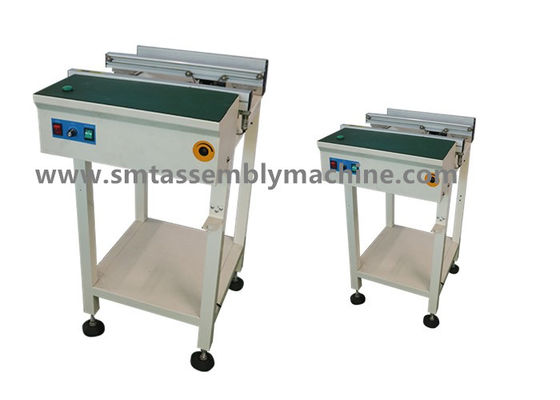

Round Belt / Flat Belt SMT PCB Conveyor 0.5m - 1.5m Table Durable

Round Belt / Flat Belt SMT PCB Conveyor 0.5m - 1.5m Table Durable

Round Belt / Flat Belt SMT PCB Conveyor 0.5m - 1.5m Table Durable
Round Belt / Flat Belt SMT PCB Conveyor 0.5m - 1.5m Table Durable Round Belt / Flat Belt SMT PCB Conveyor 0.5m - 1.5m Table Durable

Large Image :  Round Belt / Flat Belt SMT PCB Conveyor 0.5m - 1.5m Table Durable Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WANBO
Certification: QC
Model Number: 350J
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: 1.Wooden case and vacuum package 2.As your requirements
Supply Ability: 1000pcs/month
Detailed Product Description
Product Name: Smt PCB Conveyor Conveyor Type: Round Belt Or Flat Belt
Conveyor Height: 900±20 (or User Specified) Name: Faroad SMT Buffer Conveyor
Condition: New Warranty: 1 Year
High Light:

1.5m Table SMT PCB Conveyor

,

durable SMT PCB Conveyor

The PCB is transferred to the JUKI2070M mounter through the SMT table for mounting



Transfer circuit board SMT splicing table conveyor belt 3MM round green belt YS24

Plate adapter with anti-static work surface as standard SMT board loading machine SMT PCB Conveyor

SMT transfer table transfer PCB transport speed 0-3M/Min steplessly adjustable

Power 25W SMT transfer board transfer table material aluminum profile green belt

SMT transfer table 0.6m 1.5m with signal communication interface Docking presses

White SMT splicing table 0.5m 0.6m 1m with aluminum profile rail Panasonic CM602



Plate adapter

Peculiarity:

This equipment is suitable for transmission and detection in SMT production lines

1. Self-developed control system, stable and reliable

2. The transmission adopts stepper motor, which has stable performance and is easy to use.

3. Internal counterweight design to improve machine stability.

4. Adopt special customized SEMSOR, accurate and stable.

5. Adopt imported ball screw to widen, smooth and durable.

6.Variable transmission adjustment, easy and fast to use.

7. Compatible SMEWA interface.



Round and flat belts are available as standard with flat belts
Corresponding track length
0.5m track connection table
0.8 m track connection table
1m rail connection table
1.2 m track connection
1.5m rail connection table



Technical parameters

  Machine model

Substrate size

(L*W*H; mm)

Machine dimensions

(L*W*H; mm)

Fuselage weight

(kg)

Monorail Y-050BC 50*50~400*350(mm) 500*680*900(mm) 55
Y-080BC 50*50~600*350(mm) 800*680*900(mm) 75
Y-100BC 50*50~800*350(mm) 1000*680*900(mm) 90
Y-150BC 50*50~1300*350(mm) 1500*680*900(mm) 120
Dual Y-050DC 50*50~400*350(mm)*2 500*1170*900(mm) 80
Y-080DC 50*50~600*350(mm)*2 800*1170*900(mm) 110
Y-100DC 50*50~800*350(mm)*2 1000*1170*900(mm) 130
Y-150DC 50*50~1300*350(mm)*2 1500*1170*900(mm) 170





SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.



Round Belt / Flat Belt SMT PCB Conveyor 0.5m - 1.5m Table Durable 0







The company distributes and retails SMT equipment and accessories, supplying Samsung placement machines, JUKI placement machines,
FUJI placement machines, YAMAHA placement machines, Panasonic placement machines,
SANYO, SONY, PHILIPS, HITACHI, GSM, MIRAI, IPULSE, CASIO, EVEST, UZUKI, CHINA PLACEMENT MACHINE,
SPECIAL CUSTOMIZATION AND OTHER MECHANICAL EQUIPMENT AND ACCESSORIES.
