Used JUKI KE2070 SMT Assembly Equipment Bluetooth Headset Charger
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Used JUKI 2070 Smt Machine | Model: | JUKI KE-2070 |
|---|---|---|---|
| Lmage Recognition: | Laser | Warranty: | 2660 Hour |
| Suitable For Production: | Bluetooth Headset Charger | Weight: | Approximately 1,500kg |
| High Light: | Used JUKI KE2070 SMT Assembly Equipment,Element Height 6mm SMT Assembly Equipment,Used JUKI KE2070 SMT Line Equipment |
||

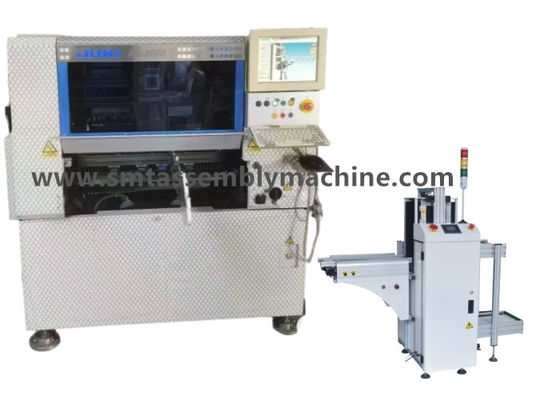

Second-hand JUKI KE-2070 smt assembly equipment SMD Bluetooth headset charger
JUKI KE-2070 Pick And Place Machine with a theoretical 23300 points per hour
JUKI KE-2070 equipped with 6 standard SMD heads Element height 6mm specifications
JUKI KE-2070 Pick And Place Machine Remote technical support of equipment
Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip
Shenzhen Wanbo High-tech Co., Ltd. has a JUKI senior engineer team with rich maintenance experience, specializing in providing JUKI series placement machine software and hardware maintenance and troubleshooting. It mainly includes JUKI laser head, CPU motherboard SUB-CPU board, drive board X/Y/Z/T axis driver, head board, image control card, I/O board, JUKI servo motor, camera, display touch screen, servo motor and other maintenance and replacement services. The company's fees are reasonable, the warehouse accessories are sufficient, the maintenance cycle is short, the one-time repair success rate is high, and the Pearl River Delta region can provide door-to-door installation, commissioning, maintenance and maintenance.
Operation manual I
Step 3 Load a production program.
①Select thebutton from the main screen.
② The "Open" dialog box appears on the screen. Select the desired productionprogram, and select the <Open> button.
Procedure
1. Select a folder.
2.Select a file.
3.Select the <Open> button.
The selected file name appears here.
When the mounter is equipped with the automatic conveyor width adjustmentdevice (optional), the following message appears on the screen.
When you select the <Yes> button on this screen,the "Auto conveyor" dialog box appears on the screen.
Refer to Section 4.5.4.1.2 "Automatic conveyor width adjustment" of the"Instruction Manual CD" for details of automatic conveyor width adjustment.
WARNING
when you select the <Move> button on the "Auto conveyor" dialogbox, the conveyor starts moving. Before selecting this button,check to see if there is no substance that may be in contact withthe movable parts of the conveyor.
| Model name | High speed placement machine KE-2070M/L/E |
| Substrate size |
M substrate (330×250mm) ○ l For substrate (410×360mm) ○ E substrate (510×460mm) ○ |
| Element height |
6mm specifications ○ 12mm specifications ○ 20mm Specifications _ 25mm Specifications _ |
| Component size |
Laser identification 0402 (imperial 01005) chip ~ 33.5mm square element Image recognition 1.0×0.5mm~33.5mm square element |
| Component placement speed |
Optimal conditions 0.155 sec/chip (23300CPH) IC Component 4600CPH* |
| Component placement accuracy |
Laser recognition ±0.05mm Image recognition ±0.04mm |
| Component placement type | Up to 80 types (converted to 8mm belt) |
| power supply | Three-phase AC200~415V |
| Rated power | 3KVA |
| Use air pressure | 0.5±0.05Mpa |
| Air consumption | (Standard status) 345L/min |
| Device size (W×D×H) |
M substrate 1,400×1,393×1,455mm L substrate 1,500×1,500×1,455mm E substrate 1,730×1,600×1,455mm |
| weight | 1530kg |
Accessories include: all kinds of original, domestic nozzles, FEEDER, boards, lasers, solenoid valves, inductors,
cylinders, tank chains, etc.), laser maintenance, board maintenance and so on.
