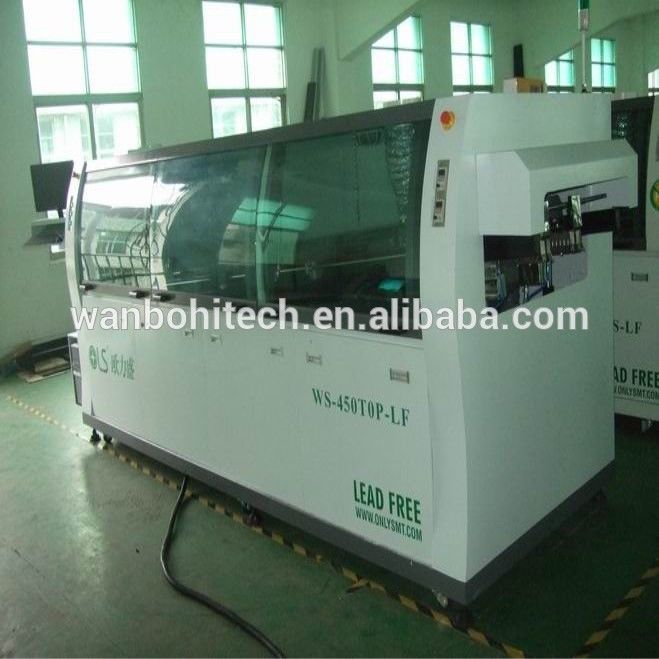

Computer Control Wave Soldering Machine LED Power Driver Soldering Use

Computer Control Wave Soldering Machine LED Power Driver Soldering Use

Computer Control Wave Soldering Machine LED Power Driver Soldering Use
Computer Control Wave Soldering Machine LED Power Driver Soldering Use

Large Image :  Computer Control Wave Soldering Machine LED Power Driver Soldering Use Get Best Price

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: 450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: discuss price
Packaging Details: Standard wooden export package 2200MM(L)*1400MM(W)*1650MM(H)
Supply Ability: 100 Piece/Pieces per Month
Detailed Product Description
Customize: Yes Speed: 30000CPH
Resolution: 0.5mm Feeder: 20pcs
Weight: 1500KG Power Supply: 220V
Port: Shenzhen
High Light:

wave soldering equipment

,

automatic wave soldering machine

Wave Soldering Machine Oven Top 450 series computer control LED power driver soldering





Top 450 series computer control wave soldering machine



Product Features:



 streamlined shape design, internal modular design, suitable for SMT and DIP parts of lead-free soldering;
 Full PC + PLC control system, Windows XP operating system;
 Move the use of rodless cylinder head drive, the German Siemens PLC control, stable and reliable; (stepper motor option)
 Flux automatic supply system with air pump and liquid level monitoring device, to maintain constant supply of flux;
 patented nozzle design, the peak width can be automatically adjusted with the PCB board size. To achieve ultra-low oxidative capacity;
 electrical components are all imported brands, all signal lines shielded;
 Warm up area using micro-hot air can speed the design cycle, the heating effect is more uniform;
 preheating system uses four sections individually controlled to ensure the welding process;
 Windows XP operating system, control software to support any switch in the English line;
 with intelligent fault diagnosis, automatic recording device status and operation of different users;
 Drive chain structure with double claw, to strengthen the adaptability of various PCB;
 track the use of force profiles, hardened, durable;
 Chain claw width can be adjustable with the PCB board size;
 automatic welding supply equipment to help economy. And installation of automatic cleaning device .. spray more effective protection nozzle clean;
 Stainless steel welding and exhaust filter to help economic spray device, a drawer-type modular structure to facilitate cleaning;
 patented nozzle design, the peak width can be automatically adjusted with the PCB board size. To achieve ultra-low oxidative capacity;
 precision welding flat multi-directional wave-shaped knob outside the system, easy adjustment;
 solder wave mode of economic operation, less oxidation, energy-saving;
 the use of centrifugal fans up and down the exhaust, reducing fire hazards;
 external flux sensor design, more reliable and durable;

1 Spray System

- imported special nozzles, atomizing spray area and depth adjustable; and self-cleaning spray device with alcohol;

- rodless cylinder head drive mobile adoption, the German Siemens PLC control, stable and reliable; (stepper motor option)
- flux automatic supply system with air pump and liquid level monitoring device, to maintain constant supply of flux;
- complete flux recovery and ventilation filtration systems, useful environmental protection;

- vehicle-mounted modular spray system, easy maintenance;

(2) preheating system

- preheated using hot air preheating zone 3 +1 micro-segment spotlights infrared preheating zone, plenty of power;
- four sections preheat zone length 1800mm, to do the holding temperature platform;
- preheating zone the whole observation window, the development design;

- heater modular design, easy maintenance;

3 tin furnace system

- molded arc tooth impeller, patented nozzle design to achieve ultra-low oxidative capacity;
- precision welding flat multi-directional wave-shaped knob outside the system, easy adjustment;
- solder wave with the central support system department, to avoid the large deformation of the welded plate negative impact;
- tin stove down and out of the system, and lift automatic limit control device, easy to operate;
- Patent oxidation device to reduce the generation of oxidized black powder;
- external thermal heating, tin stove is not easy deformation, tin-temperature stability;
- tin wave mode of economic operation, less oxidation, energy-saving;
- shock wave peak and lean forward from the low level design, energy efficiency and reduce the amount of oxidation;
- All titanium furnace and vents, corrosion-resistant high temperature, never deformation;

4 cooling system

- Dual cooling zone design, the use of strong cold way up and down the fan, spot light;

5 Transport and width-modulated system

- high-strength special alloy resistance to deformation of rail;
- strengthening the European Li Sheng-specific design to strengthen titanium claws, to ensure reliable transport;
- super flexible positioning screw-width-modulated systems;
6 Control System
- The whole machine adopts Siemens PLC + PC + temperature control module control, stable and reliable;
- electrical components are all imported brands, all signal lines shielded;

- powerful control software, running on Windows Xp system, in English and can switch at any time;



Technical parameters:
PCB Working width                                   0~450mm adjustable standard size
PCB conveyor height                                Max.750±50mm
PCB conveyor direction                            L-R
PCB conveyor speed                               0-2.0m/min
Conveyor path gradient                           3~7
Preheating zone length                            2000mm(4*500mm)
Preheating zone number                         4
Preheating temperature                          0~250℃
Power for preheating                              13kw
Power for heat compensation                 2kw
Solder type                                              lead free welding material/common welding material
Solder volume                                        300-400kg
Solder temperature                                0~350±1℃
Power for solder                                     12kw
Temperature control type                       P.I.D
Solder fluxes                                          10~100ml/min
Refrigeration temperature                     10℃ bellow
Sprayer Moving type                              SMC Rodless cylinder
Power                                                     3 phase 5 lines (5W,3P) 380V
Power for heating up                              25kw
Power for operation Approx.                  8kw
Air supply                                                5kg/cm²
Weight Approx.                                      1800kg
Dimensions L*W*H                                 4500*1500*1750mm
