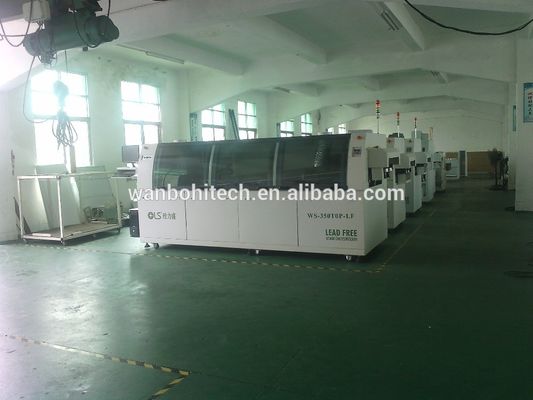

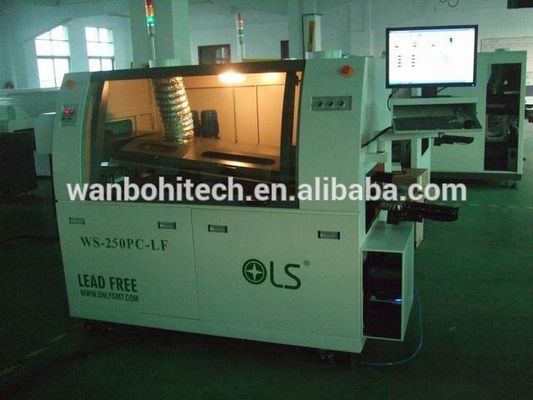

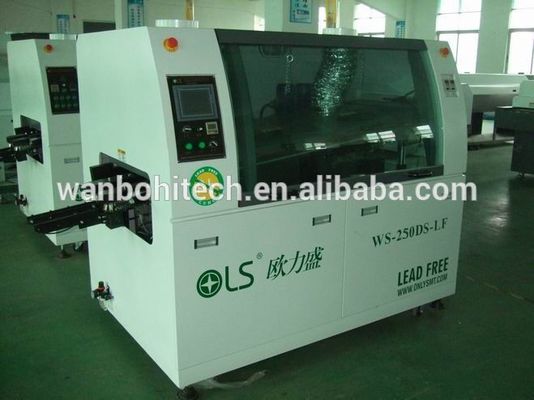

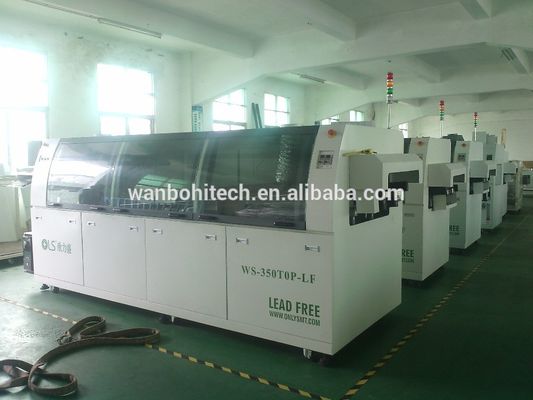

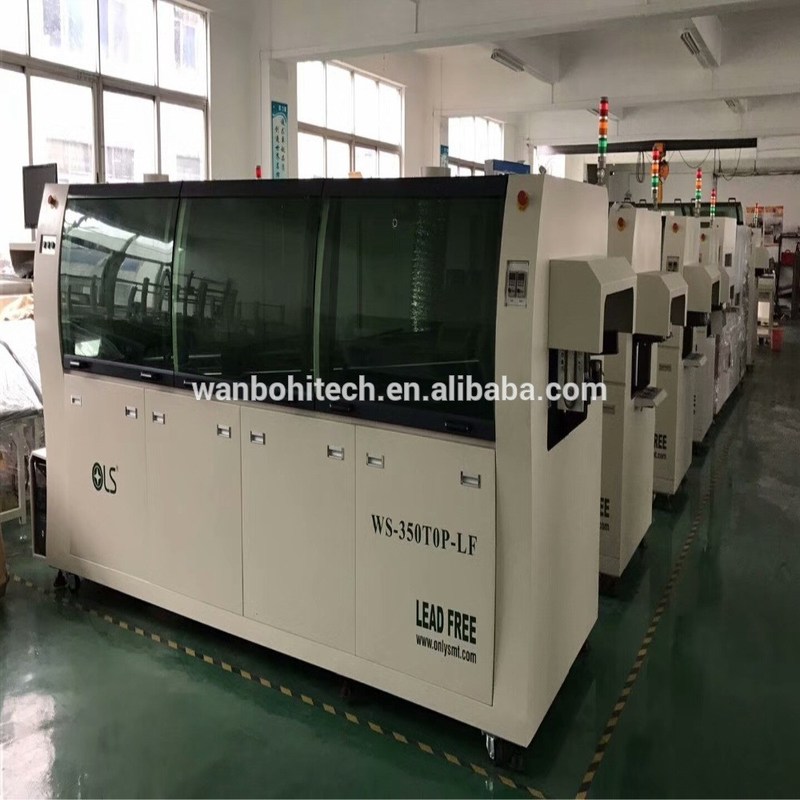

Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances

Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances

Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances
Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances

Large Image :  Lead Free Wave Solder Machine / DIP Soldering Machine For LED Appliances Get Best Price

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: 350PC

Payment & Shipping Terms:

Minimum Order Quantity: 1-4 Pieces
Price: discuss price
Detailed Product Description
Customize: Yes Speed: 0-2.0m/min
Soldering Temperature: 0~350℃ PCB Width Size: Max 350mm
Weight: 1200KG Power Supply: AC380V
Selling Units: Single Item Single Package Size : 450X160X1850 Cm
Single Gross Weight: 1300.0 Kg Package Type: Wooden Box Package
High Light:

wave soldering equipment

,

smt production line equipment

Computer lead-free dual Wave Solder Dip Soldering Plug-in wave soldering machine for LED Appliances





Product name: WS-350PC-LF Computer lead-free dual wave soldering machine

Product Features:


1 open-top style streamlined shell design, beautiful appearance, easy to clean.
2 the use of alloy solder pot materials. Special aluminum rail high strength and hardness, long life.
3 German Siemens PLC + touch screen control technology, to ensure system reliability and stability.
4 lack of rodless air spray device can be automatically adjusted with the width of the PCB, the effective flux conservation economy.
5 tin stove peaks are used stepless electronic frequency control, wave height can be controlled independently.
6 isolated devices, flux fumes from the discharge channel dedicated exhaust and recycling to meet environmental requirements.
7 users can set their own Automatic Turning the date, time, temperature control parameters.
8 with a cooling module (optional cooling fan), temperature compensation module, and a variety of process requirements for lead-free.
9 import mini chemical pump, alcohol cleaning agents, automatic cleaning cycle chain claw.
10 warm-up area modular design, easy to clean and make PCB and component heat evenly and quickly heat up.
11 three sections separate warm-up, fully stimulate the flux activity, get a good soldering results. Direct radiation to heat the bottom of the PCB, heat, long life.
12 patented die-style titanium claw chain, non-stick tin, never deformation, long life, stable and reliable transport PCB.
13 full and transparent viewing window for easy observation of the production and maintenance operations.
14 out of tin stove manual lifting and easy adjustment. The use of back design to prevent misuse damage the machine.
15 transportation system with stepless electronic speed control, PID loop control, the transport speed and stability.
16 can be quickly invoked the stored parameters, operating variables set in the PCB process consistency.
17 over automatically from the wave plate, to minimize the amount of tin oxide.
18 closed-loop temperature control system using PID control, temperature stable and reliable.

19 with short circuit and overcurrent protection system.



products parameters:


PCB Working width                              Max. 350mm
PCB conveyor direction                       760±10mm
PCB conveyor speed                           0-2.0m/min
Preheating zone length                        1500mm
Preheating zone number                      3 stages
Preheating temperature                        0~250℃
Solder volume                                     250-350KG
Solder temperature                             0~350℃
Temperature control type                    PC+PID
Flux storage tank                                Max:5.2L
Power                                                 380V
Power for heating up                          22KW
Power for operation                            7KW
Air supply                                           4-7kg/cm2 12.5L/min
Weight                                                1200KG

Dimensions L*W*H                              4300*1400*1750mm
