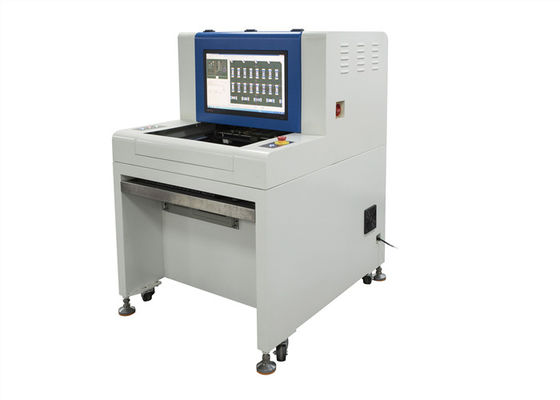

Full Color CCD Camera AOI Inspection Systems AC220V 50 / 60HZ 22 Inch LCD Check Result

Name: Full Color CCD Camera AOI Inspection Systems AC220V 50 / 60HZ 22 Inch LCD Check Result
Brand: WANBO
SKU: X1
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Large Image : Full Color CCD Camera AOI Inspection Systems AC220V 50 / 60HZ 22 Inch LCD Check Result Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	WANBO
Model Number:	X1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	discuss price
Packaging Details:	wooden box package
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Product Name:

AOI

Inspect PCB:

After Reflow Oven

Camera:

Full Color CCD

Power:

AC220V 50/60HZ

High Light:

CCD Camera aoi inspection systems

Megapixel Camera aoi inspection systems

AC220V automated optical inspection systems

aoi inspection systems

Product Specification
Imaging System	Camera	5 megapixel high definition intelligent industrial camera
	Camera resolution	configuration:15um/PixelFOV:38.0mm*30.0mm;Optional:20um,10um
	Light source	RRGB high gray LED light source
Test items	Programming mode	CAD data impor t automatically for component librar y
	After reflux fuenace	Component: Wrong par ts,missing par ts,polarity,deviation,monument,reversal,damage,lc bending,doreign matter, etc Solder joints:less tin,more tin,tin hole,bridging,tin coating,false tin,tin bead,etc
	Minimum paet test	Theoigh the resolution the minimum measuradle is 03015(01005)chip&0.3 pitch IC
	After Wave Soldering	Less tin,more tin,tin hole,false tin,bridge, tin psckage,tin beda,etc
Test PCBA specification	PCBA Size range	5050mm~430330mm
	PCBA Thickness range	0.5~5.0mm
	Maximum PCBA Weight	3kg
	PCBA cur vature	＜5mm Or 2% of diagonal length
	PCBA Height	Top:30mm； Bot:60mm
	Check result output	22 Inch LCD,suppor t output OK/ng buff shunt
hardware configuration Environmental rreqirements	Equipment safety regulation	C o m p l y w i t h C E s a f e t y s t a n d a rd
