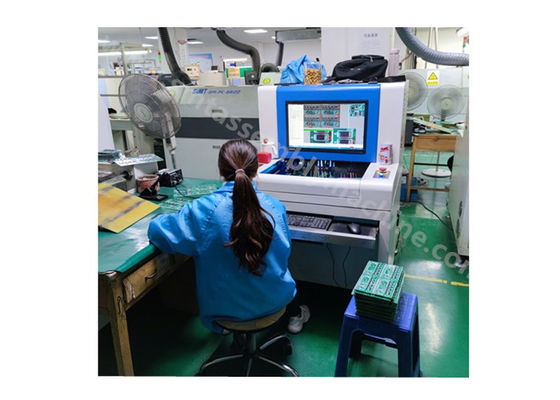

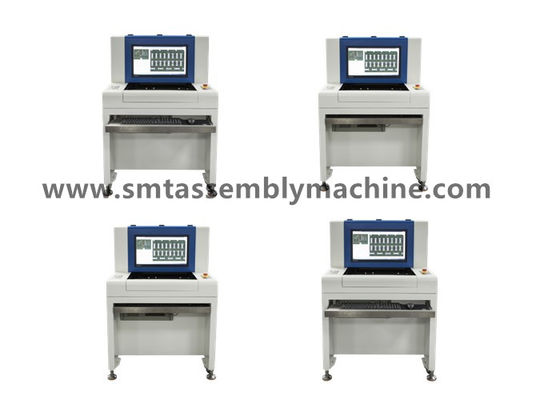

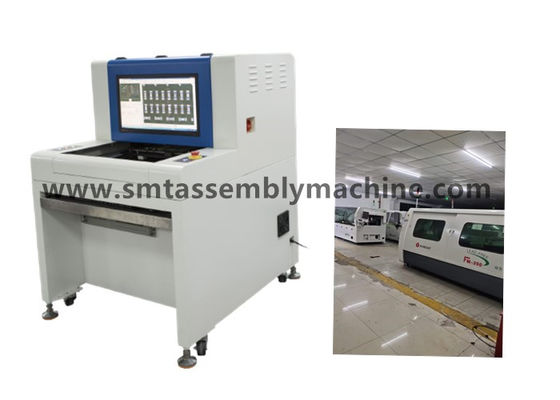

AOI SZ-X3 Versatile optical inspection machine For Measure Welding Effect Of DIP Silver Feet
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Wave Soldering PCBA |
| Detection Method: | Full-color Image Alignment | Detection Coverage: | Glue Spillage, Tin Holes |
| High Light: | AOI optical inspection machine,Versatile optical inspection machine,Versatile AOI Machine |
||
AOI SZ-X3 for products that can measure the welding effect of DIP silver feet
SZ-X3 AOI Inspection Machine detects 0.3pitch chip IC virtual soldering
AOI Inspection Machine SZ-X3 detects chip element 01005 virtual soldering
AOI Inspection Machine SZ-X3 is missing and skewed after wave soldering
AOI SZ-X3 software function CAD data import makes programming convenient
AOI SZ-X3 has a RRGB coaxial LED light source with a direct pass rate of 99%
AOI SZ-X1 detects PCBA component short circuit after wave soldering furnace
Offline aoi inspection Suppor t remote after sales ser vice and online training
Surface mount technology machine mount AOI testing equipment, testing PCBA board
Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales.
1. Production: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment;
2. The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-Link placement machine, domestic platform machine placement machine,
3. Printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.
Scientific light source design
1. Ph-ilips light-emitting diodes
2. The overall processing technology to ensure the accuracy of the light source illumination angle
3. Strict brightness detection
4. Strict aging test, guaranteed service life of 50,000 hours
5. Scientific use of the principle of three-color light, so that the component can present different colors of the body and solder at different angles to achieve accurate detection purposes.
Inspectable items: DIP plug-in after wave soldering: more tin, less tin, tin hole, short circuit, pin not out
Programming mode Manual writing, automatic framing, CAD data import and automatic correspondence libraries
Remote control Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network
Detect the coverage type Offset, less tin, short circuit, pollution, missing parts, skew, standing monument, side standing, flipping, wrong parts, damage, floating height, polarity, virtual soldering, empty welding, glue spillage, tin hole, pin not out, etc
Special features Multiple programs run at the same time, support automatic recall program; 0-359° rotating parts (in 1°)
Minimal part testing 10µm:01005chip & 0.3pitch IC
SPC and process regulation Record test data throughout the process and perform statistics and analysis, any area can view production status and quality analysis, and output Excel, Txt and other file formats
Barcode system Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark)
Server mode Using a central server, several AOI data sets can be centrally managed
operating system Windows7 Professional
Check the result output 22 inch LCD monitor
Device parameters and configuration
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| PCB size range | 50×50mm(Min)～430×330mm(Max) |
| PCB thickness range | 0.3 to 5 mm |
| PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
| Maximum PCB weight | 3KG |
| PCB flex | <5mm or 2% of PCB diagonal length |
| PCB top and bottom net height | PCB Top Side: 30 mm PCB Bottom Side: 60 mm |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
