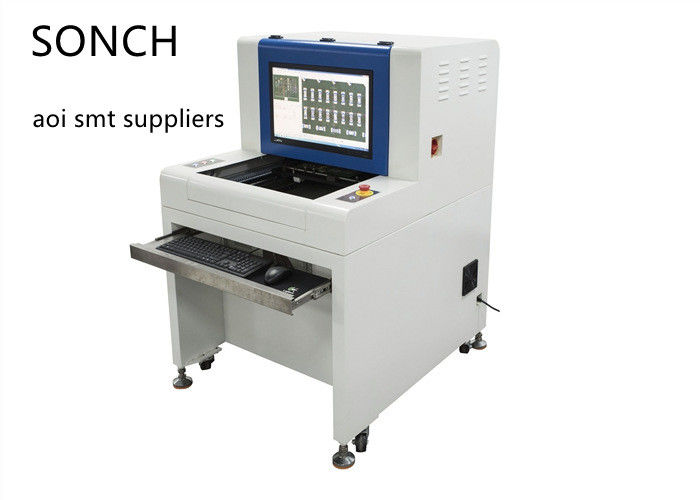

22 Inch LCD Automated Optical Inspection Systems Image Acquisition Motion Control
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI | Inspect PCB: | After Reflow Oven |
|---|---|---|---|
| Camera: | Full Color CCD | Power: | AC220V 50/60HZ |
| High Light: | LCD automated optical inspection systems,CCD Camera automated optical inspection systems |
||
automatic optical inspection equipment
Test PCBA specification
PCBA Size range :50*50mm~430*330mm
Thickness range :0.5~5.0mm
Maximum PCBA Weight :3kg
PCBA cur vature :＜5mm Or 2% of diagonal length
PCBA Height :Top:30mm； Bot:60mm
Check result output :22 Inch LCD,suppor t output OK/ng buff shunt
Imageacquisition and motion control system
Use a top-down shot structure
High definition 10 megapixel industrial lens
High precision ser vo motion system
It is suitable for testing in various production industries
Sonch is equipped with self-developed high brightness LED light source and powerful software algorithm,which can be used for various PCBA process detection requirements
Statistical process control(SPC)
Provide detailed repor ts of various production requirements
When the same error occurs more than onceitwill alarm automati- cally
Automatic calculation of weeklymonthly,quar terly cur ves,PPM char t, etc
