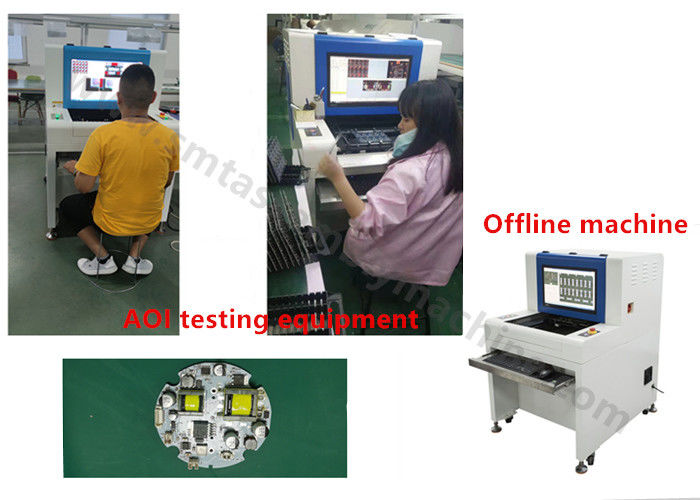

Yamaha YV100Xe SMT Placement Equipment AOI PCBA Board For Detecting SMD NPMD3

SMT patches and inspection equipment

Set Mark

Steps: Find the Mark position on the PCB board, as shown in [Figure 2.5.6.1], put the mark box to the mark position,

then click 'Register' to pop up the registration window (as shown in Figure 2.5.6.2) to adjust the parameters,

click [Registration Criteria] to complete the registration of a Mark. Register another Mark as described above

In normal testing, the position of the same model plate must be in the same position, allowing an offset of 2mm,

in case of mark correction failure, modify the upper limit value and adjust the brightness and

contrast to the OK value range under the condition of determining that the mark point and the mark box are not offset.

Once done, click 'Next' to enter the CAD import

Function parameter
