Product Name: | AOI Testing Equipment | Model: | SZ-X1 |
---|---|---|---|
Warranty: | 365 Days | Condition: | New |
Weight: | 350-400kg | Type: | Testing Automation |
High Light: | TCP IP AOI Inspection Machine,PCBA Products AOI Inspection Machine |

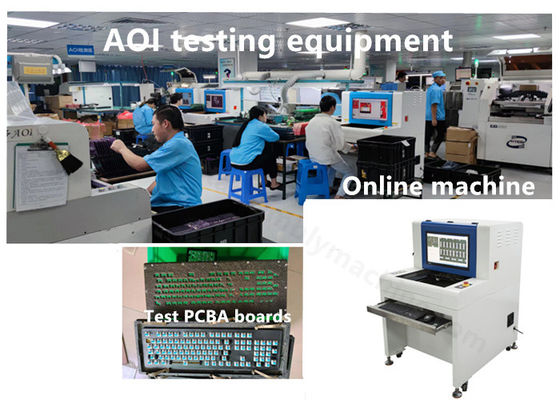

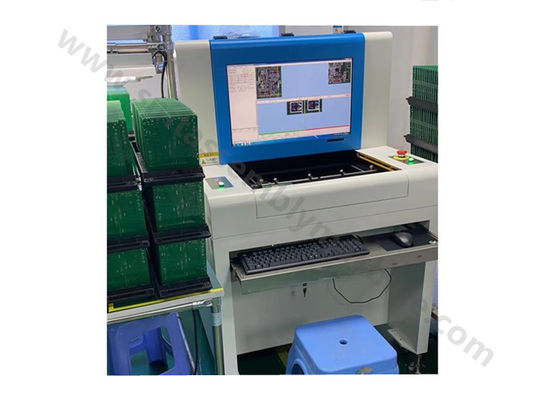

AOI Inspection Machine SMT patches and inspection equipment
CAD import
CAD is automatically imported by higher-level software
After the CAD data is imported, click Reset Fields to reset the names of each field
1) Component Location: The name of the component location of the standard component in the actual coordinate system.
2) X: The abscissa of the standard component in the mechanical coordinate system.SMT Pick And Place Machine
3) Y: The ordinate of the standard component in the mechanical coordinate system.
4) Angle: The angle of the standard component in the mechanical coordinate system.
5) Part number: corresponding to the part number standard in the factory, an important parameter of automatic component linking.
6) Length: Component length.
7) Width: Component width.
[Note] For larger PCB boards, the coordinate positions of all components can be aligned by two components that are far apart (diagonally) by doing so :smd machine smt machines
Click [Lock] (the button name changes to [Set Identification Point]), smt machine
pick and place machinealign the center of the "ten" in the FOV diagram with the center of the component,
then click [Set Identification Point] in the CAD import window, and then set another identification point diagonally in the same way.
After this step, there is no need to use [global offset] to make the component position accurate.
Switch to the thumbnail window when the CAD import is complete:
After setting the CAD data column field names, select "Next" to convert the data according to the actual situation.
(Generally default is sufficient)AOI Inspection Machine
Then select Next to bring up the component image image
Toolbar:
1) Rotate 90 degrees clockwise: The mirror image is rotated 90 degrees clockwise.
2) Rotate 90 degrees counterclockwise: The mirror image is rotated 90 degrees counterclockwise.
3) Rotate 180 degrees: The mirror image is rotated 180 degrees clockwise.
7) Finish: After the component image image is adjusted, load the CAD data into the program.
8) Automatic linking according to common standards: When selected,
the data will be automatically linked to the standard data of the common standard diagram.
Function parameter
SZ-X1 Product Specification | ||
Test PCBA specification |
PCBA Size range | 50*50mm~430*330mm |
Thickness range | 0.5~5.0mm | |
Maximum PCBA Weight | 3kg | |
PCBA cur vature | <5mm Or 2% of diagonal length | |
PCBA Height | Top:30mm; Bot:60mm | |
Check result output | 22 Inch LCD,suppor t output OK/ng buff shunt | |
Extended Function |
Bar code System | Automatic barcode recognition(1D&2D) |
Remote Control |
Remote operstion through TCP/IP |
|
Ser ver Mode |
With the central ser ver,multiple Aol data can be centralized and managed |
|
SPC and Program Control | Recoed and analyze the test data in the whole process,and view the production status and quality analysis through remote control | |
Special funct | Multi connected board multi program detection,a/B side automatic switching program detection function |
