AOI SZ-X3 detects content with more tin less tin tin hole short circuit

Shenzhen Wanbo Hi-Tech Co., Ltd. adheres to the principle of sincerity, simplicity, pragmatism and modesty, adheres to the principle of seeking truth from facts, uses products as the medium, and adopts the new form of creating IP services as the business philosophy, we provide customers with solutions to realize the social value of the company and the team.

The function of AOI testing equipment is to detect PCBA board control defective products.

After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.

After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.

Equipment separation line machine and online machine.

Offline models: X1 detection patch products, X3 detection plug-in products;

Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.

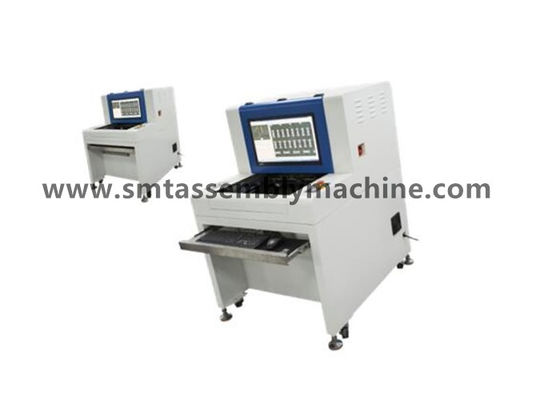

SZ-X1/X3 offline AOI Product introduction

1. AOI principle: use modern optical principles and digital camera technology to shoot the detected object in real time, analyze and process the captured image through computer and special software, and automatically generate detection results.

2. AOI function: AOI effective detection rate: more than 99% (manual detection rate: about 70%);

Reduce labor: 2-4 people/production line, high detection efficiency;

Through the SPC function, the process defects can be accurately counted and can be effectively controlled;

The stability is much higher than that of labor, long-term use, the comprehensive cost can be significantly reduced;

It can enhance the company's comprehensive strength and effectively improve the company's overall competitiveness.

3. AOI advantages:

1) Inspectable items:

After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.

SMT: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.

2) Powerful software features

◆Color extraction, statistical analysis ◆Character recognition (OCR) ◆Color distance analysis

◆IC bridging ◆Black and white specific gravity analysis ◆Luminance analysis

◆ Graphic similarity analysis ◆ CAD data import ◆ SPC statistics function

◆ Operation level management ◆ Barcode scanning ◆ Offline programming

◆CAD data function ◆Automatic identification and detection of the bottom surface ◆ Multi-panel detection

◆ Multi-machine interconnection ◆ Self-built component standard library ◆ It can generate and export daily, weekly and monthly reports

◆Can be connected to multiple maintenance stations

Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
