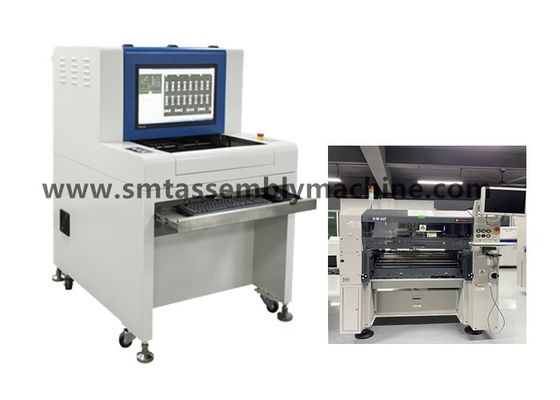

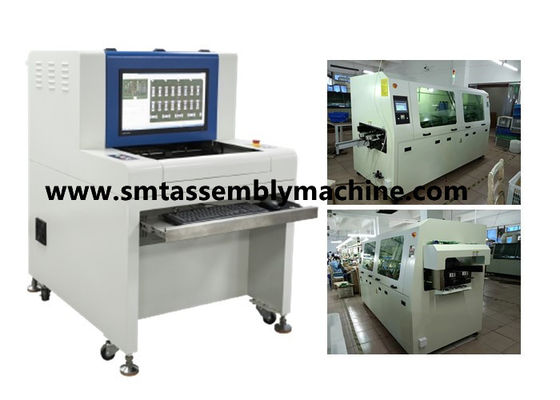

AOI SZ-X3 software function CAD data import makes programming convenient


Shenzhen Wanbo Hi-Tech Co., Ltd. adheres to the principle of sincerity, simplicity, pragmatism and modesty, adheres to the principle of seeking truth from facts, uses products as the medium, and adopts the new form of creating IP services as the business philosophy, we provide customers with solutions to realize the social value of the company and the team.

The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.

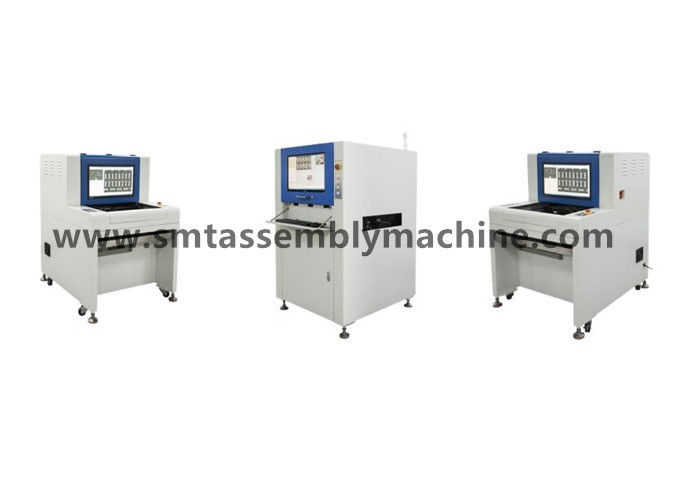

Equipment separation line machine and online machine.
Offline models: X1 detection patch products, X3 detection plug-in products;
Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.

 AOI advantages:
1) Inspectable items:
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
SMT: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.

2) Powerful software features
◆Color extraction, statistical analysis ◆Character recognition (OCR) ◆Color distance analysis
◆IC bridging ◆Black and white specific gravity analysis ◆Luminance analysis
◆ Graphic similarity analysis ◆ CAD data import ◆ SPC statistics function
◆ Operation level management ◆ Barcode scanning ◆ Offline programming
◆CAD data function ◆Automatic identification and detection of the bottom surface ◆ Multi-panel detection
◆ Multi-machine interconnection ◆ Self-built component standard library ◆ It can generate and export daily, weekly and monthly reports
◆Can be connected to multiple maintenance stations
3) Precision mechanical structure design
◆High rigidity machine base, reasonable mechanical center of gravity, small vibration during operation, beautiful and generous appearance
◆Precision screw guide rail, wire rail
◆ Precision automatic fixture, easy and fast loading and unloading PCB
◆Exquisite assembly technology to ensure the stable use and long life of the whole machine.
4) Stable electrical control
◆Servo drive system, stable and mature
◆LS mature and stable motion control
◆EPIX advanced image capture and processing technology
◆OMRON stable various electrical devices, long service life
◆LAAP high-flexibility drag chain cable, the service life can reach 5 million to 8 million times
◆ Circuit stability, easy maintenance, safety.
5) Scientific light source design
◆Philips light-emitting diodes
◆The overall processing technology ensures the accuracy of the light source illumination angle
◆ Strict brightness detection
◆Strict aging test, guaranteed service life of 50,000 hours
◆ Scientific use of three-color light principle, can make the component present different colors of the body and solder at different angles to achieve accurate detection purposes.


Device parameters and configuration


Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
