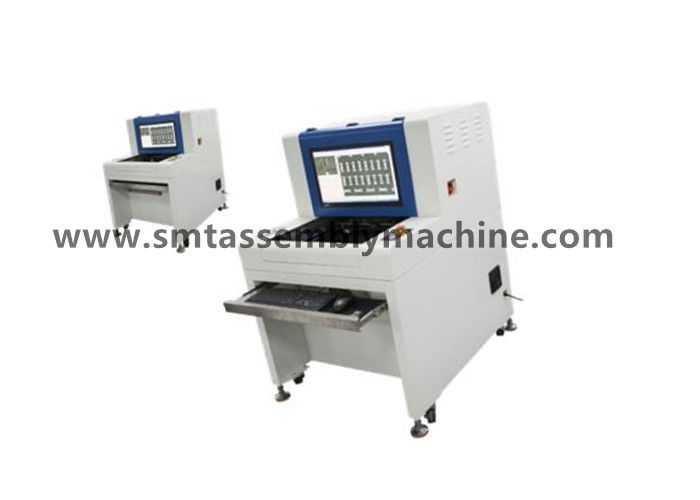

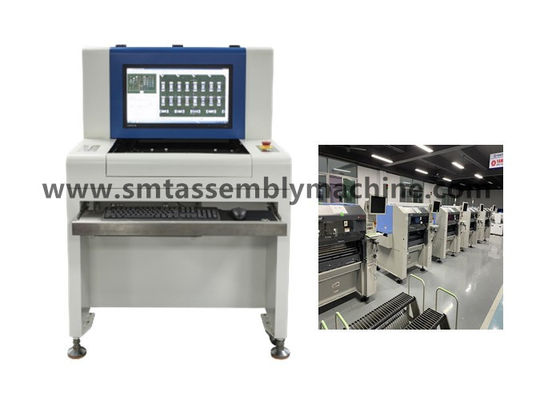

AOI Inspection Machine SZ-X3 detects chip element 01005 virtual soldering
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Inspection Of The Circuit Board After Wave Soldering |
| Detection Method: | Statistical Modeling | Detection Coverage: | Missing Parts, Skewed |
AOI Inspection Machine SZ-X3 detects chip element 01005 virtual soldering
AOI Inspection Machine SZ-X3 is missing and skewed after wave soldering
AOI SZ-X3 software function CAD data import makes programming convenient
AOI SZ-X3 has a RRGB coaxial LED light source with a direct pass rate of 99%
AOI SZ-X1 detects PCBA component short circuit after wave soldering furnace
Offline aoi inspection Suppor t remote after sales ser vice and online training
Surface mount technology machine mount AOI testing equipment, testing PCBA board
The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.
Equipment separation line machine and online machine.

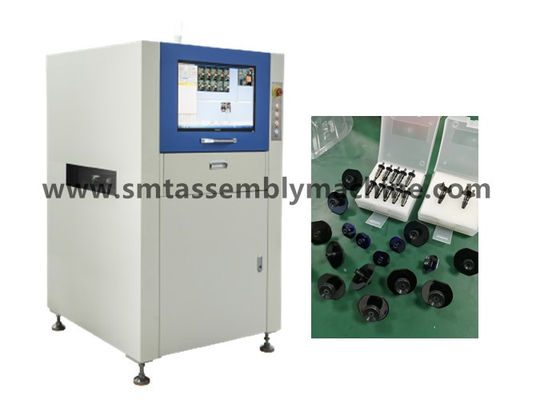

Offline models: X1 detection patch products, X3 detection plug-in products;
Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.
Powerful software functionality
◆ Color extraction, statistical analysis ◆ Character recognition (OCR) ◆ Color distance analysis
◆ IC bridge ◆ Black and white specific gravity analysis ◆ Brightness analysis
◆ Graphic similarity analysis ◆ CAD data import ◆ SPC statistical function
Precision mechanical structure design
◆High rigidity machine base, reasonable mechanical center of gravity, small vibration during operation, beautiful and generous appearance
◆Precision screw guide rail, wire rail
◆ Precision automatic fixture, easy and fast loading and unloading PCB
◆Exquisite assembly technology to ensure the stable use and long life of the whole machine.
Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.
Device parameters and configuration
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Remote control | Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| PCB size range | 50×50mm(Min)～430×330mm(Max) |
| PCB thickness range | 0.3 to 5 mm |
| PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
| Maximum PCB weight | 3KG |
| PCB flex | <5mm or 2% of PCB diagonal length |
| PCB top and bottom net height | PCB Top Side: 30 mm PCB Bottom Side: 60 mm |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
