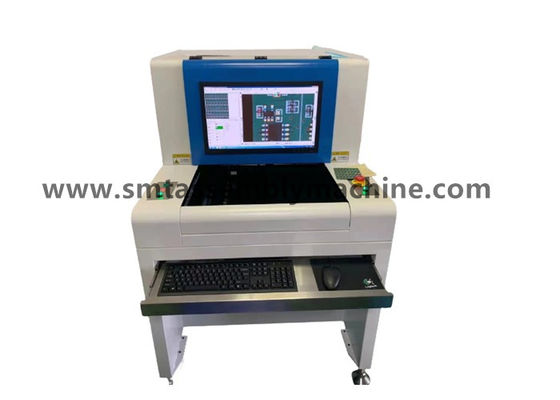

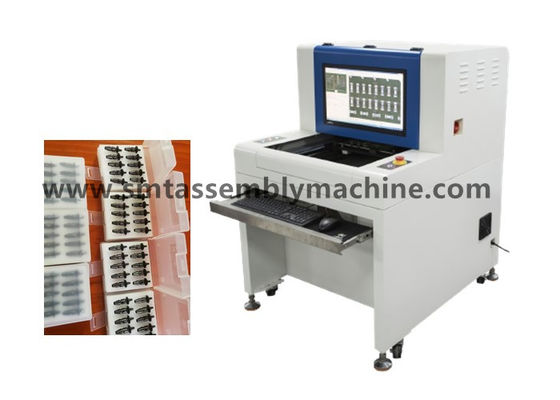

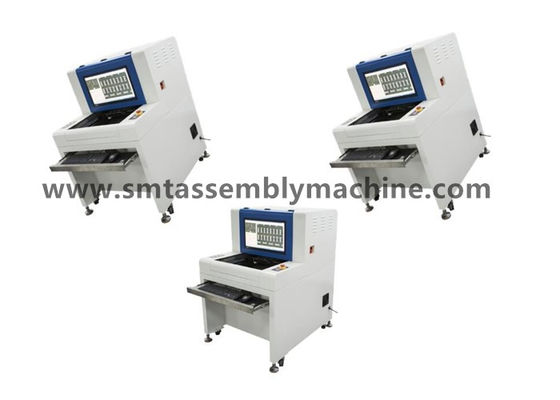

Plug In AOI Inspection Machine DIP Offline SZ-X3 Check PCB Size Max 430×330mm


Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.


The function of AOI testing equipment is to detect PCBA board control defective products.

After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.

After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.

Equipment separation line machine and online machine.

Offline models: X1 detection patch products, X3 detection plug-in products;

Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.

1. AOI principle: use modern optical principles and digital camera technology to shoot the detected object in real time, analyze and process the captured image through computer and special software, and automatically generate detection results.

2. AOI function: AOI effective detection rate: more than 99% (manual detection rate: about 70%);

Reduce labor: 2-4 people/production line, high detection efficiency;

Through the SPC function, the process defects can be accurately counted and can be effectively controlled;

The stability is much higher than that of labor, long-term use, the comprehensive cost can be significantly reduced;

It can enhance the company's comprehensive strength and effectively improve the company's overall competitiveness.

The difference between SMD and SMT of SMT placement machine:
SMD is the abbreviation of Surface Mounted Devices, which means: surface mount device, it is SMT (Surface Mount
Technology) components, including CHIP, SOP, SOJ, PLCC, LCCC, QFP, BGA, CSP, FC, MCM and so on.
Surface mount components were introduced about two decades ago and ushered in a new era. From passive components to active components and integrated circuits,
The end result is a surface mount device (SMD) that can be assembled via pick-and-place equipment.

Device parameters and configuration


Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
