Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
---|---|---|---|
Dimension: | 1070*900*1310mm | Check: | Detect The Bluetooth Headset Board |
Detection Method: | Self-built Component Standard Library | Detection Coverage: | Less Tin, Short Circuit, Pollution |
High Light: | Car Charging Pad AOI Inspection Machine,Pick And Place AOI Inspection Machine,Offline aoi machine for pcb |
The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.
Equipment separation line machine and online machine.
Offline models: X1 detection patch products, X3 detection plug-in products;
Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.

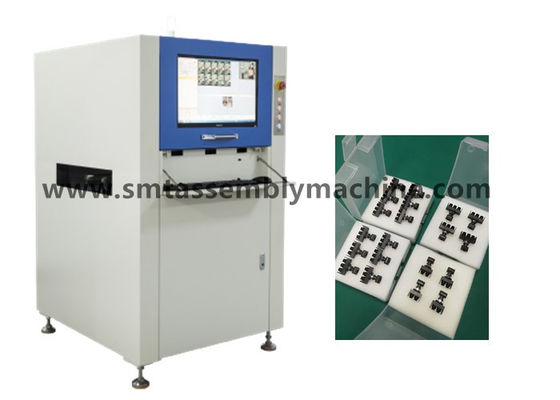

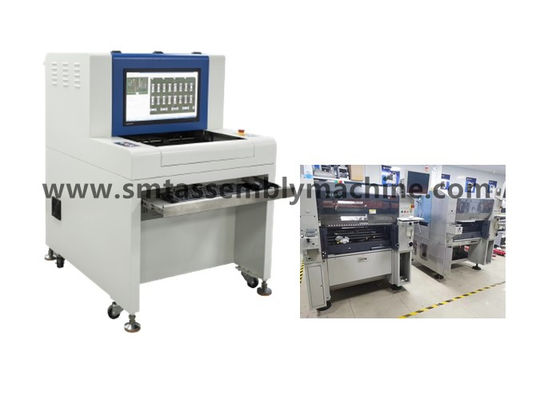

Pick and place equipment JUKI2050 Offline AOI SZ-X3 detects the charging plate
AOI function: AOI effective detection rate: over 99% (manual detection rate: about 70%);
Reduce labor: 2-4 people per production line, high detection efficiency;
Through the SPC function, process defects can be accurately counted and effectively controlled;
The stability is much higher than manual labor, and long-term use can significantly reduce the overall cost;
It can enhance the comprehensive strength of the company and effectively enhance its overall competitiveness.
History of YAMAHA placement machine products
1984: The YAMAHA IM (Intelligent Machinery) Division successfully develops the "placement machine" and starts selling it in Japan
1987: The YM4600S, YM6000S, and YM6000T were exhibited at NEPCON JAPAN, Japan, and the YM1000D went on sale
1988: YAMA PLACEMENT MACHINE OEM "PHILIPS" STARTS OVERSEAS SALES
1989: Visual alignment technology - YM3000V goes on sale
1990: The Hyper series - YM66S, YM84S, YM100VP - went on sale
1993: The YV112, a full-visual recognition device, went on sale
1994: The YVL80 goes on sale
1995: The YV120 goes on sale
1995: The YV112II goes on sale
1995: YV100, YVL88, YV86D, YV100D go on sale
1997: Full visual recognition devices - YV100II, YVL88II, YV64, YV112III and YV64D go on sale
1997: Cumulative production of 5,000 "Yamaha" surface mount machines
1998: Cumulative production of 2,000 "PHILIPS" surface mount machines
1999: Modular high-speed machines – YV100X, YV88X, YV100XT and HSDX – go on sale
2000: Yamaha IM acquires Tenyru, Japan, a famous chip placement machine manufacturer in Japan, and re-establishes a new company, i Pulse, Japan
2000: Modular high-speed machine - YV180X and "precision high-speed printing machine" - YVP - began sales
2001: Cumulative production of 10,000 surface mount machines
2001: Modular high-speed machines, YV100Xg, YV88Xg, YV100XTg, YV180Xg and HSDXg go on sale
2002: Modular minicomputers – THREE M "YT16" and "Lead-free precision high-speed printing machine" – YVP-Xg go on sale
2003: Hybrid Placer, SEMI and SMT hybrid placement equipment - Cube goes on sale
2004: Modular ultra-high-speed machine YG200 goes on sale
2004: Modular ultra-high-speed dispenser - YGD goes on sale 2005: "Modular high-speed machine" - YG100 goes on sale
2005: Modular AOI-YGI goes on sale
2005: The modular ultra-high-precision multifunction machine – YG88 goes on sale
2007: The modular ultra-high-speed placement machine – YG300 goes on sale
2008: The modular high-speed placement machine – YG12 goes on sale
2009: The modular high-precision multifunction machine – YG12F goes on sale
2009: The modular ultra-high-speed placement machine – YS24 & YS24X goes on sale
2012: The YSM40 high-density module placement machine is launched
2013: High-speed dispensing machine - YSD launched
2014: The YCP10 high-performance compact printing machine and the Z:LEX high-performance compact printing machine are launched
2015: The ultra-high-speed placement machine YSM40 is launched
2015: YSM20, Z.LEX officially launched
2016: The world's fastest YSM40R per unit area was released
2017: YSM10, YSM20R officially went on sale.
In 2019, YRM20 placement machine, the top performance ultra-high-speed module placement machine was put on sale.
SZ-X1/X3 Technical parameters of offline AOI optical inspection equipment
Functional Specifications | |
Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
Camera | Full color smart digital camera |
Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV |
light source | High brightness RRGB coaxial ring tower LED light source (color light) |
Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
Remote control | Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network |
Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
Server mode | Using a central server, several AOI data sets can be centrally managed |
operating system | Windows7 Professional |
Check the result output | 22 inch LCD monitor |
System Specifications | |
PCB size range | 50×50mm(Min)~430×330mm(Max) |
PCB thickness range | 0.3 to 5 mm |
PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
Maximum PCB weight | 3KG |
PCB flex | <5mm or 2% of PCB diagonal length |
PCB top and bottom net height | PCB Top Side: 30 mm PCB Bottom Side: 60 mm |
Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
Conveyor height above the ground | 850 to 920 mm |
Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
Device weight | APPROX. 350KG |
Device form factor | 1070×900×1310mm (L×W×H) |
Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
