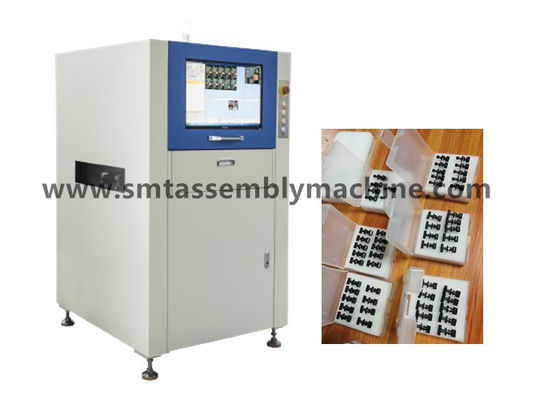

SMT Offline AOI Inspection Machine SZ-X3 Checks USB Fan Board Short Circuit
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Board Fan Circuit |
| Detection Method: | Of The Underside Automatic Recognition Detection | Detection Coverage: | More Tin, Tin Hole, Less Tin |
| High Light: | SMT Offline AOI Inspection Machine,Offline SMT AOI Inspection Machine,Offline aoi pcb machine |
||

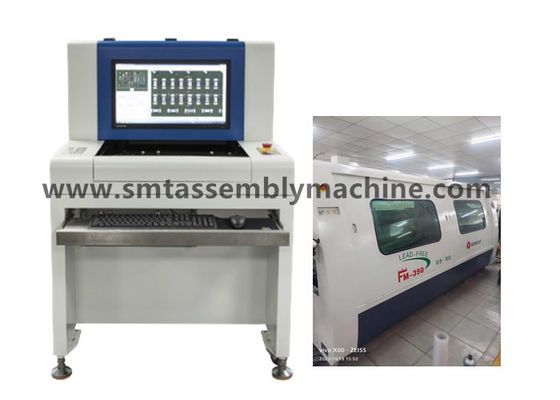

SMT Offline AOI detection device SZ-X3 checks USB fan board short circuit
SMT Offline AOI SZ-X3 inspection equipment checks fan circuit board soldering
Offline AOI SZ-X3 Vision Inspection Car Charging Pad Pick and Place Equipment Yamaha YS20
Pick and place equipment JUKI2050 Offline AOI SZ-X3 detects the charging plate
AOI Inspection Machine SZ-X3 Inspection Rice Cooker PCBA Board Yamaha YS20
Yamaha YS10 SMT machine after AOI SZ-X3 detects mobile phone charger power strip
Yamaha YS24 led pick and place machine AOI SZ-X3 vision Detect keyboard board
Yamaha YS12 SMT machine Offline AOI SZ-X3 detection bluetooth earphone board
SMT Automatic Pick And Place Machine AOI SZ-X3 detection mouse component board
Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.
The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.
YAMAHA full range of placement machines:
YSM40,YSM20,YSM10,S20,S10,YS24,YS12,YS100,YG88,YG300,YG200,YG100 ,YV88X ,YV100X,YV100XE,YV100XG,YV100II
Samsung full range placement machine:
CP45F,SM310,SM320,SM321,SM421,SM411,SM471,SM481,SM482,S1,S2,L2
SZ-X1/X3 Technical parameters of offline AOI optical inspection equipment

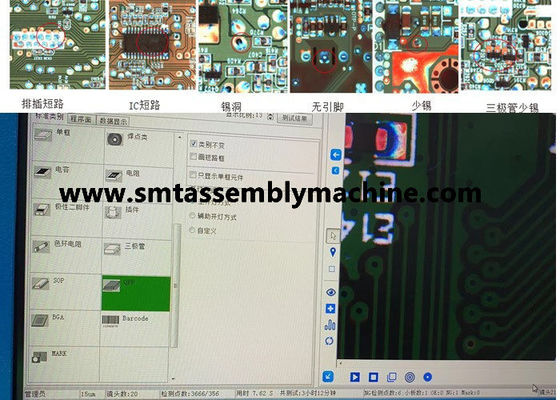

| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Remote control | Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| PCB size range | 50×50mm(Min)～430×330mm(Max) |
| PCB thickness range | 0.3 to 5 mm |
| PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
| Maximum PCB weight | 3KG |
| PCB flex | <5mm or 2% of PCB diagonal length |
| PCB top and bottom net height | PCB Top Side: 30 mm PCB Bottom Side: 60 mm |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
Contact Details
Shenzhen Wanbo Hi-Tech Co., Ltd.
Contact Person: Leo Huang
Tel: 18665307937
Send your inquiry directly to us
