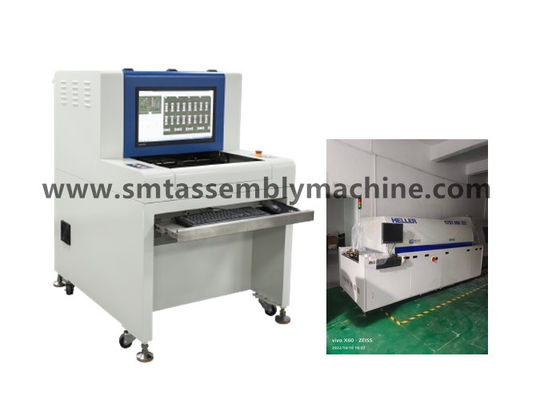

X3 PCBAS AOI Inspection Machine / Equipment Inspects Car Navigation Control Board

Shenzhen Wanbo High tech Co., Ltd. produces AOI test equipment, AI plug-in machine, wave soldering, reflow soldering soldering, connection platform, automatic loader, stacker, corner machine and other equipment;
Sales of second-hand mounters: Matsushita mounters, Yamaha mounters, JUKI mounters, Samsung mounters, domestic EZ pass mounters and domestic platform mounters, printing machines, reflow soldering soldering and other supporting equipment;

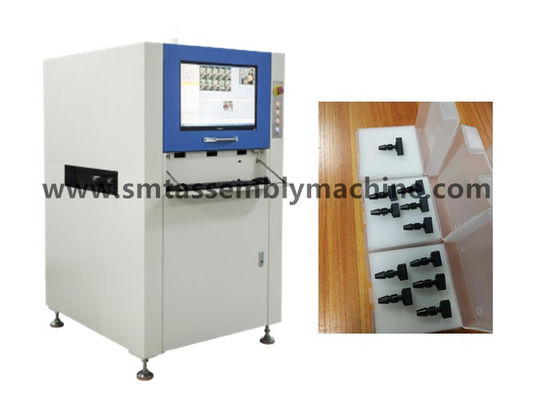

Accessories sales: motors, plates, laser heads, accessories FEEDER, nozzles, etc.

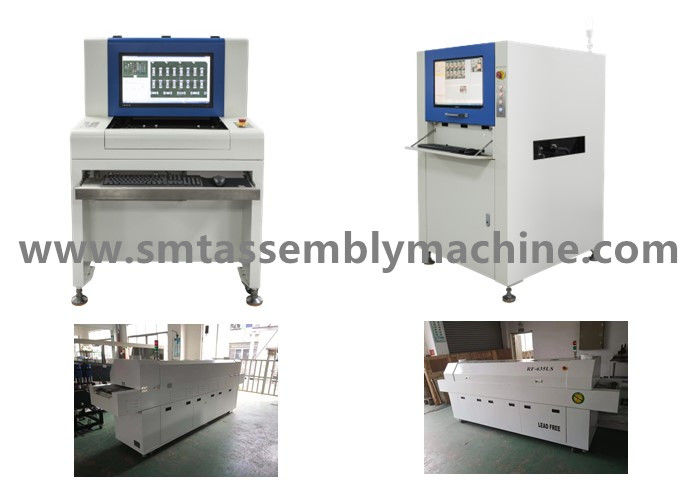

AOI test equipment to detect PCBA board:
More tin, less tin, tin holes, short circuit, no pins, etc.
After SMT furnace: missing parts, misalignment, part error, polarity reversal, fracture, pollution, less tin, more tin, short circuit, virtual soldering, etc.

1.AOI function: AOI effective detection rate: over 99% (manual detection rate is about 70%);
2.Reduce labor: 2-4 people per production line, high testing efficiency;
3.Through the SPC function, process defects can be accurately counted and effectively controlled;
4.AOI principle: Utilize modern optical principles and digital camera technology to take real-time photos of detected objects,
5.Analyze and process the captured images through computers and specialized software, and automatically generate detection results.
6.The stability is much higher than manual labor, and long-term use can significantly reduce the overall cost;

7.YAMAHA full range of placement machines:
YSM40,YSM20,YSM10,S20,S10,YS24,YS12,YS100,YG88,YG300,YG200,YG100 ,YV88X ,YV100X,YV100XE,YV100XG,YV100II

8.Samsung full range placement machine:
CP45F,SM310,SM320,SM321,SM421,SM411,SM471,SM481,SM482,S1,S2,L2

SZ-X1/X3 Technical parameters of offline AOI optical inspection equipment


Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
