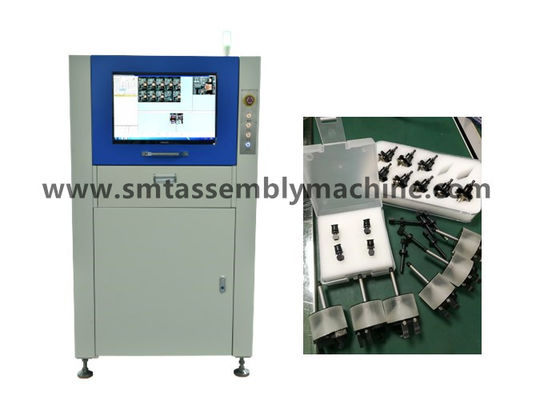

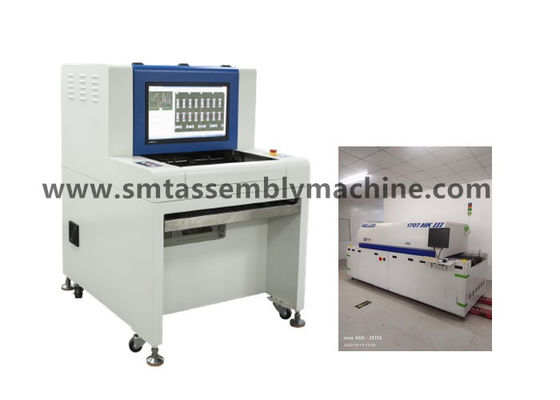

SMT SZ-X3 AOI Inspection Machine Control Quality For Outdoor 100W 200W Power Control Board

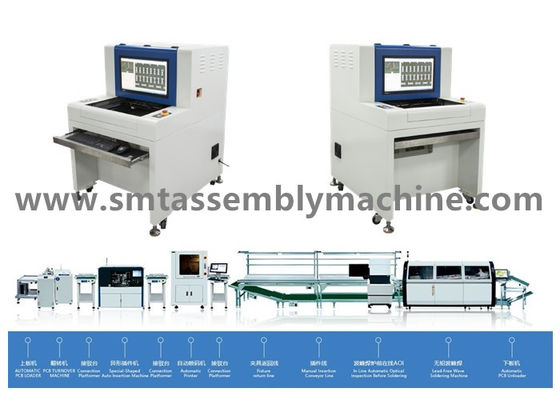

Shenzhen Wanbo High tech Co., Ltd. produces AOI test equipment, AI plug-in machine, wave soldering, reflow soldering soldering, connection platform, automatic loader, stacker, corner machine and other equipment;
Sales of second-hand mounters: Matsushita mounters, Yamaha mounters, JUKI mounters, Samsung mounters, domestic EZ pass mounters and domestic platform mounters, printing machines, reflow soldering soldering and other supporting equipment;
Accessories sales: motors, plates, laser heads, accessories FEEDER, nozzles, etc.

Powerful software features
1.Color extraction, statistical analysis
2.Character recognition (OCR)
3.Color distance analysis
4.IC bridging
5.Black and white specific gravity analysis
6.Luminance analysis
7.Graphic similarity analysis
8.CAD data import
9.SPC statistics function
10.Operation level management
11.Barcode scanning
12.Offline programming
13.CAD data function
14.Automatic identification and detection of the bottom surface
15.Multi-panel detection
16.Multi-machine interconnection
17.Self-built component standard library
18.It can generate and export daily, weekly and monthly reports

Precision mechanical structure design
1.High rigidity machine base, reasonable mechanical center of gravity, small vibration during operation, beautiful and generous appearance
2.Precision screw guide rail, wire rail
3.Precision automatic fixture, easy and fast loading and unloading PCB
4.Exquisite assembly technology to ensure the stable use and long life of the whole machine.

Shenzhen Wanbo Hi-Tech Co., Ltd. adheres to the principle of sincerity, simplicity, pragmatism and modesty, adheres to the principle of seeking truth from facts, uses products as the medium, and adopts the new form of creating IP services as the business philosophy, we provide customers with solutions to realize the social value of the company and the team.

SZ-X1/X3 Technical parameters of offline AOI optical inspection equipment


Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
