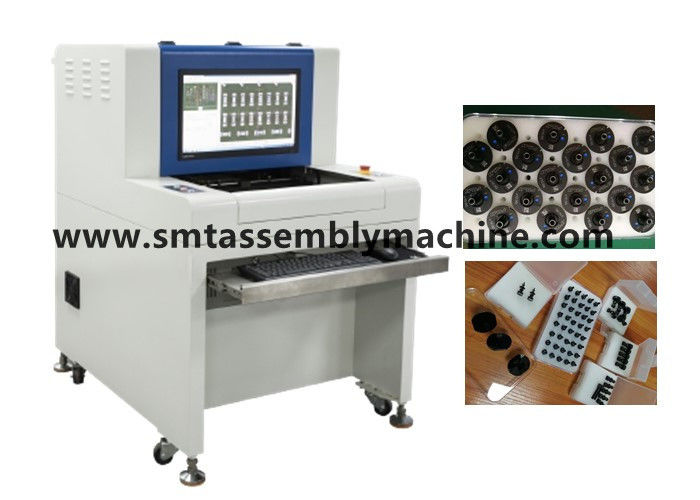

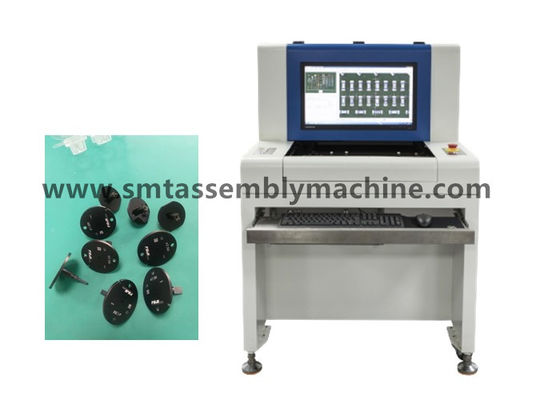

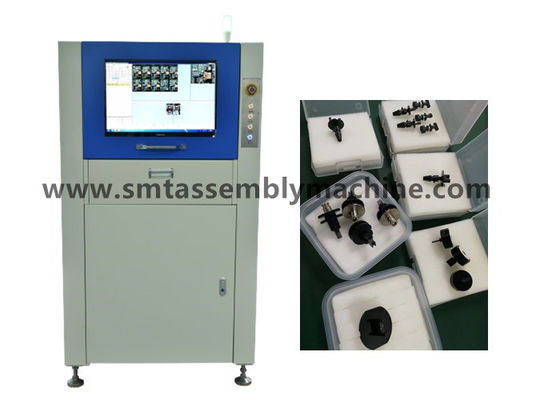

CE Pcb Aoi Machine Test Quality Of Printer PCBA Board
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Check The Quality Of The Printer Control Board |
| Detection Method: | Operation Level Management | Detection Coverage: | Printer Board IC Diode Solder Joint |
| High Light: | CE Pcb Aoi Machine,High Speed Pcb Aoi Machine,High Speed Aoi Machine For Pcb |
||
SMT optical inspection machine AOI test the quality of the printer PCBA board
Outdoor floodlight power control board DIP offline AOI SZ-X3 visual detection Yamaha YS24
DIP AOI Inspection Machine outdoor street lamp high-power power control board
SMT AOI SZ-X3 machine control quality for outdoor 100W 200W power control board
LED lamp power control board offline AOI SZ-X3 quality detection after welding
AOI SZ-X3 optical inspection equipment inspects the car navigation control board
AOI optical testing equipment checks the control quality of the selfie rod plate
Shenzhen Wanbo High tech Co., Ltd. produces AOI test equipment, AI plug-in machine, wave soldering, reflow soldering soldering, connection platform, automatic loader, stacker, corner machine and other equipment;
Sales of second-hand mounters: Matsushita mounters, Yamaha mounters, JUKI mounters, Samsung mounters, domestic EZ pass mounters and domestic platform mounters, printing machines, reflow soldering soldering and other supporting equipment;
Accessories sales: motors, plates, laser heads, accessories FEEDER, nozzles, etc.
Powerful software functionality
1. Color extraction, statistical analysis, SPC statistical function offline programming;
2. Character Recognition (OCR). Operation level management barcode scanning;
3. Color distance analysis, multi machine interconnection, black and white specific gravity analysis
4. IC bridge self built component standard library;
5. Automatic recognition and detection of the bottom surface of brightness analysis;
6. CAD data import function, which can generate and export daily, weekly, and monthly reports;
7. Graph similarity analysis for multi panel detection.
Technical parameters of offline AOI optical inspection equipment
Functional Specifications
Tested circuit board SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection
Detection method Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.)
Camera Full color smart digital camera
Resolution/Visual Range/Speed Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV
Standard: 20μm/Pixel FOV: 32.56mm×24.72mm Detection speed<260ms/FOV
Optional: 15μm/Pixel FOV: 24.42mm X18.54mm Detection speed< 240ms/FOV
Optional: 10μm/Pixel FOV: 16.28mm X12.36mm Detection speed< 220ms/FOV
light source High brightness RRGB coaxial ring tower LED light source (color light)
Programming mode Manual writing, automatic framing, CAD data import and automatic correspondence libraries
Remote control Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network
Detect the coverage type Offset, less tin, short circuit, pollution, missing parts, skew, standing monument, side standing, flipping, wrong parts, damage, floating height, polarity, virtual soldering, empty welding, glue spillage, tin hole, pin not out, etc
Special features Multiple programs run at the same time, support automatic recall program; 0-359° rotating parts (in 1°)
Minimal part testing 10µm:01005chip & 0.3pitch IC
SPC and process regulation Record test data throughout the process and perform statistics and analysis, any area can view production status and quality analysis, and output Excel, Txt and other file formats
Barcode system Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark)
Server mode Using a central server, several AOI data sets can be centrally managed
operating system Windows7 Professional
Check the result output 22 inch LCD monitor
System Specifications
PCB size range 50×50mm(Min)～430×330mm(Max)
PCB thickness range 0.3 to 5 mm
PCB clamping system edge clearance TOP:3.5 mm Bottom:3.5 mm
Maximum PCB weight 3KG
Shenzhen Wanbo Hi-Tech Co., Ltd. adheres to the principle of sincerity, simplicity, pragmatism and modesty, adheres to the principle of seeking truth from facts, uses products as the medium, and adopts the new form of creating IP services as the business philosophy, we provide customers with solutions to realize the social value of the company and the team.
SZ-X1/X3
| NO. | Name | Brand | unit | quantity |
| 1 | guide rail | Taiwan Shangyin | PCS | 4 |
| 2 | Lead screw | Taiwan Shangyin | PCS | 2 |
| 3 | Spindle mount | Taiwan Shangyin | sets | 2 |
| 4 | Motors and drives | Mitsubishi or Panasonic | sets | 2 |
| 5 | camera | Color 5 million pixel camera | sets | 1 |
| 6 | lens | Utron of Japan | PCS | 1 |
| 7 | Sports card | Raysay | sets | 1 |
| 8 | Colored light source | Four-color coaxial light source RGB | sets | 1 |
| 9 | Slot switches | Omron | PCS | 2 |
| 10 | Switching power supply | Taiwan Mingwei | PCS | 1 |
| 11 | Leakage protector | Schneider/CHNT | PCS | 1 |
| 12 | Empty | Schneider/CHNT | PCS | 3 |
| 13 | Intermediate relays | Omron | sets | 2 |
| IPC configuration | Computer | IPC chassis | PCS | 1 |
| display | Lenovo 22" | PCS | 1 | |
| CPU | Intel i5 quad core | sets | 1 | |
| mainboard | Industrial control motherboard | |||
| memory | Kingston 4G | |||
| hard disk | SSD 250G | |||
| Chassis power supply | 350W |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
