Automatic PCB AOI Inspection Machine Inspection LED Display Panel PCBA Board
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | LED Display Panel |
| Detection Method: | Color, Brightness, Graphic Analysis | Detection Coverage: | LED Shows Panel Solder Joints Short Circuits |
| High Light: | PCB AOI Inspection Machine,High Speed AOI Inspection Machine,PCB AOI Machine |
||

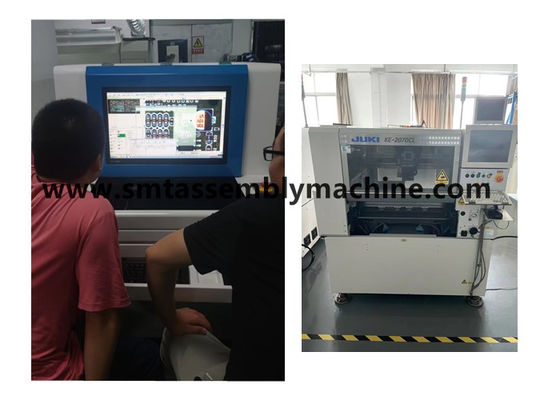

Automatic PCB AOI Inspection Machine Inspection LED Display Panel PCBA Board
Automatic PCB AOI Inspection Machine Inspection LED Display Panel PCBA Board
Automated optical inspection SMT AOI checks the computer monitor power board
Tablet PCBA board visual inspection automated optical inspection aoi SMT patch
SMT optical inspection machine AOI test the quality of the printer PCBA board
Outdoor floodlight power control board DIP offline AOI SZ-X3 visual detection Yamaha YS24
Shenzhen Wanbo High tech Co., Ltd. produces AOI test equipment, AI plug-in machine, wave soldering, reflow soldering soldering, connection platform, automatic loader, stacker, corner machine and other equipment;
Sales of second-hand mounters: Matsushita mounters, Yamaha mounters, JUKI mounters, Samsung mounters, domestic EZ pass mounters and domestic platform mounters, printing machines, reflow soldering soldering and other supporting equipment;
Accessories sales: motors, plates, laser heads, accessories FEEDER, nozzles, etc.
SZ-X1/X3 offline AOI optical detector main component configuration list
Name Brand
guide rail Taiwan Shangyin
Lead screw Taiwan Shangyin
Spindle mount Taiwan Shangyin
Motors and drives Mitsubishi or Panasonic
camera Color 5 million pixel camera
lens Utron of Japan
Sports card Raysay
Colored light source Four-color coaxial light source RGB
Slot switches Omron
Switching power supply Taiwan Mingwei
Leakage protector Schneider/CHNT
Empty Schneider/CHNT
Intermediate relays Omron
LED lamp beads chip lens
Optimal conditions 0.155 sec/chip (23300CPH)
Yamaha placement machine
Suction nozzle
Yamaha accessories
SMT placement machine
Yamaha YSM20
Yamaha YSM10
Yamaha YV100II
Yamaha YV100Xe
Yamaha YV100Xe placement machine
In-machine view
Machine display
SMT patch line
SMT production line equipment display
SMT patches and inspection equipment
High Light: pick and place vacuum nozzle,smt feeder
Panasonic placement machine CM series placement machine and accessories
component placement machine
Medium and high speed placement machine
SMT placement machine
Panasonic placement machine
Yamaha placement machine
Samsung placement machine
JUKI placement machine
Automatic
full-automation
Loader and Unloader fully automatic
Loader Automatic
Full-automatic unloader
Automatic Unloader
2 loading box
Docking machine
PCB buffer PCB
Multi-function PCB buffer
Multi-function PCB buffer machine
Wave soldering machine
Wave soldering machine
Full-automatic plug-in line
DIP plug-in cable DIP
Fully automatic DIP plug-in line solution
DIP plug-in machine DIP
Lead-free double-wave soldering machine

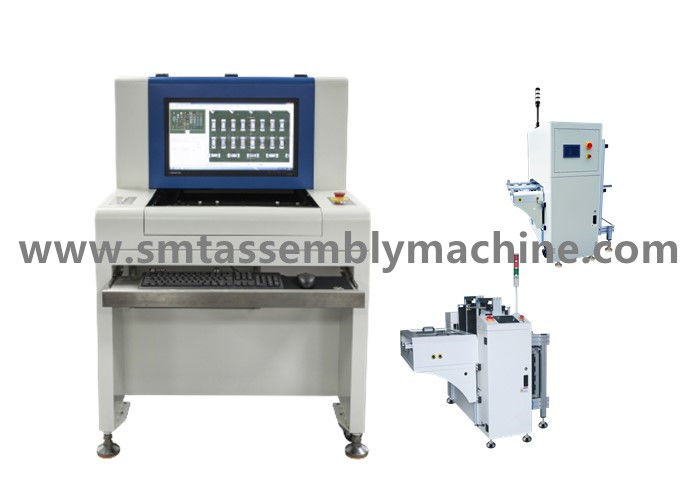

SZ-X1/X3Technical parameters of offline AOI optical inspection equipment
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV Standard: 20μm/Pixel FOV: 32.56mm×24.72mm Detection speed<260ms/FOV Optional: 15μm/Pixel FOV: 24.42mm X18.54mm Detection speed< 240ms/FOV Optional: 10μm/Pixel FOV: 16.28mm X12.36mm Detection speed< 220ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Special features | Multiple programs run at the same time, support automatic recall program; 0-359° rotating parts (in 1°) |
| Minimal part testing | 10µm:01005chip & 0.3pitch IC |

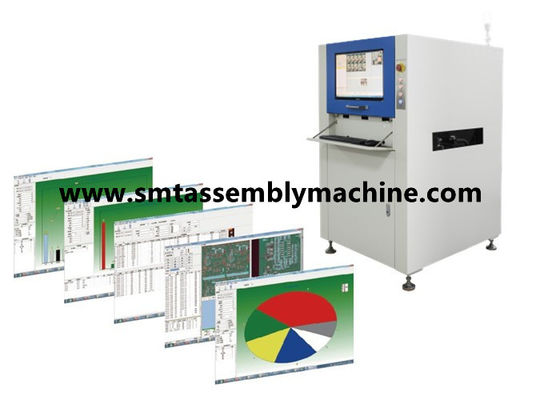

| SPC and process regulation | Record test data throughout the process and perform statistics and analysis, any area can view production status and quality analysis, and output Excel, Txt and other file formats |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
