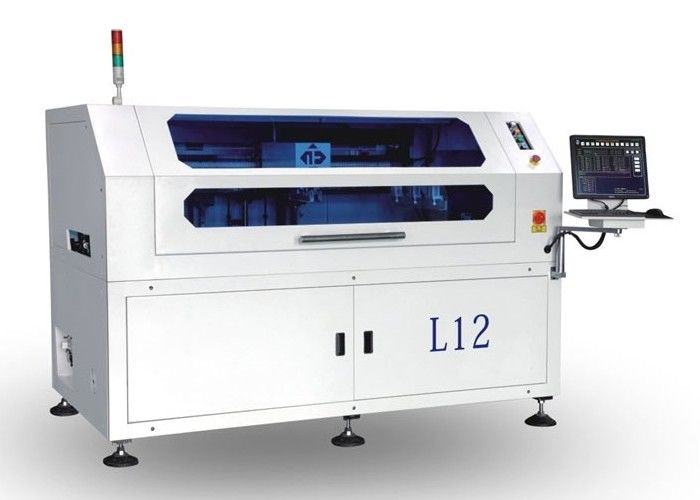

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer
Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer

Large Image :  Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer Get Best Price

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: L12

Payment & Shipping Terms:

Minimum Order Quantity: 1-4 Pieces
Price: discuss price
Packaging Details: wooden package
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Solder Paste Stencil Printer Printing Precision: 0.03mm
Weight: 1500KG Power Supply: 220V
Customize: Yes Printing Area: 1500*750mm
Warranty: 1 YEAR Air Pressure: 4-7kgf/cm2
Single Gross Weight: 450.0 Kg Package Type: WOODEN BOX PACKAGE
High Light:

solder paste screen printer

,

smt stencil printer

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 0

Automatic Screen Printer, stencil printer, solder paste printing machine for LED tube strip light

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 1

SMT pick and place machine

Advantage


1, Arch bridge type suspending direct-connected scraper.
2, Print head with the programmable and suspending self-adjusting stepper motor drive.
3, Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth.
4, Unique belt transmission system avoids being stuck or fall-off of PCB.
5, Programmable motor controls transport speed and puts PCB in the precise position.
6, The unit to clean is separated from CCD camera, which can minimize the load of motor and impulse, improve the positioning precision and speed and extend the service life.
7, With servo motor and lead screw, the direct connection UVW platform is featured with high precision, high rigidity and compact structure.



Specifications

Screen Frames
Min Size 737×300mm
  Max Size 1500×750mm
  Thickness 25~40mm
PCB Min Size 80×50mm
PCB Max Size 1200×350mm
PCB Thickness 0.4~6mm
PCB Warpage <1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/s(Programmable)
Board Location PCB Support System Magnetic Pin/Up-down table adjusted
/support block
  Clamping System Side clamping,vacuum nozzle,
Automation retractable Z pressure
Printer Head Two independent motorised printhead
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15kg
Squeegee Angel 60°/55°/45°
Squeegee Type Stainless steel(standard),plastic
Stencil Separation Speed 0.1~20mm/sec (Programmable)
Cleaning System Dry ,Wet,Vacuum (Programmable)
Table Adjustment Ranges X:±10mm;Y:±10mm;θ:±2°
Solder Paste Inspection 2D Inspection(Standard)
Repeate Position Accuracy ±0.015mm
Printing Accuracy ±0.03mm
Cycle Time <15s(Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6kg/cm2
Power Input AC:220±10%,50/60HZ,3KW
Control Method PC Control
Machine Dimensions 2200(L)×1200(W)×1500(H)mm
Machine Weight Approx:1500kg



Second, the characteristics


Scraper system

* Arch type suspension hanging straight squeegee

* Programmable floating self-adjusting stepper motor to drive print head

* Two-wheeled sliding rail type structure with double-slider to ensure the accuracy and smoothness of the front and rear operation
* Designed for the different front and rear blade pressure requirements and the stability of the lifting, to prevent the solder paste from leaking and the blade has a certain elastic clamping design, the blade pressure, lifting speed, printing speed, printing range are software adjustable, and Providing customers with a variety of demolding methods to adapt to different PCB requirements, providing customers with a good printing control platform;
* Slide type scraper system to improve running stability and extend service life;

Full-closed blade pressure feedback device, constantly monitoring the size of the blade pressure, making the tin more full;



Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 2




2. Steel mesh positioning system

Large and small steel mesh, good and wide applicability

The imported SMC cylinder is used as the pressure steel mesh cylinder.

Embedded scale, never fall off

Segmented fixed steel mesh frame



Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 3



3. Image and optical path system

The X and Y axes are made of Japanese Kuroda high-grinding screw rods, driven by Japanese Panasonic motors at both ends.

Internally add polarizers to automatically and accurately capture MARK points of different shapes

Upper, lower and coaxial three-way uniform light source

Using Toshiba Industrial Camera

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 4


4. PCB transportation and positioning system

Freely select the direction of the board, free to combine

Special craft internal tooth transport belt to prevent card board

Programmable transport speed control for more precise stoppage

Adoptive side clamps and vacuum suction chambers, effectively clamping the PCB to ensure complete flat contact between the PCB and the steel mesh.

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 5




5. Cleaning system

Spray cleaning method

Dry, wet, vacuum wash any combination

Separate cleaning structure

Arc cleaning strip

Washing liquid, and steel mesh cleaning paper can be controlled

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 6



6. Platform calibration system

UVW platform structure, high precision, high rigidity, compact structure

Three-axis linkage, small size and high precision

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 7



7. Base and rack system

Solid shape

Panasonic motor plus Japanese original high-precision grinding screw

High rigidity, high stability left and right symmetrical frame structure

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 8



8. Electrical circuit system

Safe and simple circuit air circuit arrangement

The circuit air path is erected to discharge both sides and the rear of the machine for easy maintenance.

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 9



9. Operating system

Easy-to-learn and easy-to-use user-friendly interface with good human-machine dialogue

Do program files with teaching and navigation functions, prompts at each step

Chinese and English one-button switching

With operation log, fault record analysis and other functions

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 10



10. Other function options

Automatic dispensing function

Automatic scan code function

Automatic tinning function

Closed loop control

Constant temperature and humidity function

Steel mesh plugging function

Other functions can be customized according to the actual needs of customers

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 11Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 12

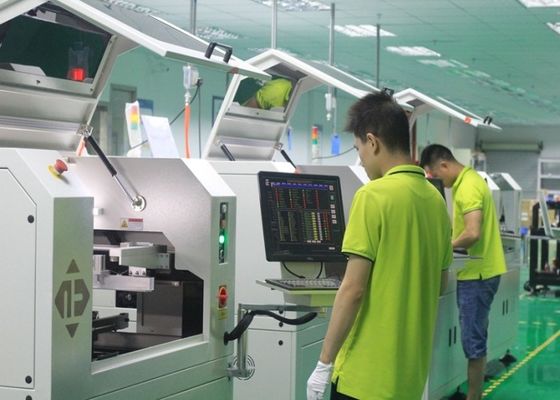

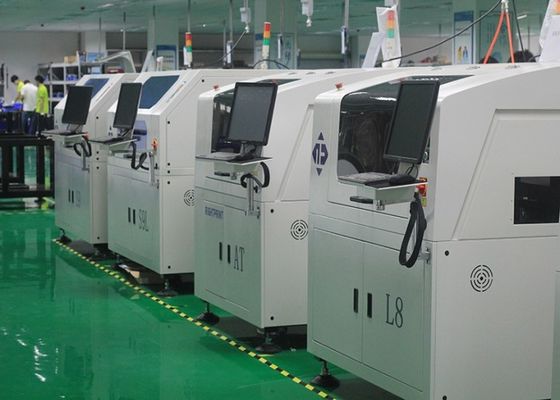

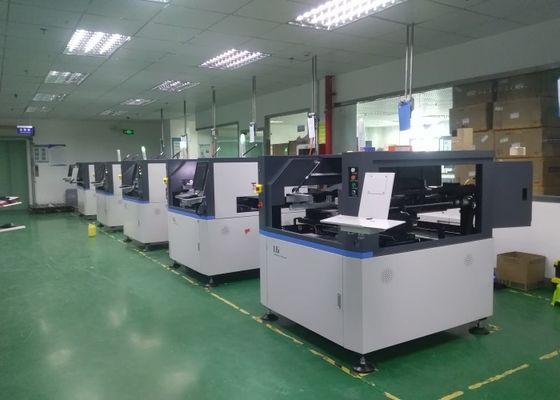

 Factoty picture and customer site.

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 13



Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 14



Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 15

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 16







Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 17

Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 18



Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 19



Compact Solder Paste Screen Printing Machine , Automated SMT Stencil Printer 20

1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.



2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.



3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug.
